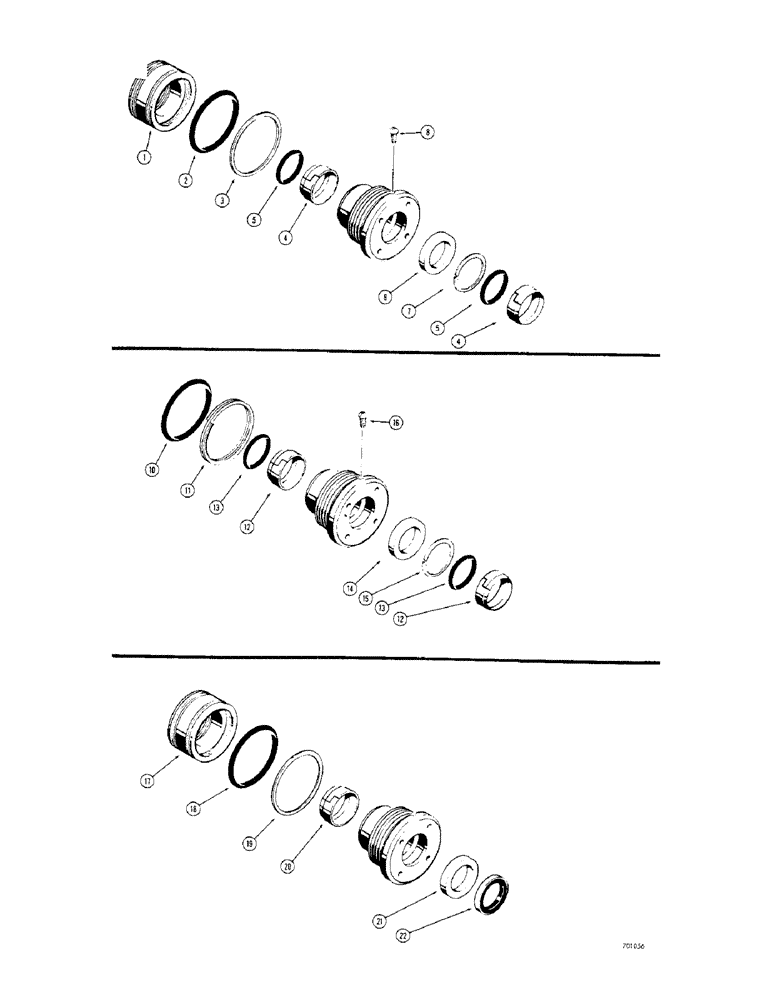

Запчасти Case 310G (288) - CYL. PACKING KITS, USED IN DOZER TILT & LIFT CYLS., 2-1/2" I.D. TUBE 1-1/4" DIA ROD (07) - HYDRAULIC SYSTEM

D37350

X

KIT - complete cylinder packing, gland type (When dealer stock is exhausted, use D42867 kit for service), Includes: Ref. 1 - 8

1шт.

1

D28373

PACKING

- piston

1шт.

2

A28318

O-RING,0.139" Thk x 2.484" ID, -230, Cl 5, 75 Duro

SEAL - "O" ring, gland seal

1шт.

3

D27856

RING

- backup, gland seal

1шт.

4

D27705

WIPER

- piston, rod

2шт.

5

A30915

O-RING,0.139" Thk x 1.359" ID, -220, Cl 5, 75 Duro

SEAL - "O" ring, wiper

2шт.

6

D36968

SEAL,31.72mm ID x 44.58mm OD x 10.69mm Thk

- piston rod

1шт.

7

D28497

RING

- backup, piston rod seal

1шт.

8

187-1031

SELF-TAP SCREW,Pan, 0.164"-32 x 1/4"

SCREW - self-tapping, #8 -32 NC x 1/4"

1шт.

131-15

LOCK NUT,3/4"-16, GB

NUT, LOCK, , Not shown 3/4"-16, GB

1шт.

D42867

GLAND

KIT - gland packing, D42867, Includes: Ref. 10 - 16

1шт.

10

A28318

O-RING,0.139" Thk x 2.484" ID, -230, Cl 5, 75 Duro

SEAL - "O" ring, gland seal, D42867 packing kit

1шт.

11

D27856

RING

- backup, gland seal, D42867 packing kit

1шт.

12

D27705

WIPER

- piston rod, D42867 gland packing kit

2шт.

13

A30915

O-RING,0.139" Thk x 1.359" ID, -220, Cl 5, 75 Duro

SEAL - "O" ring, wiper, D42867 gland packing kit

2шт.

14

D36968

SEAL,31.72mm ID x 44.58mm OD x 10.69mm Thk

- piston rod, D42867 gland packing kit

1шт.

15

D28497

RING

- backup, piston rod, D42867 gland packing kit

1шт.

16

187-1031

SELF-TAP SCREW,Pan, 0.164"-32 x 1/4"

SCREW - self-tapping, #8 - 32 NC x 1/4", D42867 gland packing kit

1шт.

G32295

GASKET KIT

KIT - cylinder packing, G32295, Includes: Ref. 17 - 19, 21 - 22

1шт.

17

D28373

PACKING

- piston, G32295 cylinder kit

1шт.

18

A28318

O-RING,0.139" Thk x 2.484" ID, -230, Cl 5, 75 Duro

SEAL - "O" ring, gland, G32295 cylinder packing kit

1шт.

19

G32129

BACK-UP RING,63.25mm ID x 69.35mm OD x 1.4mm Thk

- backup, gland seal, G32295 cylinder packing kit

1шт.

20

D27705

WIPER

- rod, inner

1шт.

21

D36968

SEAL,31.72mm ID x 44.58mm OD x 10.69mm Thk

- rod, G32295 cylinder packing kit

1шт.

22

D95141

WIPER SEAL

WIPER - rod, outer, G32295 cylinder packing kit

1шт.
