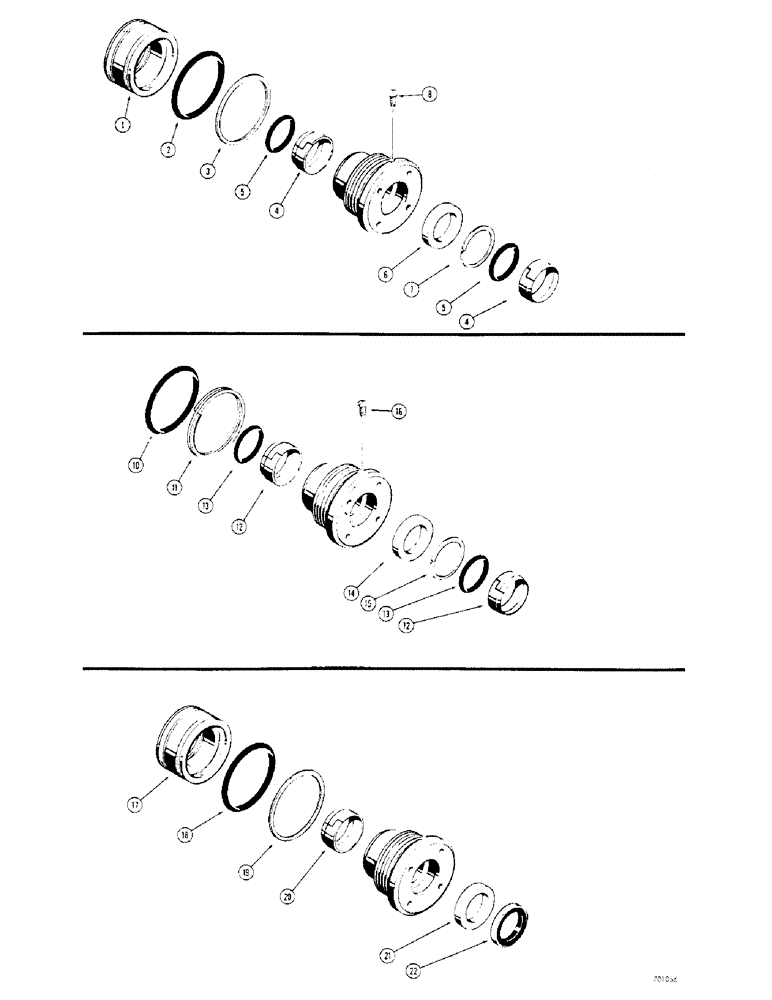

Запчасти Case 310G (282) - CYL. PACKING KITS, USED IN LOADER LIFT CYLS., 3" I.D TUBE & 1-3/4 DIA. ROD, D37355 CYL. PACKING KITS (07) - HYDRAULIC SYSTEM

D37355

KIT - cylinder packing (When stock is exhausted, order 1 - D42872 kit for service - plug 1 - D28374 packing if required)

1шт.

1

D28374

PACKAGE,SERVICE

PACKING - piston

1шт.

2

A30095

O-RING,0.139" Thk x 2.984" ID, -234, Cl 5, 75 Duro

SEAL - "O" ring, gland

1шт.

3

D28049

RING

- backup, gland seal

1шт.

4

D27432

SHIM

- rod

2шт.

5

A14515

O-RING,0.139" Thk x 1.859" ID, -225, Cl 5, 75 Duro

SEAL - "O" ring, wiper (If used)

2шт.

6

D36970

CUP

SEAL - rod

1шт.

7

D28499

RING

- backup, rod seal

1шт.

8

187-1031

SELF-TAP SCREW,Pan, 0.164"-32 x 1/4"

SCREW - self-tapping, #8 - 32 NC x 1/4"

1шт.

9

131-19

LOCK NUT,1"-14, GB

NUT - hex., lock (1" - 14 NF) If used (Not shown)

1шт.

D42872

GLAND

KIT - gland packing, D42872, Includes: Ref. 10 - 15

1шт.

10

A30095

O-RING,0.139" Thk x 2.984" ID, -234, Cl 5, 75 Duro

SEAL - "O" ring, gland, D42872 packing kit

1шт.

11

D28049

RING

- backup, gland seal, D42872 packing kit

1шт.

12

D27432

SHIM

- rod, D42872 gland packing kit

2шт.

13

A14515

O-RING,0.139" Thk x 1.859" ID, -225, Cl 5, 75 Duro

SEAL - "O" ring, wiper (If used), D42872 gland packing kit

2шт.

14

D36970

CUP

SEAL - rod, D42872 gland packing kit

1шт.

15

D28499

RING

- backup, rod seal, D42872 gland packing kit

1шт.

16

187-1031

SELF-TAP SCREW,Pan, 0.164"-32 x 1/4"

SCREW - self-tapping, #8 - 32 NC x 1/4", D42872 gland packing kit

1шт.

G32289

SEAL

KIT - cylinder packing, G32289, Includes: Ref. 17 - 22

1шт.

17

D28374

PACKAGE,SERVICE

PACKING - piston, G32289 cylinder packing kit

1шт.

18

A30095

O-RING,0.139" Thk x 2.984" ID, -234, Cl 5, 75 Duro

SEAL - "O" ring, gland, G32289 cylinder packing kit

1шт.

19

G32122

BACK-UP RING,75.82mm ID x 81.92mm OD x 1.4mm Thk

- backup, gland seal, G32289 cylinder packing kit

1шт.

20

D27432

SHIM

- rod, inner, G32289 cylinder packing kit

1шт.

21

D36970

CUP

SEAL - rod, G32289 cylinder packing kit

1шт.

22

D95143

WIPER SEAL,44.42mm ID x 57.17mm OD x 7.92mm Thk

WIPER - rod, outer, G32289 cylinder packing kit

1шт.
