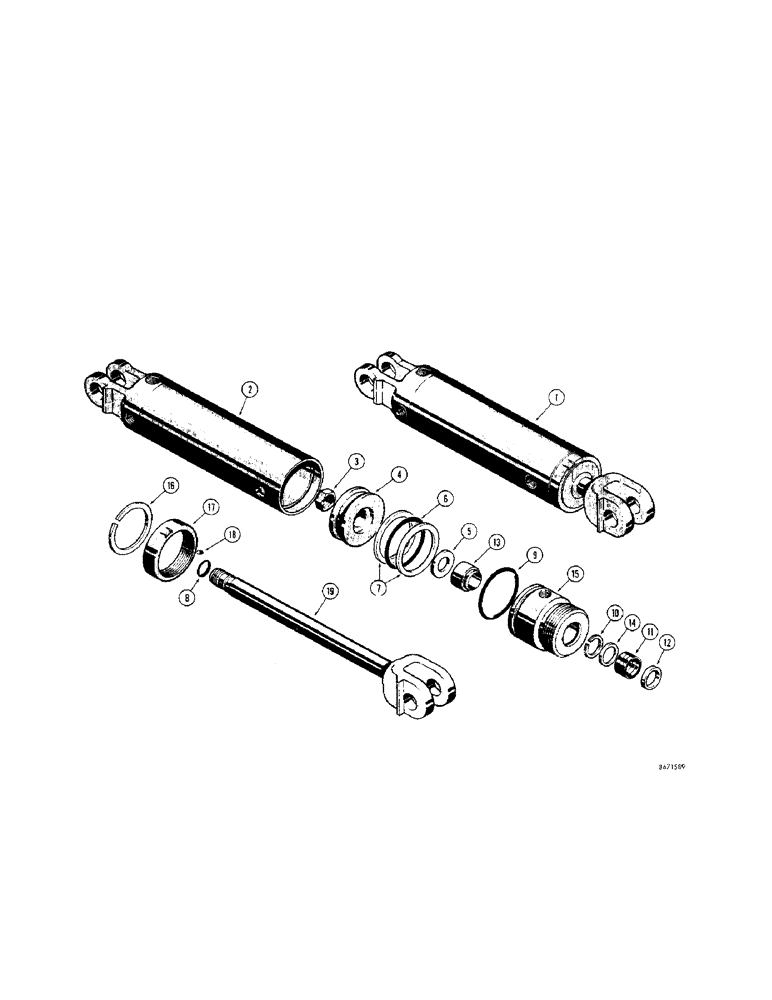

Запчасти Case 310G (274) - ANGLING CYLINDER (POWER ANGLE TILT DOZER) (07) - HYDRAULIC SYSTEM

1

D38726

CYLINDER - angle, 3" dia. x 8" stroke, Includes: Ref. 2 - 19

2шт.

2

D38753

TUBE - cylinder

1шт.

3

131-17

LOCK NUT

NUT - hex. lock, 7/8" - 14 NF

1шт.

4

D38757

PISTON - 3" dia.

1шт.

5

D38758

WASHER

- piston

1шт.

D38807

SEAL PACKAGE

KIT - cylinder packing, Includes: Ref. 6 - 13

1шт.

6

D38755

O-RING,0.21" Thk x 2.6" ID, -334, Cl 5, 75 Duro

SEAL - "O" ring, piston (Outer)

1шт.

7

NSS

NOT SOLD SEPARAT

RING - backup, piston "O" ring

2шт.

8

F62114

O-RING,0.103" Thk x 0.674" ID, -115, Cl 5, 75 Duro

SEAL - "O" ring, piston (Inner)

1шт.

9

A27996

O-RING,0.139" Thk x 2.734" ID, -232, Cl 5, 75 Duro

SEAL - "O" ring, gland

1шт.

10

NSS

NOT SOLD SEPARAT

RING - retaining, rod packing

1шт.

11

NSS

NOT SOLD SEPARAT

PACKING - piston rod

3шт.

12

NSS

NOT SOLD SEPARAT

ADAPTER - piston rod packing

1шт.

13

NSS

NOT SOLD SEPARAT

WIPER - piston rod

1шт.

14

D38761

WASHER

- steel, rod packing

1шт.

15

D38762

GLAND - packing, 3"

1шт.

16

D38743

SNAP RING,3.00", Int, #300

gland 3.00", Int, #300

1шт.

17

D38746

CAP

- gland locking, Includes: Ref. 18

1шт.

18

178-7

SET SCREW,Hex Soc, #8-32 x 1/2"

SCREW - set, socket head cup point #8 - 32 NC x 1/2"

1шт.

19

D38754

ROD

- piston, 1-1/8" dia.

1шт.
