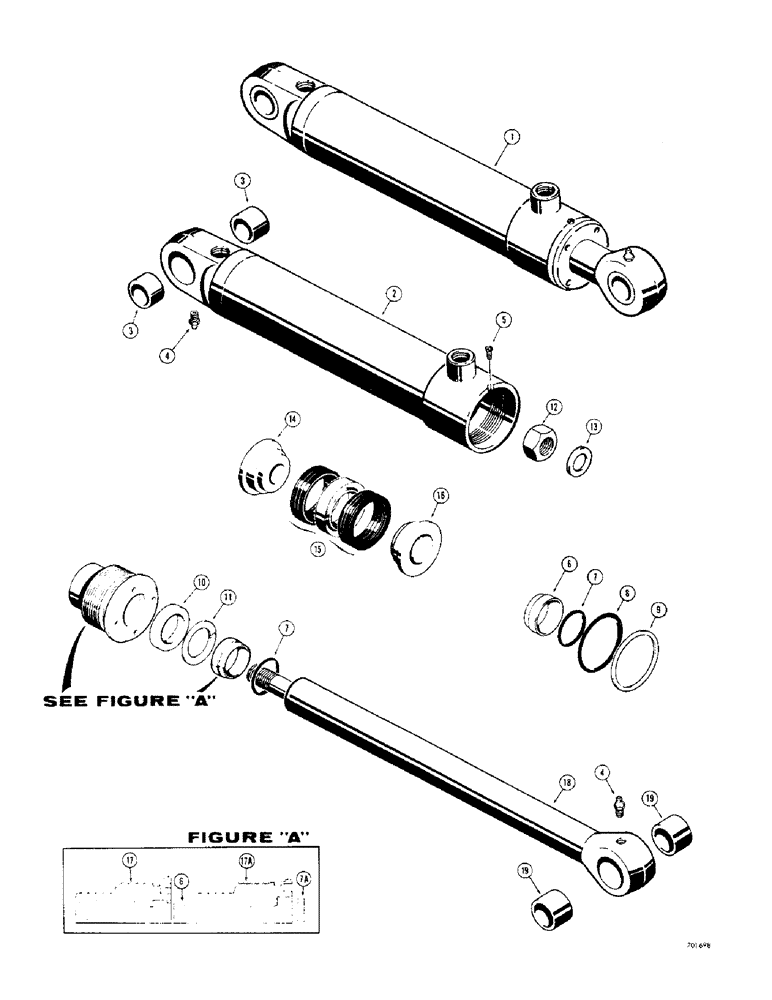

Запчасти Case 310G (270) - ANGLING CYLS (POWER ANGLING DOZER),USES SPLIT SNAP IN OUTER ROD WIPER (07) - HYDRAULIC SYSTEM

1

D28163

CYLINDER - angling, L.H. (3-1/2" I.D. x 9-5/8" stroke), Includes: Ref. 2 - 19

1шт.

These cylinders use D37356 and D42873 packing kits. See figure 290 for kit components.

1шт.

1

D29919

CYLINDER

- angling, R.H. (3-1/2" I.D. x 9-5/8" stroke), Includes: Ref. 2 - 19

1шт.

These cylinders use D37356 and D42873 packing kits. See figure 290 for kit components.

1шт.

2

D28385

TUBE - cylinder, D28163 cylinder, Includes: Ref. 3

1шт.

2

D29925

TUBE - cylinder, D29919 cylinder, Includes: Ref. 3

1шт.

3

30613

BUSHING,38.33mm ID x 44.45mm OD x 17.6mm L

- tube (D28385 and D29925 tubes)

2шт.

4

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - grease, straight (1/8" NPT)

2шт.

5

187-1031

SELF-TAP SCREW,Pan, 0.164"-32 x 1/4"

SCREW - self-tapping, #8 - 32 NC x 1/4"

1шт.

6

D27432

SHIM

- rod

2шт.

7

A14515

O-RING,0.139" Thk x 1.859" ID, -225, Cl 5, 75 Duro

SEAL - "O" ring, wiper (If used)

2шт.

8

G15457

O-RING,0.139" Thk x 3.484" ID, -238, Cl 5, 75 Duro

SEAL - "O" ring, gland

1шт.

9

D27434

BACK-UP RING,88.9mm ID x 95.25mm OD x 2.21mm Thk

- backup, gland seal

1шт.

10

D36970

CUP

SEAL - rod

1шт.

11

D28499

RING

- backup, rod seal

1шт.

12

131-19

LOCK NUT,1"-14, GB

NUT - hex. lock (1/4" - 14 NF)

1шт.

13

G32303

WASHER,26.97mm ID x 47.63mm OD x 3.58mm Thk

- special

1шт.

14

D28367

PISTON

- split, nut end

1шт.

15

D36963

PACKING

- piston

1шт.

16

D28369

PISTON

- split, rod end

1шт.

17

D27431

GLAND

- packing

1шт.

18

D28167

ROD ASSY.

ROD - piston (1-3/4" dia.), Includes: Ref. 19

1шт.

19

30613

BUSHING,38.33mm ID x 44.45mm OD x 17.6mm L

- rod

2шт.

1

G32582

CYLINDER

- angling, R.H. (3-1/2" I.D. x 9-5/8" stroke), uses press in outer rod wiper, Includes: Ref. 2 - 19

1шт.

These cylinders use G32291 cylinder packing kits. For kit components, see figure 290.

1шт.

1

G32581

CYLINDER

- angling, L.H. (3-1/2" I.D. x 9-5/8" stroke), uses press in outer rod wiper, Includes: Ref. 2 - 19

1шт.

These cylinders use G32291 cylinder packing kits. For kit components, see figure 290.

1шт.

2

D29925

TUBE - cylinder, R.H., uses press in outer rod wiper, Includes: Ref. 3

1шт.

2

D28385

TUBE - cylinder, L.H., uses press in outer rod wiper, Includes: Ref. 3

1шт.

3

30613

BUSHING,38.33mm ID x 44.45mm OD x 17.6mm L

- tube (R.H. and L.H.), uses press in outer rod wiper

2шт.

4

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - grease, straight (1/8" NPT), uses press in outer rod wiper

2шт.

5

187-1031

SELF-TAP SCREW,Pan, 0.164"-32 x 1/4"

SCREW - self-tapping, #8 - 32 NC x 1/4", uses press in outer rod wiper

1шт.

6

D27432

SHIM

- rod, inner, uses press in outer

1шт.

7

NSS

NOT SOLD SEPARAT

NOT REQUIRED, uses press in outer rod wiper

1шт.

7a

D95143

WIPER SEAL,44.42mm ID x 57.17mm OD x 7.92mm Thk

WIPER - rod, outer, uses press

1шт.

8

G15457

O-RING,0.139" Thk x 3.484" ID, -238, Cl 5, 75 Duro

SEAL - "O" ring, gland, uses press in outer rod wiper

1шт.

9

G32126

BACK-UP RING,89.28mm ID x 95.38mm OD x 1.4mm Thk

- backup, gland seal, uses press in outer rod wiper

1шт.

10

D36970

CUP

SEAL - rod, uses press in outer wiper

1шт.

11

NSS

NOT SOLD SEPARAT

NOT REQUIRED, uses press in outer rod wiper

1шт.

12

131-19

LOCK NUT,1"-14, GB

NUT - hex., lock (1/4" - 14 NF), uses press in outer rod wiper

1шт.

13

G32303

WASHER,26.97mm ID x 47.63mm OD x 3.58mm Thk

- special, uses press in outer rod wiper

1шт.

14

D28367

PISTON

- split, nut end, uses press in outer rod wiper

1шт.

15

D36963

PACKING

- piston, uses press in outer rod wiper

1шт.

16

D28369

PISTON

- split, rod end, uses press in outer wiper

1шт.

17a

G32117

GLAND

- packing, uses press in outer rod wiper

1шт.

18

D28167

ROD ASSY.

ROD - piston (1-3/4" dia.), uses press in outer rod wiper, Includes: Ref. 19

1шт.

19

30613

BUSHING,38.33mm ID x 44.45mm OD x 17.6mm L

- rod, uses press in outer rod wiper

2шт.
