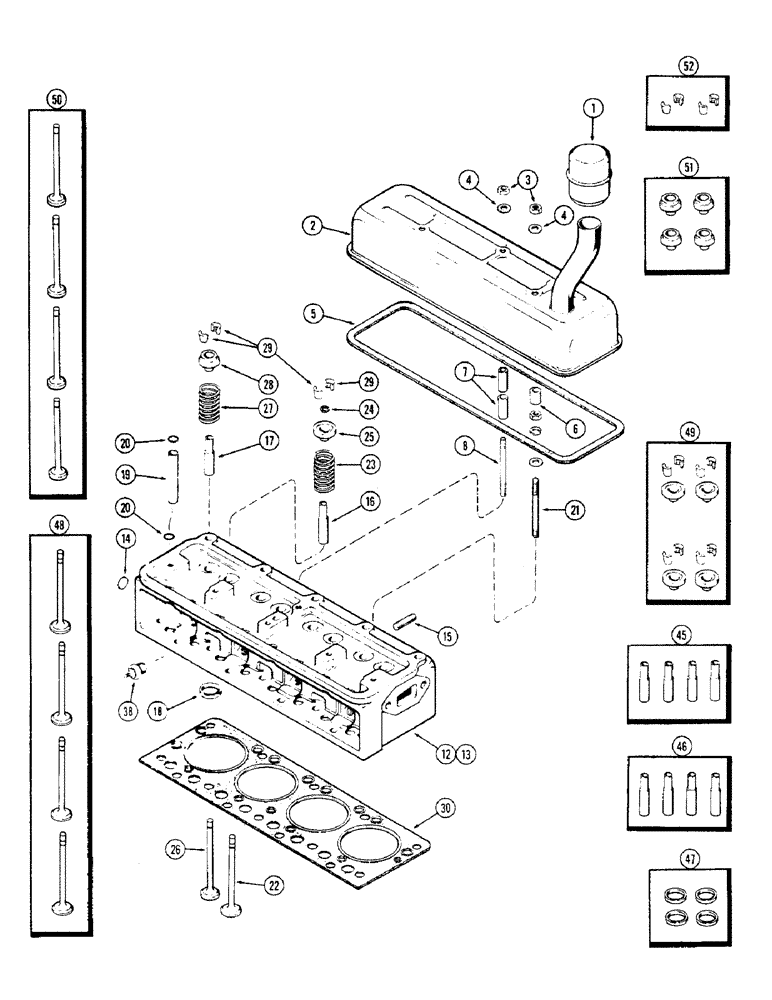

Запчасти Case 310G (008) - CYLINDER HEAD AND COVER, (148B) SPARK IGNITION ENGINE, CASTING NO. G2088, 1ST USED ENG. SN 2638707 (01) - ENGINE

1

A36608

CAP

- oil filler & breather

1шт.

2

G11895

COVER - cylinder head

1шт.

3

25-106

NUT,3/8"-16, G5

- cover stud, 3/8" N.C. hex.

3шт.

4

A29277

WASHER

- plain, cover nut (13/32 x 1 x 1/8")

3шт.

5

A30009

GASKET

-, Serial Range: cover-head

1шт.

6

A30065

SPACER

- cover (17/32" high)

2шт.

7

A29999

SPACER

- cover (19/32" high)

2шт.

8

G49505

STUD

- cover to head (38/" N.C. x 4-5/8")

3шт.

12

G11888

HEAD ASSY - complete (Casting no. G2088), Includes: Ref. 13 - 29

1шт.

13

G11874

HEAD (CYLINDER)

HEAD ASSY - stripped (Casting no. G2088), Includes: Ref. 14 - 20

1шт.

14

41-18

PLUG

- rear (1-1/8" expansion type)

1шт.

15

A29431

STUD

- manifold (3/8" N.C. x 1-3/4")

7шт.

16

NSS

NOT SOLD SEPARAT

GUIDE - intake valve (Order ref. 45)

4шт.

17

NSS

NOT SOLD SEPARAT

GUIDE - exhaust valve (Order ref. 46)

4шт.

18

NSS

NOT SOLD SEPARAT

INSERT - exhaust valve seat (Order ref. 47)

4шт.

19

G11360

TUBE,0.687" OD x 3.687" L

- push rod (3-25/32" high)

8шт.

20

F62114

O-RING,0.103" Thk x 0.674" ID, -115, Cl 5, 75 Duro

"O" RING - tube seal (11/16 x 7/8 x 3/32")

1шт.

21

G49505

STUD

- cover (3/8" N.C. x 4-5/8")

3шт.

22

NSS

NOT SOLD SEPARAT

VALVE - intake (Order ref. 48)

4шт.

23

A30025

SPRING

- intake valve

4шт.

24

G46851

SEAL

- oil, intake valve stem

4шт.

25

NSS

NOT SOLD SEPARAT

RETAINER - intake valve spring (Order ref. 49)

4шт.

26

NSS

NOT SOLD SEPARAT

VALVE - exhaust (Order ref. 50)

4шт.

27

G10004

SPRING

- exhaust valve

4шт.

28

NSS

NOT SOLD SEPARAT

ROTO-CAP - exhaust valve (Order ref. 51)

4шт.

29

NSS

NOT SOLD SEPARAT

LOCK - valve spring retainer (Order ref. 52)

1шт.

30

G46870

CYLINDER HEAD GASKET

-, Serial Range: head-block

1шт.

45

G10269

KIT

GUIDES - intake valve stem (Set of 4)

1шт.

46

A30270

GUIDE

S - exhaust valve stem (Set of 4)

1шт.

47

G11960

KIT

INSERTS - exhaust valve seat (Set of 4)

1шт.

48

G11961

VALVE

S - intake (Set of 4)

1шт.

49

G11927

RETAINER

S - intake valve spring (Set of 4 w/locks)

1шт.

50

G11962

VALVE, ENG EXHAUST,

VALVES - exhaust (Set of 4)

1шт.

51

G11928

CAP

ROTO-CAPS - exhaust valve (Set of 4)

1шт.

52

G11929

LOCK

S - valve spring (Set of 4)

4шт.
