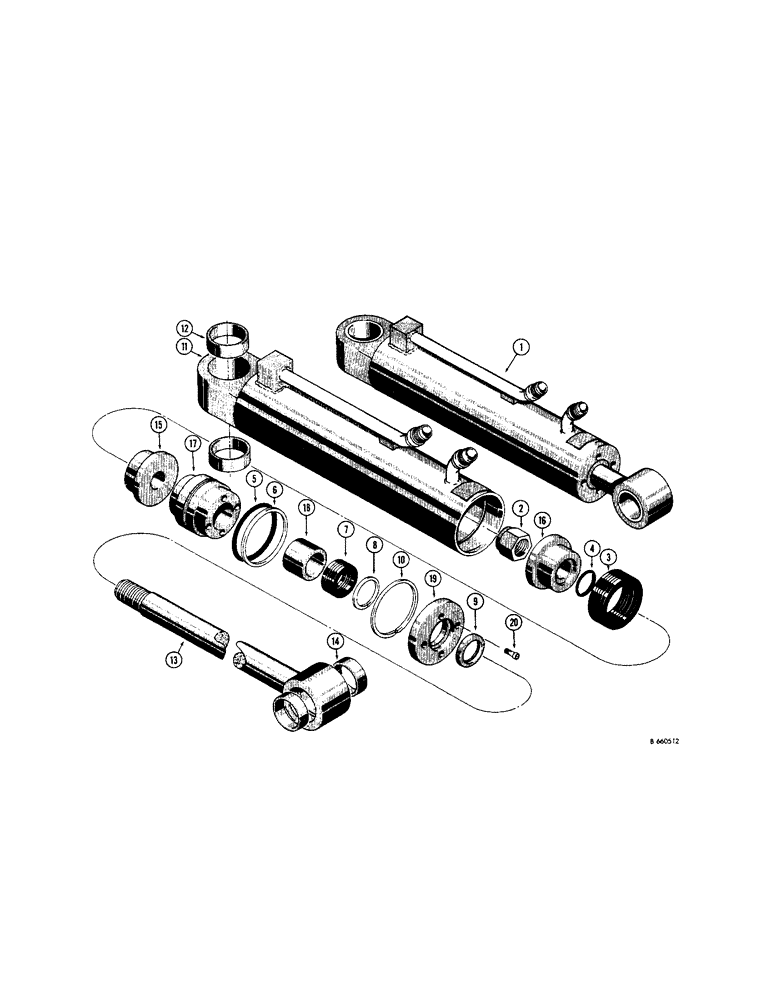

Запчасти Case 310G (264[1]) - D39096 ULRICH CLAM CYLINDER (07) - HYDRAULIC SYSTEM

1

D39096

CYLINDER - hydraulic, clam (3" I.D. x 7-3/4" stroke), Includes: Ref. 2 - 20

1шт.

D39113

KIT

- cylinder, Includes: Ref. 2 - 10

1шт.

2

131-39

NUT,1"-14

NUT - piston retainer (1" - 14 NF)

1шт.

3

D39106

MISC PACKAGING

PACKING - piston

1шт.

4

A7623

O-RING,0.139" Thk x 0.984" ID, -214, Cl 5, 75 Duro

SEAL - "O" ring

1шт.

5

A27996

O-RING,0.139" Thk x 2.734" ID, -232, Cl 5, 75 Duro

SEAL - "O" ring

1шт.

6

D39108

WASHER

RING - backup

1шт.

7

D39104

MISC PACKAGING

PACKING - rod

1шт.

8

D39099

SHIM,.030" Thk

1шт.

9

D39107

SEAL

- rod wiper

1шт.

10

D39111

SNAP RING,#300, 3.188", Int, Spiral

RING - retaining

1шт.

11

D39102

TUBE - cylinder, Includes: Ref. 12

1шт.

12

D39101

BUSHING - tube eye

2шт.

13

D42424

ROD - piston, Includes: Ref. 14

1шт.

14

D39101

BUSHING - rod eye

2шт.

15

D39109

PISTON - half, eye end

1шт.

16

D39110

PISTON - half, nut end

1шт.

17

D39103

GLAND - cylinder

1шт.

18

D39098

BUSHING

1шт.

19

D39097

CAP - cylinder tube

1шт.

20

D39105

HHCS - special

4шт.
