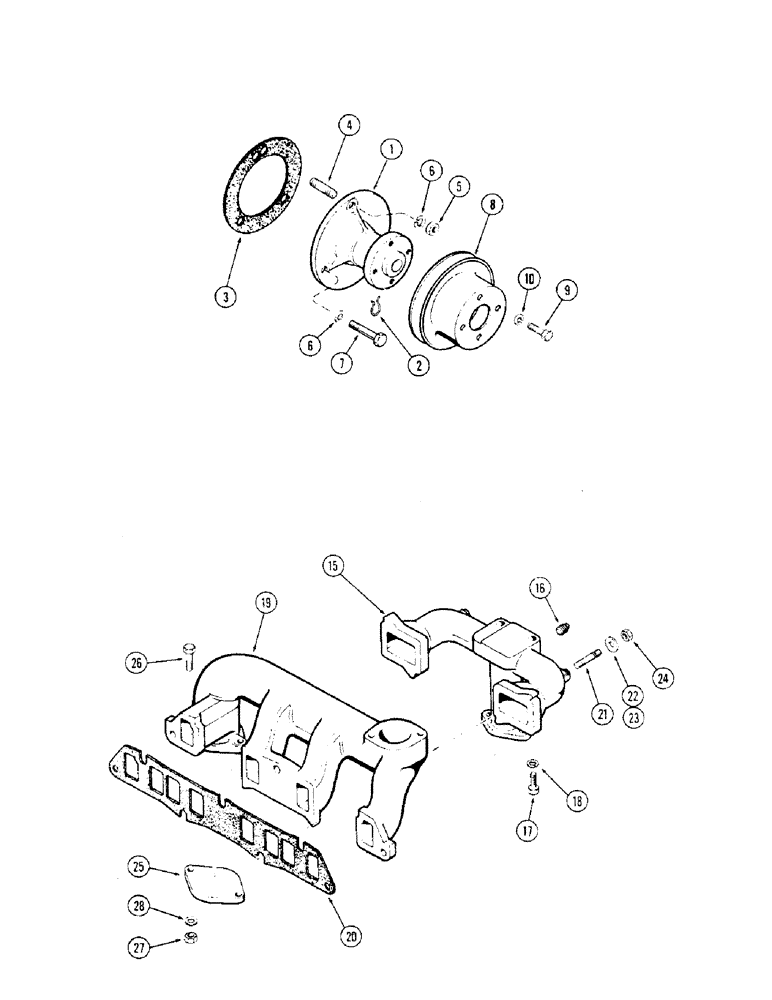

Запчасти Case 310G (006) - WATER PUMP, (148B) SPARK IGNITION ENGINE (01) - ENGINE

1

G11956

WATER PUMP

PUMP ASSY - water, Includes: Ref. 2 and 3

1шт.

1

A48364

REMAN-WATER PUMP

Remanufactured WATER PUMP

1шт.

1

A48325

CORE-WATER PUMP

Return Number, WATER PUMP

1шт.

2

A30067

RING

RING - retainer

1шт.

3

A38083

GASKET

GASKET -, Serial Range: pump-cover

1шт.

4

A29433

STUD

STUD - pump to cover (3/8" N.C. x 1")

1шт.

5

25-106

NUT,3/8"-16, G5

NUT - 3/8" N.C. hex

1шт.

6

193-30

LOCK WASHER,Int Tooth, 3/8"

WASHER, LOCK, Int Tooth, 3/8"

3шт.

7

13-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

BOLT, Hex, 3/8"-16 x 3/4", G5, Full Thd

1шт.

7

13-644

BOLT,Hex, 3/8" - 16 x 2-3/4", Gr 5

BOLT - 3/8 x 2-3/4" N.C. hex.

1шт.

8

G11339

PULLEY

PULLEY - drive belt

1шт.

9

13-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

BOLT, Hex, 5/16"-18 x 3/4", G5, Full Thd

4шт.

10

92-5

LOCK WASHER,5/16"

LOCK WASHER, 5/16"

4шт.

15

A37172

MANIFOLD

MANIFOLD - intake

1шт.

16

221-1012

DRAIN PLUG,Sq Hd, 1/4"-18 NPTF

PLUG - pipe, 1/4" sq. hd., manifold

1шт.

17

413-632

BOLT,Hex, 3/8" - 16 x 2", Gr 5

BOLT, , Manifold Hex, 3/8"-16 x 2", G5

2шт.

18

92-6

LOCK WASHER,3/8"

LOCK WASHER, , manifold 3/8"

2шт.

19

G2042

MANIFOLD

MANIFOLD - exhaust

1шт.

20

A30030

GASKET

GASKET -, Serial Range: manifold-head

1шт.

21

A29431

STUD

STUD - manifold to head (3/8" N.C. x 1-3/4")

7шт.

22

A30058

WASHER

WASHER - plain (13/32 x 7/8 x 1/8"), manifold

4шт.

23

80680

LOCK WASHER,3/8 0.381 CST ZND

WASHER, LOCK, , Manifold 3/8"

3шт.

24

131-903

NUT,3/8"-16

NUT - 3/8" N.C. hex. (Seez-Pruf), manifold

7шт.

25

A38188

PLATE

COVER - exhaust opening, manifold

1шт.

26

13-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

BOLT - 3/8 x 1-1/2" N.C. hex., manifold

2шт.

27

131-903

NUT,3/8"-16

NUT - 3/8" N.C. hex (Seez-Pruf), manifold

2шт.

28

192-25

LOCK WASHER,5/8"

WASHER - plain (13/32 x 13/16 x 5/64"), manifold

2шт.
