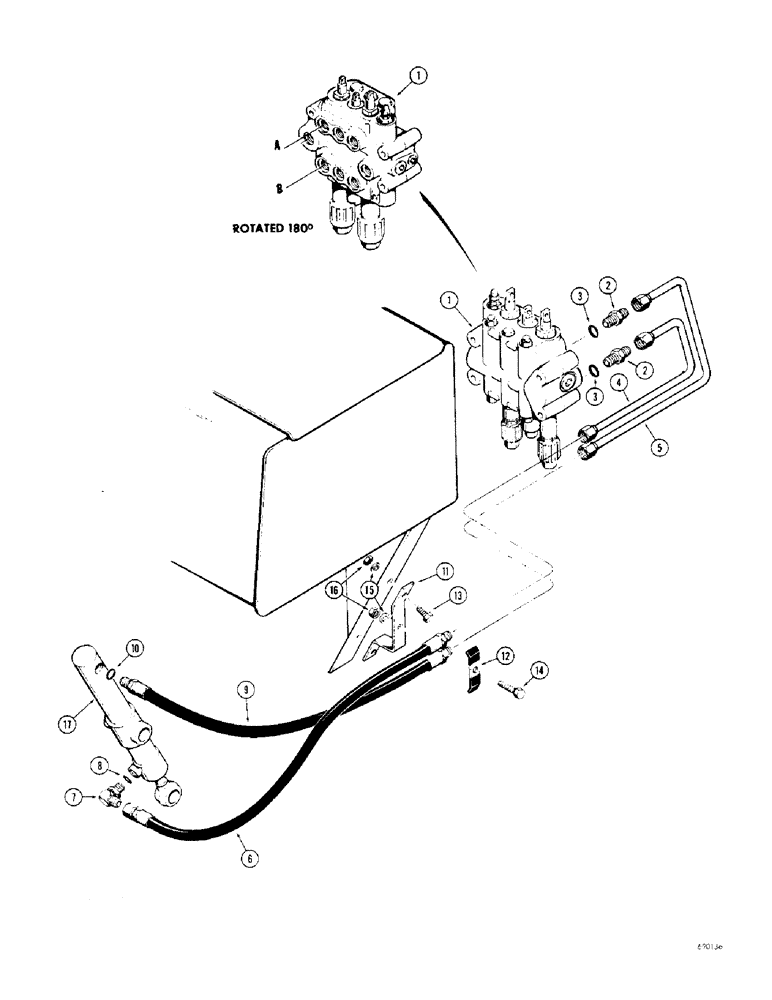

Запчасти Case 310G (242) - RIPPER HYDRAULICS, (MODELS WITHOUT DIVERSION VALVE) (07) - HYDRAULIC SYSTEM

1

REF

INSTRUCTION

VALVE - control, hydraulic (Parker VDP 12) see figures 172 thru 178 for proper valve

1шт.

2

218-5062

HYD CONNECTOR,7/8"-14, 37 Degree x 7/8"-14, O-Ring

CONNECTOR - male, Includes: Ref. 3

2шт.

3

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk

1шт.

4

D33511

TUBE - lower control valve port to ripper cylinder - rod end

1шт.

5

D33513

TUBE - upper control valve port to ripper cylinder - closed end

1шт.

6

D23030

HOSE

- lower control valve port to ripper cylinder - rod end (36- 1/2" long)

1шт.

7

R20839

FITTING

ELBOW - special, Includes: Ref. 8

1шт.

8

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk

1шт.

9

D33516

HOSE ASSY.

HOSE - valve to cylinder - closed end (27" long) used with D31185 cylinder, Includes: Ref. 10

1шт.

9

D52261

HOSE

- valve to cylinder - closed end (32" long) used with G32480 cylinder, Includes: Ref. 10

1шт.

10

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk

1шт.

11

D38331

BRACKET - mounting, hose clamp

1шт.

12

D33316

CLAMP

PLATE - clamp, hose

1шт.

13

13-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

2шт.

14

13-532

BOLT,Hex, 5/16" - 18 x 2", Gr 5

2шт.

15

92-5

LOCK WASHER,5/16"

med sect. 5/16"

3шт.

16

9635082

NUT,5/16" - 18, Gr 5

- hex. (5/16" - 18 NC)

3шт.

17

REF

INSTRUCTION

CYLINDER - ripper (See figures 266(1) and 267A for cylinders)

1шт.
