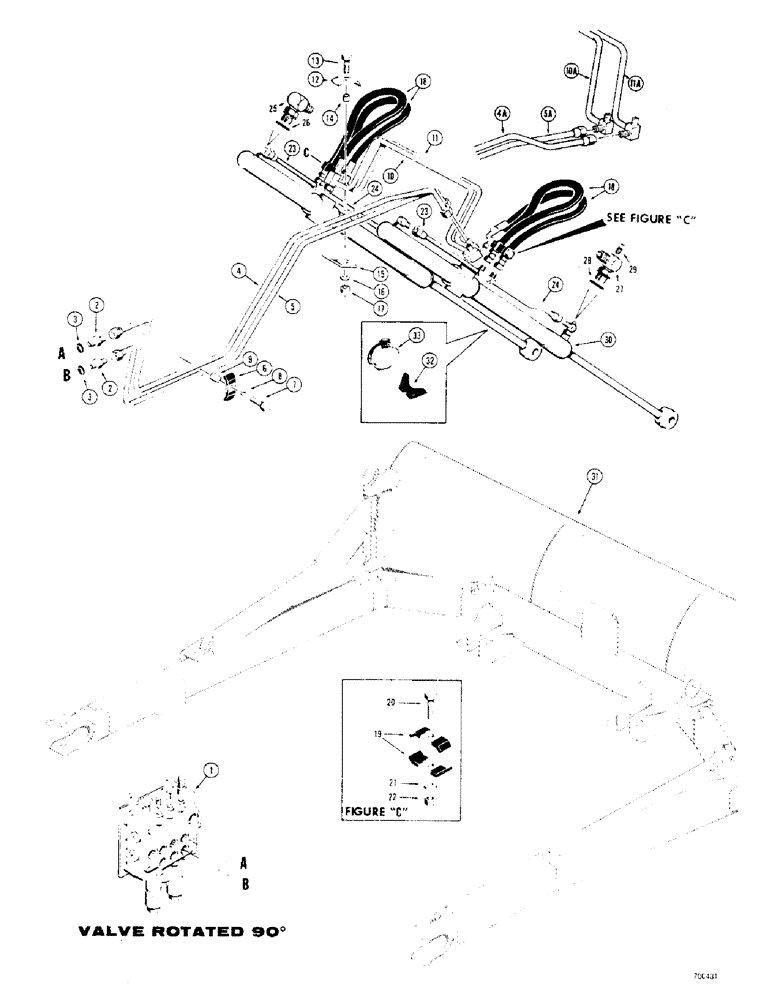

Запчасти Case 310G (218) - DOZER HYDRAULICS (LIFT CIRCUIT) (07) - HYDRAULIC SYSTEM

1

REF

INSTRUCTION

VALVE - control, hydraulic (Parker VDP 12) see figures 174 thru 178 for proper valves

1шт.

2

218-5062

HYD CONNECTOR,7/8"-14, 37 Degree x 7/8"-14, O-Ring

CONNECTOR - male, straight, Includes: Ref. 3

2шт.

3

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk

1шт.

4

D36073

TUBE - at valve, Late Production (72 degree bend at manifold tube)

1шт.

4a

D33906

TUBE - at valve, Early Production (27 degree bend at manifold tube)

1шт.

5

D36075

TUBE - at valve, Late Production (72 degree bend at manifold tube)

1шт.

5a

D33904

TUBE - at valve, Early Production (17 degree bend at manifold tube)

1шт.

6

D33316

CLAMP

PLATE - clamp, tube

1шт.

7

13-520

BOLT,Hex, 5/16" - 18 x 1-1/4", Gr 5

HHCS - 5/16" - 18 NC x 1-1/4"

1шт.

8

92-5

LOCK WASHER,5/16"

med sect. 5/16"

1шт.

9

D33552

BUSHING

SPACER - clamp

1шт.

10

D36078

TUBE

- manifold, front (Late Production - use with D36075 tube)

1шт.

10a

D33901

TUBE - manifold, front (Early Production - use with D33904 tube)

1шт.

11

D36077

TUBE

- manifold, rear (Late Production - use with D36073 tube)

1шт.

11a

D33899

TUBE - manifold, rear (Early Production - use with D33906 tube)

1шт.

12

32978

PLATE ASSY.

PLATE - clamp, tube

2шт.

13

13-528

BOLT,Hex, 5/16" - 18 x 1-3/4", Gr 5

HHCS - 5/16" - 18 NC x 1-3/4"

2шт.

14

D33552

BUSHING

SPACER - clamp

2шт.

15

D26751

BRACKET - mounting

2шт.

16

195-21

WASHER,5/16"

- flat () 5/16"

2шт.

17

131-4

LOCK NUT,5/16"-18, GB

NUT - lock, hex. (5/16" - 18 NC)

2шт.

18

D26792

HOSE - crossover tube to lift cylinder (26" long)

4шт.

19

D33316

CLAMP

PLATE - clamp, hose

4шт.

20

13-528

BOLT,Hex, 5/16" - 18 x 1-3/4", Gr 5

HHCS - 5/16" - 18 NC x 1-3/4"

2шт.

21

195-21

WASHER,5/16"

- flat () 5/16"

2шт.

22

131-4

LOCK NUT,5/16"-18, GB

NUT - lock, hex (5/16" - 18 NC)

2шт.

23

D27785

TUBE - cylinder, closed end (Bulldozer and Mechanical Angling Dozer)

1шт.

D28214

TUBE - cylinder, closed end (Power Angling Dozer)

2шт.

D30605

TUBE - cylinder, closed end (Power Tilt Dozer)

2шт.

24

D27783

TUBE - cylinder, rod end (Bulldozer and Mechanical Angling Dozer)

1шт.

D28216

TUBE - cylinder, rod end (Power Angling Dozer)

2шт.

D30607

TUBE - cylinder, rod end (Power Tilt Dozer)

2шт.

25

218-5107

90 ELBOW,90 Degree Elbow, 7/8" - 14 Male JIC x 7/8" - 14 Male ORB

- adjustable, 90 degrees, Incl. Ref. 26

3шт.

26

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk

1шт.

27

R19576

FITTING

ELBOW - special, Includes: Ref. 28

1шт.

28

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk

1шт.

29

221-11

PLUG,Sq Hd, 1/8"-27

- pipe (1/8" NPT)

1шт.

30

REF

INSTRUCTION

CYLINDER - lift (See figures 268 and 269A for proper cylinders)

2шт.

31

16741

MOLDBOARD - Mechanical Angling Dozer (See figure 216)

1шт.

31

D20266

MOLDBOARD - Power Angling Dozer (See figure 220)

1шт.

D25701

MOLDBOARD - Power Tilt Dozer (See figure 226)

1шт.

D24510

MOLDBOARD - Bulldozer (See figure 214)

1шт.

32

D38648

BLOCK

SADDLE - rubber, if used

4шт.

33

214-34

X

CLAMP - tube, if used

4шт.
