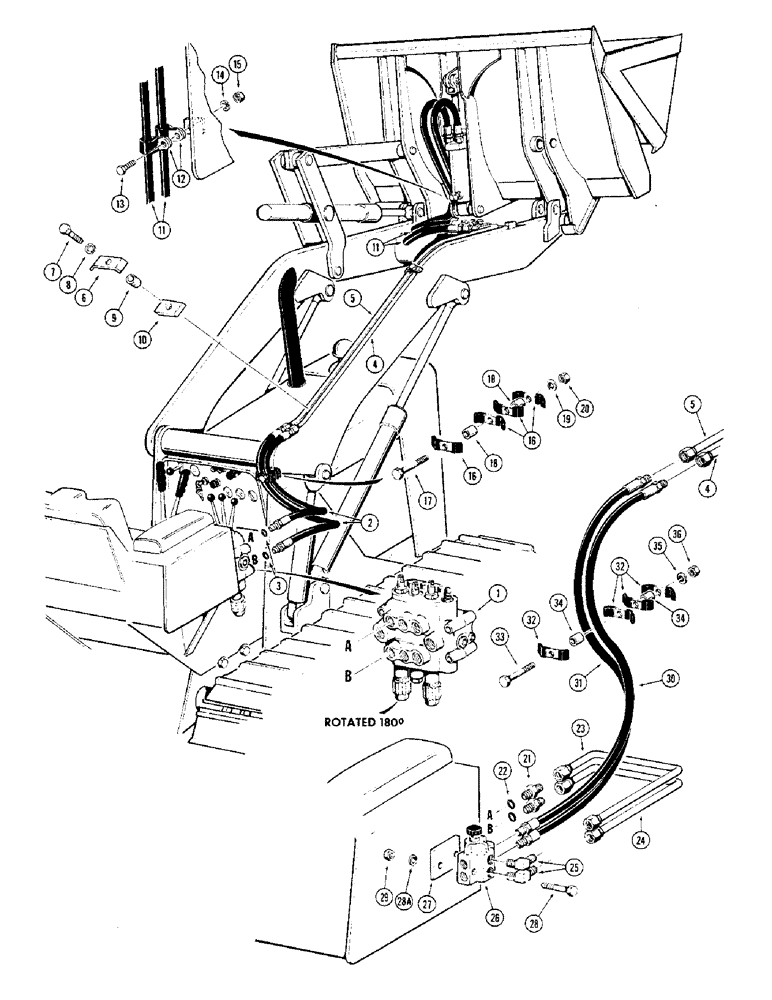

Запчасти Case 310G (212) - CLAM TYPE BUCKET HYDRAULICS (07) - HYDRAULIC SYSTEM

1

REF

INSTRUCTION

VALVE - control, hydraulic (Parker Series VDP 12) see figure 172 for proper valve

1шт.

2

D34415

HOSE

- valve to cylinder (35-1/2" long), Includes: Ref. 3

2шт.

3

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk

1шт.

4

D34417

TUBE

- upper valve port to cylinder (R.H.)

1шт.

5

D34419

TUBE

- lower valve port to cylinder (L.H.)

1шт.

6

38331

PLATE

- clamp

3шт.

7

13-516

BOLT,Hex, 5/16" - 18 x 1", Gr 5

3шт.

8

92-5

LOCK WASHER,5/16"

med sect. 5/16"

3шт.

9

D33551

BUSHING

SPACER - clamp

3шт.

10

D24663

BLOCK

- mounting, clamp

3шт.

11

D34401

HOSE ASSY.

HOSE - control valve to clam cylinder (60" long) use with Drott bucket only

2шт.

D39245

HOSE

- control valve to clam cylinder (28" long) use with Ulrich Bucket only

2шт.

12

49855

CLAMP

- hose

2шт.

13

13-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

1шт.

14

92-5

LOCK WASHER,5/16"

med sect. 5/16"

1шт.

15

9635082

NUT,5/16" - 18, Gr 5

- hex. (5/16" - 18 NC)

1шт.

16

D33316

CLAMP

PLATE - clamp, hose

4шт.

17

13-554

HHCS - 5/16" - 18 NC x 3-3/8"

1шт.

18

D33829

BUSHING

SPACER - clamp

2шт.

19

92-5

LOCK WASHER,5/16"

med sect. 5/16"

1шт.

20

9635082

NUT,5/16" - 18, Gr 5

- hex. (5/16" - 18 NC)

1шт.

21

218-5062

HYD CONNECTOR,7/8"-14, 37 Degree x 7/8"-14, O-Ring

CONNECTOR - male, used on models with ripper, three point hitch and pull behind hydraulics, Includes: Ref. 22

2шт.

22

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk, Used on models with ripper, three point hitch and pull behind hydraulics

1шт.

23

D34470

TUBE - control valve to diversion valve, used on models with ripper, three point hitch and pull behind hydraulics

1шт.

24

D34468

TUBE - control valve to diversion valve, used on models with ripper, three point hitch and pull behind hydraulics

1шт.

25

D29569

X

ELBOW - special, 90 degrees, used on models with ripper, three point hitch and pull behind hydraulics

2шт.

26

D34424

VALVE

- diversion (Parts list page 292), used on models with ripper, three point hitch and pull behind hydraulics

1шт.

27

D34426

BRACKET - diversion valve mounting, used on models with ripper, three point hitch and pull behind hydraulics

1шт.

28

13-648

BOLT,Hex, 3/8" - 16 x 3", Gr 5

HHCS - 3/8" - 16 NC x 3", used on models with ripper, three point hitch and pull behind hydraulics

2шт.

28a

92-6

LOCK WASHER,3/8"

med. sect., used on models with ripper, three point hitch and pull behind hydraulics 3/8"

2шт.

29

25-106

NUT,3/8"-16, G5

- hex. (3/8" - 16 NC), used on models with ripper, three point hitch and pull behind hydraulics

2шт.

30

D34466

HOSE - diversion valve to cylinder (40-1/2" long), used on models with ripper, three point hitch and pull behind hydraulics

1шт.

31

D34464

HOSE - diversion valve to cylinder (42-1/2" long), used on models with ripper, three point hitch and pull behind hydraulics

1шт.

32

D33316

CLAMP

PLATE - clamp, hose, used on models with ripper, three point hitch and pull behind hydraulics

4шт.

33

13-552

BOLT,Hex, 5/16" - 18 x 3-1/4", Gr 5

HHCS - 5/16" - 18 NC x 3-1/4", used on models with ripper, three point hitch and pull behind hydraulics

1шт.

34

D33829

BUSHING

SPACER - clamp, used on models with ripper, three point hitch and pull behind hydraulics

2шт.

35

92-5

LOCK WASHER,5/16"

med sect., used on models with ripper, three point hitch and pull behind hydraulics 5/16"

1шт.

36

9635082

NUT,5/16" - 18, Gr 5

- hex. (5/16" - 18 NC), used on models with ripper, three point hitch and pull behind hydraulics

1шт.
