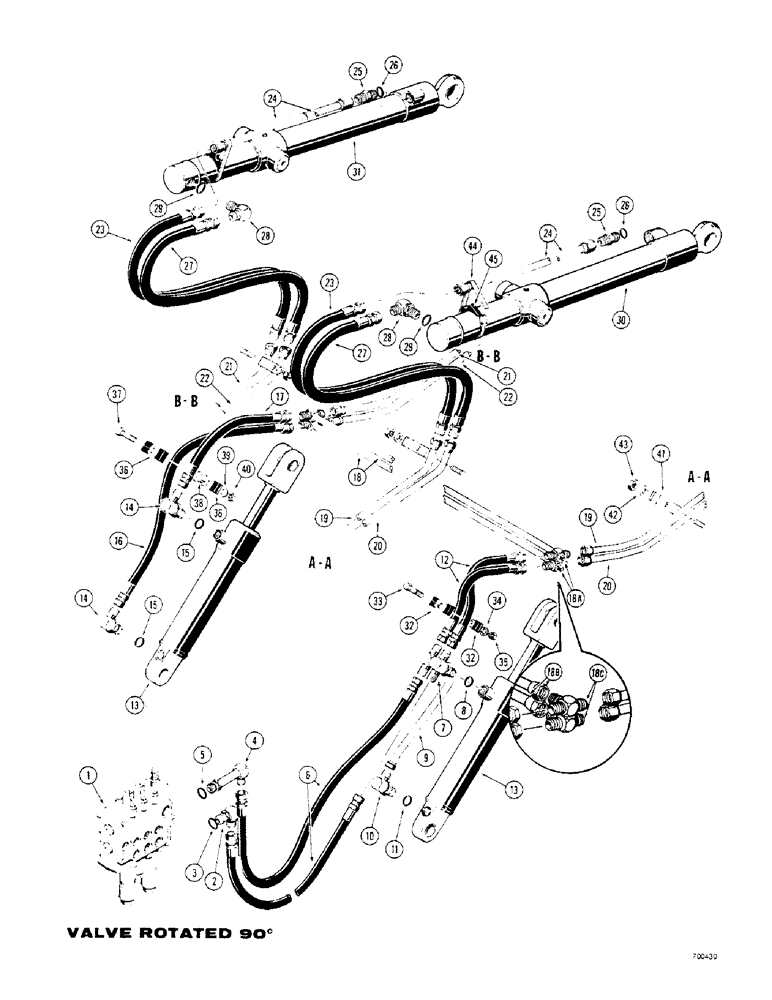

Запчасти Case 310G (202) - LOADER DUMP AND HYDRA-LEVELING HYDRAULICS (07) - HYDRAULIC SYSTEM

1

REF

INSTRUCTION

VALVE - control, hydraulic (Parker series VDP 12) see figure 172 for proper valve

1шт.

2

218-5107

90 ELBOW,90 Degree Elbow, 7/8" - 14 Male JIC x 7/8" - 14 Male ORB

- male - 90 degrees, Incl. Ref. 3

1шт.

3

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk

1шт.

4

D25136

FITTING

ELBOW - special, 90 degrees, Includes: Ref. 5

1шт.

5

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

SEAL -"O" ring

1шт.

6

D27478

HOSE ASSY.

HOSE - control valve to hydra-leveling cylinder (22" long)

2шт.

7

D28551

TEE

- male (Rod end of cylinder), Includes: Ref. 8

1шт.

8

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk

1шт.

9

D35688

TUBE

- control valve to R.H. hydra-leveling cylinder (Closed end)

1шт.

10

218-5107

90 ELBOW,90 Degree Elbow, 7/8" - 14 Male JIC x 7/8" - 14 Male ORB

- male, 90 degrees, Incl. Ref. 11

1шт.

11

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk

1шт.

12

D33346

HOSE

- R.H. hydra-leveling cylinder to dump cylinder cross-over tubes (25" long)

2шт.

13

D33123

CYLINDER BLOCK

CYLINDER - hydra-leveling (See figure 260 for cylinders)

2шт.

14

218-5107

90 ELBOW,90 Degree Elbow, 7/8" - 14 Male JIC x 7/8" - 14 Male ORB

- male, 90 degrees, Incl. Ref. 15

2шт.

15

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk

1шт.

16

D37186

HOSE - L.H. hydra-leveling cylinder to lower dump cylinder crossover tube (37-1/2" long)

1шт.

17

D37187

HOSE - L.H. hydra-leveling cylinder to upper dump cylinder crossover tube (25" long)

1шт.

18

D36843

TUBE - crossover, dump cylinder, Includes: Ref. 18A

2шт.

18a

221-11

PLUG,Sq Hd, 1/8"-27

- sq. head (1/8" (NPT)

1шт.

18b

D33318

TUBE - crossover (When stock is exhausted, use D36843 tube for service) Early Production

2шт.

18c

218-595

TEE,7/8"-14, 37 Degree

- male (5/8" JIC) Early Production

4шт.

19

D33334

TUBE ASSY.

TUBE - crossover to dump cylinder (R.H. upper)

1шт.

20

D33336

TUBE

- crossover to dump cylinder (R.H. lower)

1шт.

21

D33338

TUBE - crossover to dump cylinder (L.H. upper)

1шт.

22

D33340

TUBE - crossover to dump cylinder (L.H. lower)

1шт.

23

D33342

HYDRAULIC HOSE

HOSE - crossover to dump cylinder (Rod end) 29-1/2" long

2шт.

24

D33328

TUBE ASSY.

TUBE - crossover to dump cylinder (Rod end)

2шт.

25

218-5062

HYD CONNECTOR,7/8"-14, 37 Degree x 7/8"-14, O-Ring

ADAPTER - male, straight, Includes: Ref. 26

2шт.

26

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk

1шт.

27

D24571

HOSE

- crossover to dump cyl. (Closed end) 30-3/4" long

2шт.

28

218-5107

90 ELBOW,90 Degree Elbow, 7/8" - 14 Male JIC x 7/8" - 14 Male ORB

- male, 90 degrees, Incl. Ref. 29

2шт.

29

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk

1шт.

30

D33113

CYLINDER ASSY.

CYLINDER - dump, R.H. (See figure 262 for cylinders)

1шт.

31

D33114

CYLINDER - dump, L.H. (See figure 262 for cylinders)

1шт.

32

D33316

CLAMP

PLATE - clamp, hose

2шт.

33

13-532

BOLT,Hex, 5/16" - 18 x 2", Gr 5

1шт.

34

195-21

WASHER,5/16"

- flat () 5/16"

1шт.

35

131-4

LOCK NUT,5/16"-18, GB

NUT - lock, hex. (5/16" - 18 NC)

1шт.

36

D33316

CLAMP

PLATE - clamp, hose

2шт.

37

13-532

BOLT,Hex, 5/16" - 18 x 2", Gr 5

1шт.

38

D36524

BUSHING

SPACER - clamp

1шт.

39

195-21

WASHER,5/16"

- flat () 5/16"

1шт.

40

131-4

LOCK NUT,5/16"-18, GB

NUT - lock, hex (5/16" - 18 NC)

1шт.

41

R17319

CLAMP

PLATE - clamp, tube

4шт.

42

195-21

WASHER,5/16"

- flat () 5/16"

4шт.

43

131-4

LOCK NUT,5/16"-18, GB

NUT - lock, hex. (5/16" - 18 NC)

4шт.

44

214-264

HOSE CLAMP,#52, 2.81" - 3.75", Type F Worm

CLAMP - tube, adjustable

2шт.

45

D38648

BLOCK

SADDLE - rubber

2шт.
