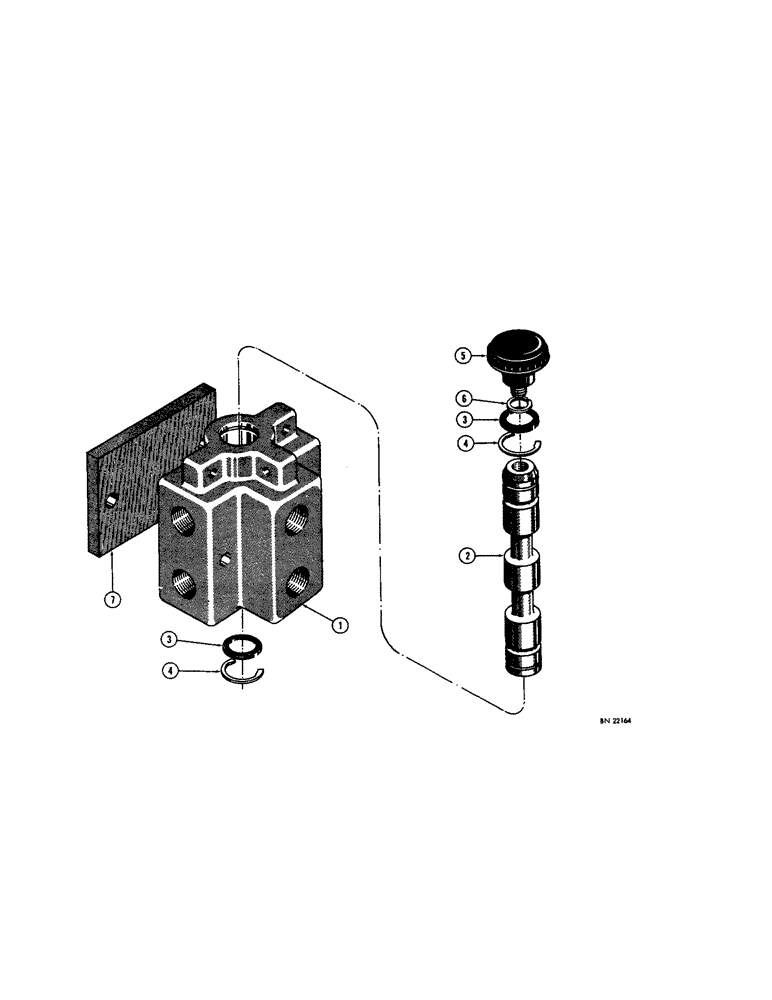

Запчасти Case 310G (190) - D34424 DIVERSION VALVE (07) - HYDRAULIC SYSTEM

D34424

VALVE

- diversion, Includes: Ref. 1 - 6

1шт.

1

NSS

NOT SOLD SEPARAT

HOUSING - valve (Use D34424)

1шт.

2

NSS

NOT SOLD SEPARAT

SPOOL - valve (Use D34424)

1шт.

3

D26391

SEAL - quad ring, spool

2шт.

4

D23692

SNAP RING,#100, Ext, Crescent

Ring, Snap, , spool #100, Ext, Crescent

2шт.

5

D34457

KNOB

- control

1шт.

6

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

1шт.

7

D34426

PLATE - mounting, valve

1шт.
