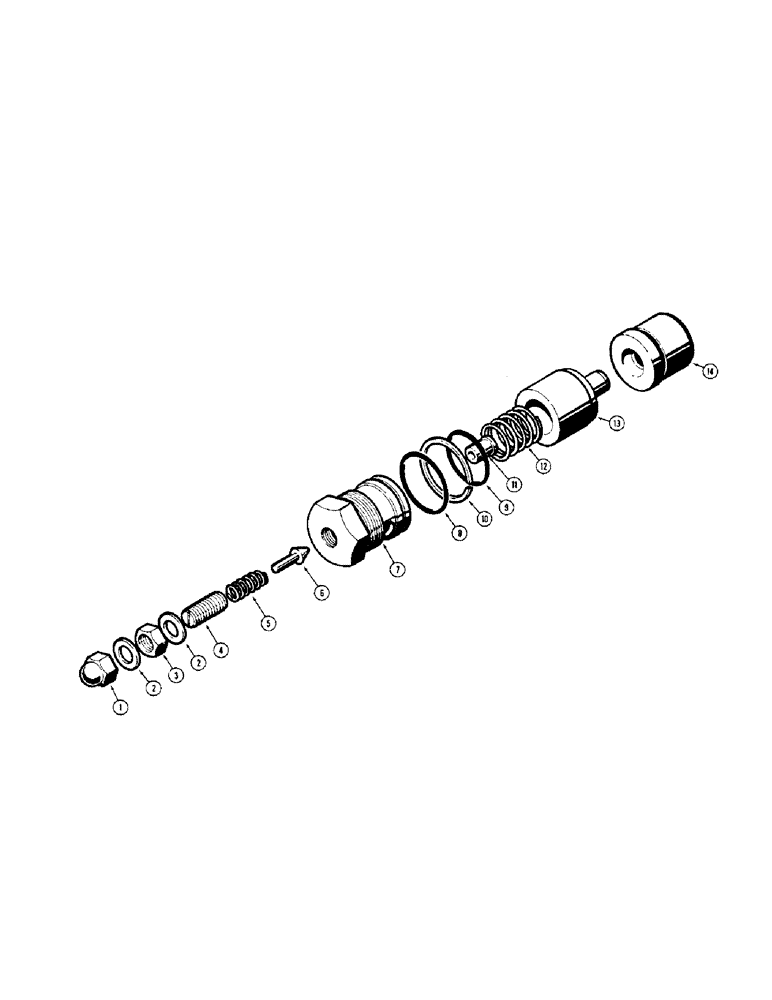

Запчасти Case 310G (184) - MAIN RELIEF VALVE, (ALL MODELS EXCEPT DOZER BACKHOE MODELS), (07) - HYDRAULIC SYSTEM

1

129-514

CROWN NUT,Low, 5/16" - 24

- acorn (5/16" - 24 NF)

1шт.

2

D26270

WASHER, SEALING

WASHER - special

2шт.

3

25-155

JAM NUT,Jam, 5/16"-24, G5

- hex., jam (5/16" - 24 NF)

1шт.

4

182-514

SCREW

- adjusting (5/16" - 24 NF x 7/8")

1шт.

5

D26268

SPRING

- pilot

1шт.

6

D26267

PLUNGER

- relief valve

1шт.

7

D26262

CAP

- relief valve

1шт.

8

218-5006

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

SEAL - "O" ring, large

1шт.

9

D26265

O-RING,1.78mm Thk x 14mm ID, 70 Duro

SEAL - "O" ring, small

1шт.

10

L30443

BACK-UP RING,0.547" ID x 0.049" Width

- backup

1шт.

11

D26266

SEAT

- relief valve

1шт.

12

D26261

VALVE SPRING

SPRING - relief valve

1шт.

13

A16888

VALVE POPPET

POPPET - relief valve

1шт.

14

D26259

SEAT

- poppet

1шт.
