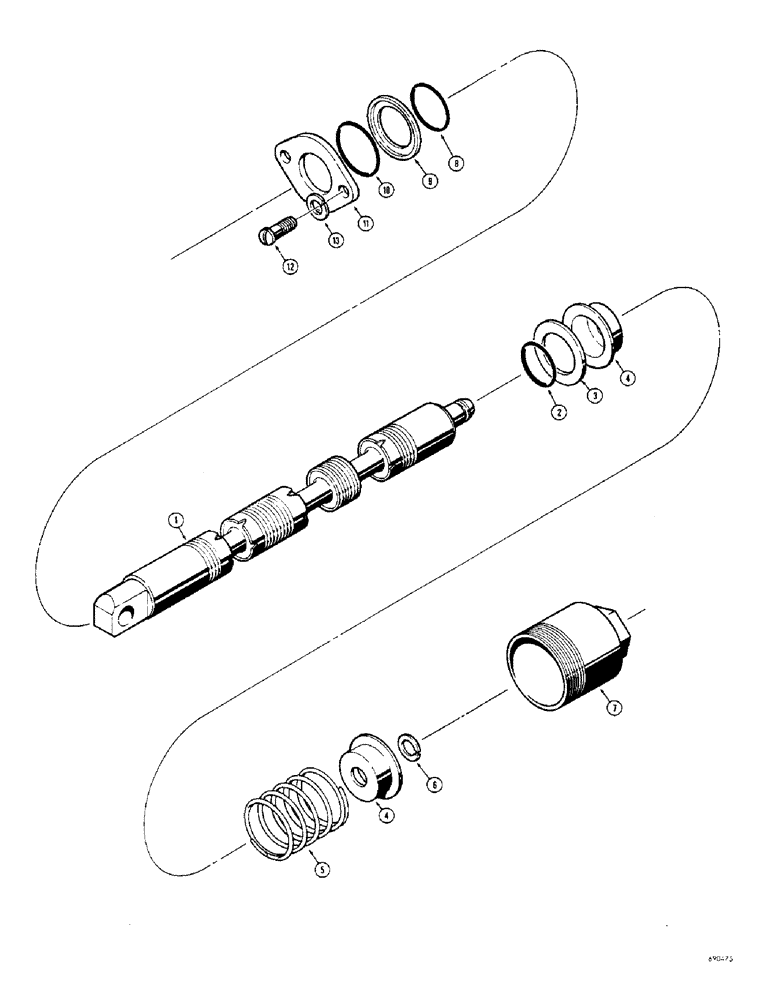

Запчасти Case 310G (182) - THREE POSITION SPOOLS (07) - HYDRAULIC SYSTEM

D26243

SPOOL ASSEMBLY - three position (Color code - black or letter code - W) .73700" to .73709", Includes: Ref. 1 - 6

1шт.

D26244

SPOOL

ASSEMBLY - three position (Color code - blue or letter code X) .73710" to .73719", Includes: Ref. 1 - 6

1шт.

D26245

SPOOL ASSEMBLY - three position (Color code - yellow or letter code Y) .73720" to .73729", Includes: Ref. 1 - 6

1шт.

D26246

SPOOL ASSEMBLY - three position (Color code - green or letter code - Z) .73730" to .73739", Includes: Ref. 1 - 6

1шт.

1

NSS

NOT SOLD SEPARAT

SPOOL - three position

1шт.

2

R17547

O-RING,0.103" Thk x 0.75" ID, -116, Cl 5, 75 Duro

SEAL - "O" ring

1шт.

3

A14535

RETAINER

- seal

1шт.

4

A14533

BRONZE BUSHING

RETAINER - spring

2шт.

5

A14534

SPRING

- spool return

1шт.

6

A27020

RING

SNAP RING -, Serial Range: spring-spool

1шт.

7

A14529

CAP

- three position spool

1шт.

8

R17547

O-RING,0.103" Thk x 0.75" ID, -116, Cl 5, 75 Duro

SEAL - "O" ring

1шт.

9

A14526

RETAINER

- seal

1шт.

10

A14527

SCRAPER

WIPER - spool

1шт.

11

A14531

PLATE ASSY.

PLATE - retainer

1шт.

D20771

SCREW AND WASHER ASSEMBLY, Includes: Ref. 12 and 13

2шт.

12

NSS

NOT SOLD SEPARAT

SCREW - plate

1шт.

13

NSS

NOT SOLD SEPARAT

WASHER - lock

1шт.
