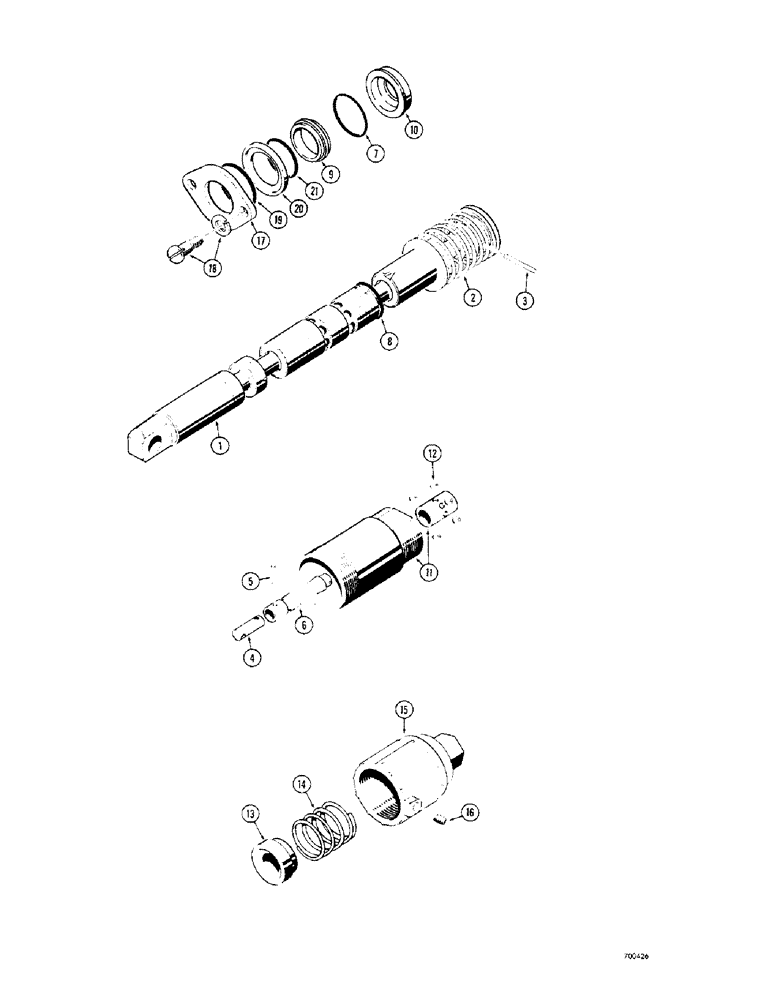

Запчасти Case 310G (180) - FOUR POSITION SPOOLS (07) - HYDRAULIC SYSTEM

D41791

SPOOL

ASSEMBLY - four position (Color code - black or letter code W) .73700" to .73709", Includes: Ref. 1 - 21

1шт.

D41792

SPOOL

ASSEMBLY - four position (Color code - blue or letter code X) .73710" to .73719", Includes: Ref. 1 - 21

1шт.

D41793

SPOOL

ASSEMBLY - four position (Color code - yellow or letter code - Y) .73720" to .73729", Includes: Ref. 1 - 21

1шт.

D41794

ASSEMBLY - four position (Color code - green or letter code Z) .73730" to .73740", Includes: Ref. 1 - 21

1шт.

D38366

KIT - D41791 spool assembly, Includes: Ref. 1 - 6

1шт.

D38365

KNIFE SECTION

KIT - D41792 spool assembly, Includes: Ref. 1 - 6

1шт.

D33867

KIT - D41793 spool assembly, Includes: Ref. 1 - 6

1шт.

D33868

KIT - D41794 spool assembly, Includes: Ref. 1 - 6

1шт.

1

NSS

NOT SOLD SEPARAT

SPOOL ASSEMBLY

1шт.

2

A16882

SPRING

- centering

1шт.

3

138-2013

PIN,1/8" x 9/16", Coiled

Barrel link, front 1/8" x 9/16", Coiled

1шт.

4

D33858

LINK

- detent barrel

1шт.

5

138-2012

PIN,1/8" x 1/2", Coiled

Barrel link, front 1/8" x 1/2", Coiled

1шт.

6

D33859

SCREW

BARREL - detent

1шт.

7

A16877

SEAL

- "O" ring, outer

1шт.

8

R17547

O-RING,0.103" Thk x 0.75" ID, -116, Cl 5, 75 Duro

SEAL - "O" ring, inner

1шт.

9

D33856

RETAINER

- "O" ring, front

1шт.

10

D33857

RETAINER

- "O" ring, rear

1шт.

11

D32592

SLEEVE ASSY

CAP AND SLEEVE ASSEMBLY - spool

1шт.

12

211-5

BALL,3/16" Dia

- steel (.) 3/16" Dia

6шт.

13

A16852

RETAINER

- ball

1шт.

14

A16853

VALVE SPRING

SPRING - detent

1шт.

15

D41795

CAP - front

1шт.

16

178-28

SET SCREW,Hex Soc, 1/4"-20 x 1/2"

SCREW - set, socket set (1/4" - 20 NC x 1/2")

1шт.

17

A14531

PLATE ASSY.

PLATE - retainer

1шт.

18

D20771

SCREW AND WASHER ASSEMBLY - retainer

2шт.

19

A14527

SCRAPER

RING - wiper spool

1шт.

20

A14526

RETAINER

- seal

1шт.

21

R17547

O-RING,0.103" Thk x 0.75" ID, -116, Cl 5, 75 Duro

SEAL - "O" ring

1шт.
