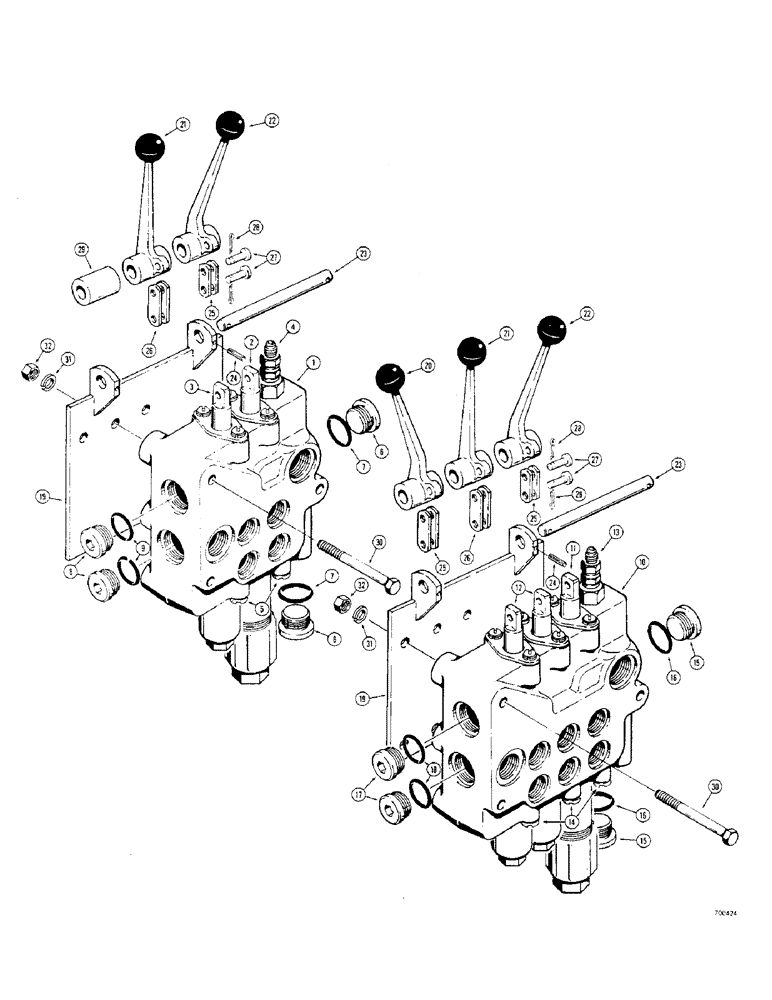

Запчасти Case 310G (176) - DOZER CONTROL VALVE & LEVERS, D35493 DOZER VALVE W/ BACKHOE - TWO SPOOL (07) - HYDRAULIC SYSTEM

1

D35493

VALVE - control, hydraulic, Includes: Ref. 2 - 9

1шт.

2

D41791

SPOOL

ASSEMBLY - four position (Parts list figure 180)

1шт.

2

D41792

SPOOL

ASSEMBLY - four position (Parts list figure 180)

1шт.

2

D41793

SPOOL

ASSEMBLY - four position (Parts list figure 180)

1шт.

2

D41794

ASSEMBLY - four position (Parts list figure 180)

1шт.

3

D26243

SPOOL ASSEMBLY - three position (Parts list figure 182)

1шт.

3

D26244

SPOOL

ASSEMBLY - three position (Parts list figure 182)

1шт.

3

D26245

SPOOL ASSEMBLY - three position (Parts list figure 182)

1шт.

3

D26246

SPOOL ASSEMBLY - three position (Parts list figure 182)

1шт.

4

NSS

NOT SOLD SEPARAT

VALVE - main relief, backhoe (Parts list figure 186)

1шт.

5

NSS

NOT SOLD SEPARAT

VALVE - check (Parts list figure 184)

2шт.

6

86625138

PLUG,7/18" - 14

Pipe, Allen head, Includes Ref. 7 Hex Soc, 7/8"-14 ORB

2шт.

7

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk

1шт.

8

9841223

PLUG,1-1/16" - 12 ORB

Pipe, Allen head, Incl. Ref. 9 Hex Soc, 1 1/16"-12 ORB

2шт.

9

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

SEAL - "O" ring

1шт.

10

D35494

VALVE - control, hydraulic, D35494 dozer with backhoe - three spool, Includes: Ref. 11 - 18

1шт.

11

D41791

SPOOL

ASSEMBLY - four position (Parts list figure 180), D35494 dozer valve with backhoe - three

1шт.

11

D41792

SPOOL

ASSEMBLY - four position (Parts list figure 180), D35494 dozer valve with backhoe - three

1шт.

11

D41793

SPOOL

ASSEMBLY - four position (Parts list figure 180), D35494 dozer valve with backhoe - three

1шт.

11

NLS

NO LONGER SERVICED

ASSEMBLY - four position (Parts list figure 180), D35494 dozer valve with backhoe - three

1шт.

12

D26243

SPOOL ASSEMBLY - three position (Parts list figure 182), D35494 dozer valve with backhoe

2шт.

12

D26244

SPOOL

ASSEMBLY - three position (Parts list figure 182), D35494 dozer valve with backhoe

2шт.

12

D26245

SPOOL ASSEMBLY - three position (Parts list figure 182), D35494 dozer valve with backhoe

2шт.

12

D26246

SPOOL ASSEMBLY - three position (Parts list figure 182), D35494 dozer valve with backhoe

2шт.

13

NSS

NOT SOLD SEPARAT

VALVE - main relief, backhoe (Parts list figure 186), D35494 dozer with backhoe - three spool

1шт.

14

NSS

NOT SOLD SEPARAT

VALVE - check (Parts list figure 184), D35494 dozer with backhoe - three spool

3шт.

15

86625138

PLUG,7/18" - 14

Pipe, Allen head, D35494 dozer valve with backhoe - three spool, Includes Ref. 16 Hex Soc, 7/8"-14 ORB

2шт.

16

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk, D35494 dozer valve with backhoe - three spool

1шт.

17

9841223

PLUG,1-1/16" - 12 ORB

Pipe, Allen head, D35494 dozer valve with backhoe - three spool, Incl. Ref. 18 Hex Soc, 1 1/16"-12 ORB

2шт.

18

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

SEAL - "O" ring, D35494 dozer valve with backhoe - three spool

1шт.

19

D33250

BRACKET - lever mounting, control

1шт.

20

D33255

LEVER

- valve control, R.H.

1шт.

21

D33254

LEVER - valve control, center or R.H.

1шт.

22

D33256

LEVER - D35494 valve control, L.H.

1шт.

22

D35491

LEVER - D35493 valve control, L.H.

1шт.

23

D33251

SHAFT

- lever mounting, control levers

1шт.

24

138-100

LOCK PIN,3/16" x 1 1/2", Slotted

PIN, , Control levers 3/16" x 1 1/2", Slotted

1шт.

25

D33247

LINK - D33255, D33256 and D35491 levers, control

2-4шт.

26

D25483

LINK

- D33254 lever, control

2шт.

27

141-3

CLEVIS PIN,5/16" x .940"

PIN, CLEVIS, , Control levers 5/16" x .940"

4-6шт.

28

132-25

COTTER PIN,3/32" x 5/8"

Pin, Split (Cotter), , Control levers 3/32" x 5/8"

4-6шт.

29

D33252

SPACER - lever (D35493 valve), control levers

1шт.

30

13-664

BOLT,Hex, 3/8" - 16 x 4", Gr 5

Control levers Hex, 3/8"-16 x 4", G5

3шт.

31

92-6

LOCK WASHER,3/8"

med. sect., control levers 3/8"

3шт.

32

25-106

NUT,3/8"-16, G5

- hex. (3/8" - 16 NC), control levers

3шт.
