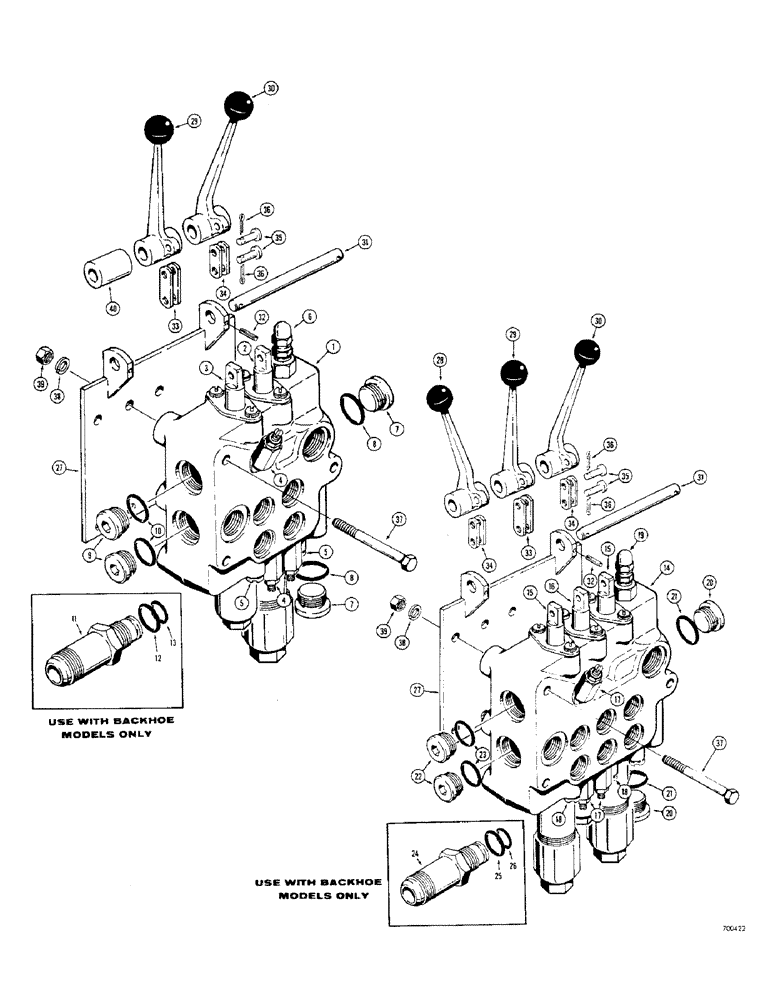

Запчасти Case 310G (172) - LOADER CONTROL VALVES AND LEVERS, D33266 VALVE - TWO SPOOL (07) - HYDRAULIC SYSTEM

1

D33266

VALVE - control, hydraulic, Includes: Ref. 2 - 10

1шт.

2

D41791

SPOOL

ASSEMBLY - four position (Parts list figure 180)

1шт.

2

D41792

SPOOL

ASSEMBLY - four position (Parts list figure 180)

1шт.

2

D41793

SPOOL

ASSEMBLY - four position (Parts list figure 180)

1шт.

2

D47194

SPOOL ASSEMBLY - four position (Parts list figure 180)

1шт.

3

D26243

SPOOL ASSEMBLY - three position (Parts list figure 182)

1шт.

3

D26244

SPOOL

ASSEMBLY - three position (Parts list figure 182)

1шт.

3

D26245

SPOOL ASSEMBLY - three position (Parts list figure 182)

1шт.

3

D26246

SPOOL ASSEMBLY - three position (Parts list figure 182)

1шт.

4

D31458

VALVE - secondary relief (Parts list figure 186)

3шт.

5

NSS

NOT SOLD SEPARAT

VALVE - check (Parts list figure 184)

2шт.

6

NSS

NOT SOLD SEPARAT

VALVE - main relief (Parts list figure 184)

1шт.

7

86625138

PLUG,7/18" - 14

Pipe, Allen head, Includes Ref. 8 Hex Soc, 7/8"-14 ORB

2шт.

8

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk

1шт.

9

9841223

PLUG,1-1/16" - 12 ORB

Pipe, Allen head, Incl. Ref. 10 Hex Soc, 1 1/16"-12 ORB

2шт.

10

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

SEAL - "O" ring

1шт.

11

D33618

FITTING - carryover, backhoe

1шт.

12

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

SEAL - "O" ring

1шт.

13

D26435

O-RING,0.07" Thk x 0.801" ID, -19, Cl 6, 90 Duro

SEAL - "O" ring

1шт.

14

D33253

VALVE - control, hydraulic, D33253 - three spool, Includes: Ref. 15 - 23

1шт.

15

D41791

SPOOL

ASSEMBLY - four position (Parts list figure 180), D33253 valve - three

2шт.

15

D41792

SPOOL

ASSEMBLY - four position (Parts list figure 180), D33253 valve - three

2шт.

15

D41793

SPOOL

ASSEMBLY - four position (Parts list figure 180), D33253 valve - three

2шт.

15

NLS

NO LONGER SERVICED

ASSEMBLY - four position (Parts list figure 180), D33253 valve

2шт.

16

D26243

SPOOL ASSEMBLY - three position (Parts list figure 182), D33253 valve

1шт.

16

D26244

SPOOL

ASSEMBLY - three position (Parts list figure 182), D33253 valve

1шт.

16

D26245

SPOOL ASSEMBLY - three position (Parts list figure 182), D33253 valve

1шт.

16

D26246

SPOOL ASSEMBLY - three position (Parts list figure 182), D33253 valve

1шт.

17

D31458

VALVE - secondary relief (Parts list figure 186), D33253 - three spool

3шт.

18

NSS

NOT SOLD SEPARAT

VALVE - check (Parts list figure 184), D33253 - three spool

3шт.

19

NSS

NOT SOLD SEPARAT

VALVE - main relief (Parts list figure 184), D33253 - three spool

1шт.

20

86625138

PLUG,7/18" - 14

Pipe, Allen head, D33253 valve - three spool, Includes Ref. 21 Hex Soc, 7/8"-14 ORB

2шт.

21

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk, D33253 valve - three spool

1шт.

22

9841223

PLUG,1-1/16" - 12 ORB

Pipe, Allen head, D33253 valve - three spool, Incl. Ref. 23 Hex Soc, 1 1/16"-12 ORB

2шт.

23

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

SEAL - "O" ring, D33253 valve - three spool

1шт.

24

D26503

FITTING - carryover, backhoe, D33253 valve - three spool

1шт.

25

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

SEAL - "O" ring, D33253 valve - three spool

1шт.

26

D26435

O-RING,0.07" Thk x 0.801" ID, -19, Cl 6, 90 Duro

SEAL - "O" ring, D33253 valve - three spool

1шт.

27

D33250

BRACKET - lever mounting, control

1шт.

28

D33255

LEVER

- valve control, R.H.

1шт.

29

D33254

LEVER - valve control, center or R.H.

1шт.

30

D33256

LEVER - valve control, L.H.

1шт.

31

D33251

SHAFT

- lever mounting, control

1шт.

32

138-100

LOCK PIN,3/16" x 1 1/2", Slotted

PIN, , Control levers 3/16" x 1 1/2", Slotted

1шт.

33

D33247

LINK - D33254 lever, control

2шт.

34

D25483

LINK

- D33255 and D33256 levers, control

2-4шт.

35

141-3

CLEVIS PIN,5/16" x .940"

PIN, CLEVIS, , Control levers 5/16" x .940"

4-6шт.

36

132-25

COTTER PIN,3/32" x 5/8"

Pin, Split (Cotter), , Control levers 3/32" x 5/8"

4-6шт.

37

13-664

BOLT,Hex, 3/8" - 16 x 4", Gr 5

Control levers Hex, 3/8"-16 x 4", G5

3шт.

38

92-6

LOCK WASHER,3/8"

med. sect., control levers 3/8"

3шт.

39

25-106

NUT,3/8"-16, G5

- hex. (3/8" - 16 NC), control levers

3шт.

40

D33252

SPACER - lever (D33266 valve only), control

1шт.
