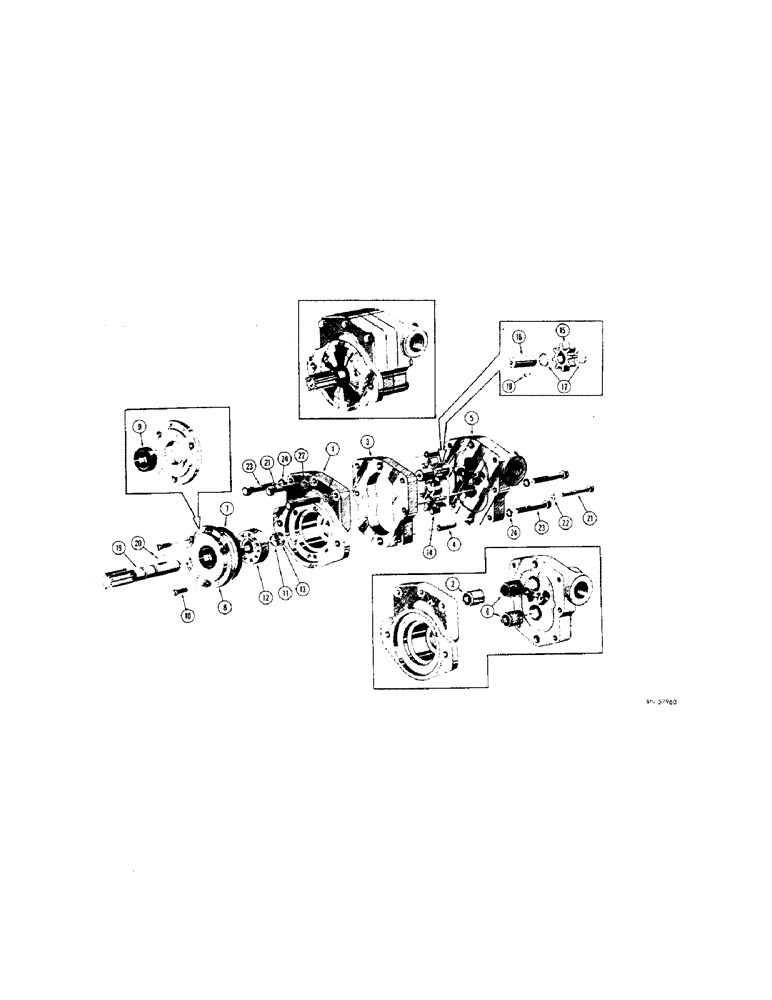

Запчасти Case 310G (168) - WEBSTER HYDRAULIC PUMP, (USED BEFORE TRACTOR SN. 3025562) (07) - HYDRAULIC SYSTEM

D25569

PUMP, HYDRAULIC

PUMP - hydraulic, 13-1/2 G.P.M. at 10850 R.P.M. (Webster no. 3HCS-26L) When stock is exhausted, use D49613 pump, Includes: Ref. 1 - 24

1шт.

D49613

PUMP - hydraulic, 13-1/2 G.P.M. at 1850 R.P.M. (Webster no. 3HCS-26LB), Includes: Ref. 1 - 24

1шт.

1

D26062

SHIN

BODY - D25569 pump, Includes: Ref. 2

1шт.

1

D50252

BODY

- D49613 pump, Includes: Ref. 2

1шт.

2

14228

NEEDLE BEARING,Needle, 19.05mm ID x 25.4mm OD x 19.05mm W

BEARING - needle

1шт.

3

34452

PLATE - gear

1шт.

4

NLS

NO LONGER SERVICED

- dowel

2шт.

5

D26060

COVER - pump, Includes: Ref. 6

1шт.

6

14228

NEEDLE BEARING,Needle, 19.05mm ID x 25.4mm OD x 19.05mm W

BEARING - needle

2шт.

7

D26065

X

SEAL - "O" ring (When stock is exhausted, use D28965)

1шт.

D28965

O-RING,0.103" Thk x 2.112" ID, -138, Cl 5, 75 Duro

SEAL - "O" ring

1шт.

8

D26067

PLATE - pilot, Includes: Ref. 9

1шт.

9

D24047

SEAL

- oil

1шт.

10

171-212

SCREW,Sl Flat Hd, #10 - 24 x 5/8"

- flat hd. mach. (No. 10 - 24 NF x 5/8")

3шт.

11

14218

WASHER

WASHER - shim

1шт.

12

MT2041S

BEARING

- ball (D25569 pump)

1шт.

12

O5903AB

BEARING, BALL

BEARING - ball (D49613 pump)

1шт.

13

14217

RING

SNAP RING - bearing retaining

1шт.

5445

GEAR-SET

KIT - gear, drive and driven, Includes: Ref. 14 and 15

1шт.

14

NSS

NOT SOLD SEPARAT

GEAR - drive (Use 5445)

1шт.

15

NSS

NOT SOLD SEPARAT

GEAR - driven (Use 5445)

1шт.

16

34451

SHAFT - idler

1шт.

17

D27331

RING

SNAP RING - gear retaining

2шт.

18

34455

HOOK

KEY - Woodruff (When stock is exhausted, use 126-106)

2шт.

126-106

WOODRUFF KEY,# 213, 1/8" x 3/8", HT

KEY - Woodruff

2шт.

19

D26061

SHAFT

- D25569 pump drive

1шт.

19

D50253

SHAFT

- D49613 pump drive

1шт.

20

126-114

WOODRUFF KEY,#7, 1/8" x 3/4", HT

1шт.

126-114

WOODRUFF KEY,#7, 1/8" x 3/4", HT

1шт.

21

13-440

BOLT,Hex, 1/4" - 20 x 2-1/2", Gr 5

2шт.

22

92-4

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

2шт.

23

13-536

BOLT,Hex, 5/16" - 18 x 2-1/4", Gr 5

6шт.

24

92-5

LOCK WASHER,5/16"

med sect. 5/16"

6шт.
