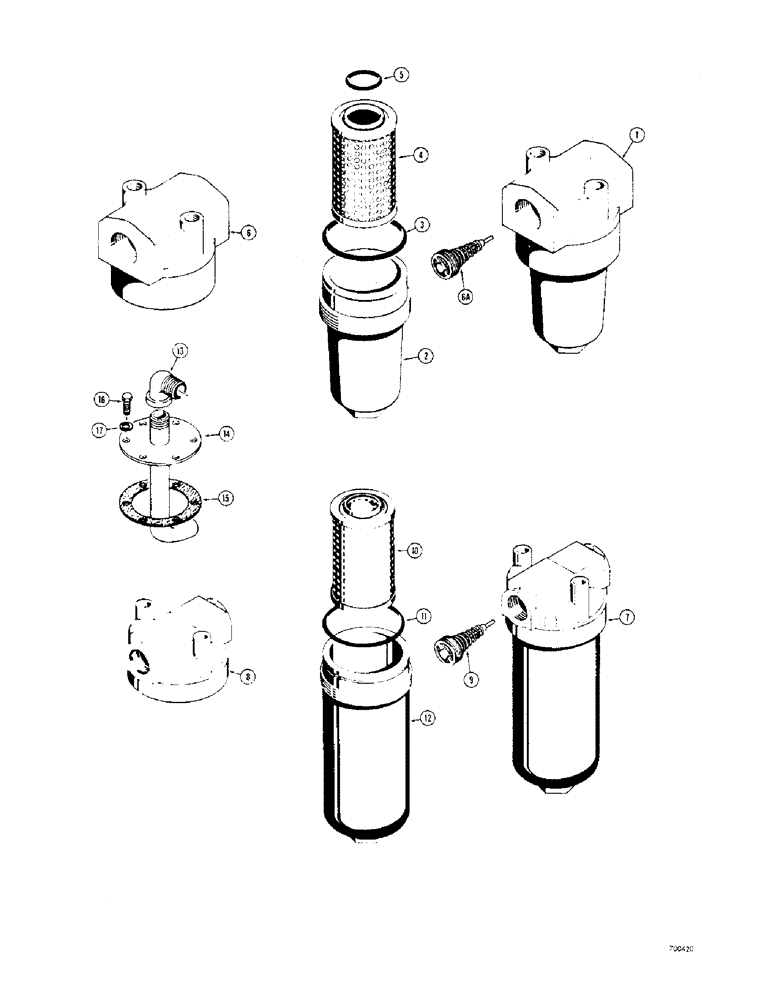

Запчасти Case 310G (164) - D32254 HYDRAULIC OIL FILTER, (USED ON TRACTOR SERIAL NO. 3025562 & AFTER) (07) - HYDRAULIC SYSTEM

1

D32254

FILTER ASSY

- hydraulic oil (When stock is exhausted, use D43567 filter for service), Includes: Ref. 2 - 6A

1шт.

2

R20645

HOUSING

- filter

1шт.

D32212

FILTER, ELEMENT

ELEMENT - filter, Includes: Ref. 3 - 5

1шт.

3

A27994

O-RING,0.139" Thk x 3.234" ID, -236, Cl 5, 75 Duro

SEAL - "O" ring

1шт.

4

NSS

NOT SOLD SEPARAT

ELEMENT - filter, Includes: Ref. 5

1шт.

5

A27577

O-RING,0.139" Thk x 1.234" ID, -218, Cl 5, 75 Duro

SEAL - "O" ring

1шт.

6

D31874

HEAD

- filter, Includes: Ref. 6A

1шт.

6a

L13790

LOCK VALVE

VALVE - oil bypass (25 P.S.I.)

1шт.

7

D43567

FILTER ASSY

- hydraulic oil, D43567 (service replacement for D32254), Includes: Ref. 8 - 12

1шт.

8

D42440

FILTER HEAD

HEAD - filter, D43567 hydraulic oil (service replacement for D32254), Includes: Ref. 9

1шт.

9

D49379

FRONT IDLER

VALVE - oil bypass (25 P.S.I.), D43567 hydraulic filter (service replacement for D32254)

1шт.

D43800

FILTER, ELEMENT

ELEMENT KIT - filter, D43567 hydraulic oil (service replacement for D32254), Includes: Ref. 10 and 11

1шт.

10

NSS

NOT SOLD SEPARAT

ELEMENT - filter, D43567 hydraulic oil (service replacement for D32254)

1шт.

11

A27994

O-RING,0.139" Thk x 3.234" ID, -236, Cl 5, 75 Duro

SEAL - "O" ring, D43567 hydraulic oil filter (service replacement for D32254)

1шт.

12

D42439

HOUSING

- filter, D43567 hydraulic oil (service replacement for D32254)

1шт.

13

221-416

ELBOW,90 Degree, 1"-11 1/2, NPT

- street, 90 degrees, cover assy for D32254 and D43567 filters (used on tractor sn 3025562 and after)

1шт.

14

D36898

PIPE CLAMP

CAP - inlet, cover assy for D32254 and D43567 filters (used on tractor sn 3025562 and after)

1шт.

15

36321

GASKET

- cover, cover assy for D32254 and D43567 filters (used on tractor sn 3025562 and after)

1шт.

16

14-616

BOLT,Hex, 3/8" - 24 x 1", Gr 5

HHCS - 3/8" - 24 NF x 1", cover assy for D32254 and D43567 filters (used on tractor sn 3025562 and after)

6шт.

17

D32117

COPPER WASHER

WASHER, COPPER, Special, Cover assy for D32254 and D43567 filters (Used on tractor S/N 3025562 and after)

6шт.
