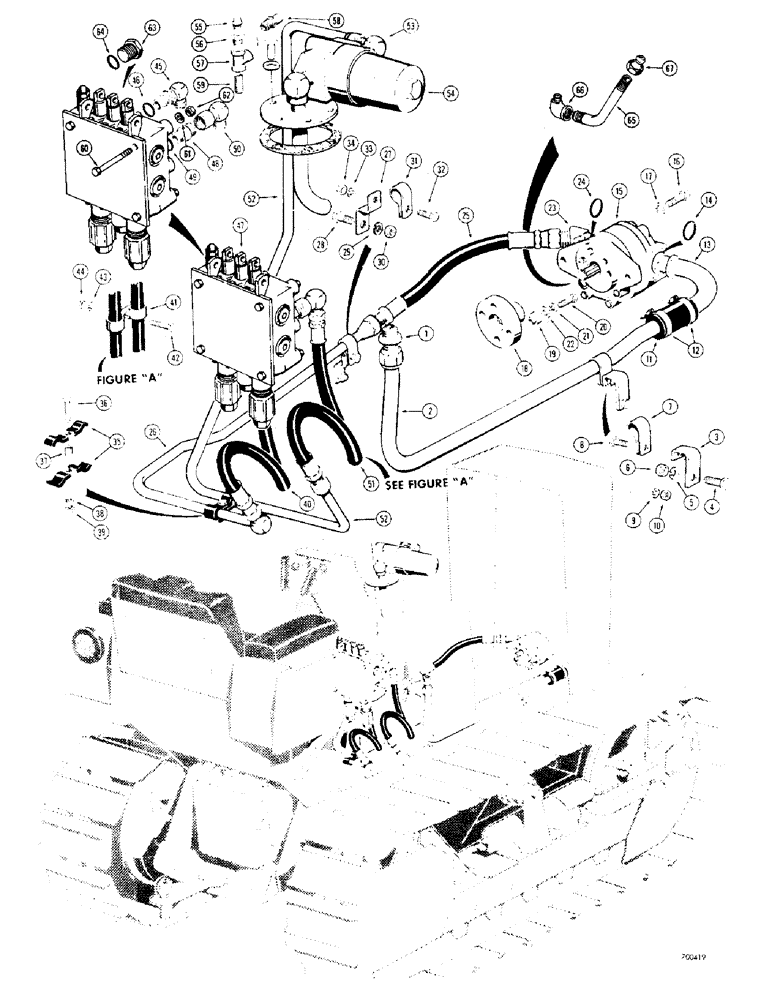

Запчасти Case 310G (160) - BASIC TRACTOR HYDRAULICS (07) - HYDRAULIC SYSTEM

1

218-449

HYD CONNECTOR,1-5/8" - 12 Male JIC x 1-1/4" - 11-1/2 Male NPTF

CONNECTOR - straight, male

1шт.

2

D26690

TUBE - reservoir to pump (Early Production)

1шт.

2

D40273

TUBE - reservoir to pump (Late Production)

1шт.

3

37753

BUSHING

BRACKET - tube clamp

1шт.

4

13-1020

BOLT,Hex, 5/8" - 11 x 1-1/4", Gr 5, Full Thd

1шт.

5

92-10

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

1шт.

6

25-1010

NUT,5/8"-11, G5

1шт.

7

D25156

CLAMP

- tube

1шт.

8

13-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

1шт.

9

92-5

LOCK WASHER,5/16"

med sect. 5/16"

1шт.

10

9635082

NUT,5/16" - 18, Gr 5

- hex. (5/16" - 18 NC)

1шт.

11

R13911

HOSE,31.80 mm ID x 101.60 mm ID, SAE 100R3

- reservoir to pump 31.80 mm ID x 101.60 mm ID, SAE 100R3

1шт.

12

214-258

HOSE CLAMP,#28, 1.31" - 2.25", Type F Worm

2шт.

13

D25144

STEM - hose (Loader models with D25569, D25347 or D49613 pumps), Includes: Ref. 14

1шт.

14

218-5010

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

SEAL - "O" ring

1шт.

13

D25716

STEM

- hose (Drawbar and Dozer Models with D25569, D25347 or D49613 pumps), Includes: Ref. 14

1шт.

14

218-5009

O-RING,0.116" Thk x 1.048" ID, -914, Cl 6, 90 Duro

SEAL - "O" ring

1шт.

13

D36901

STEM - hose (D31254 pump - Early Production), Includes: Ref. 14

1шт.

14

218-5011

O-RING,0.118" Thk x 1.475" ID, -920, Cl 6, 90 Duro

SEAL - "O" ring

1шт.

13

D40275

STEM - hose (D31254 pump - Late Production and D41390 pump), Includes: Ref. 14

1шт.

14

218-5011

O-RING,0.118" Thk x 1.475" ID, -920, Cl 6, 90 Duro

SEAL - hose

1шт.

15

REF

INSTRUCTION

PUMP - hydraulic (See figures 166 thru 170 for proper pump)

1шт.

16

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

(D25569 and D49613 pumps only) Hex, 3/8"-16 x 1", G5, Full Thd

2шт.

17

92-6

LOCK WASHER,3/8"

med. sect. 3/8"

2шт.

16

13-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5, Full Thd

HHCS - 3/8" - 16 NC x 1-1/2" (All pumps except D25569 and D49613 pumps)

2шт.

17

92-8

LOCK WASHER,1/2"

med. sect. 1/2"

2шт.

18

G36217

HUB ASSY.

HUB - pump drive coupling (D25569, D25347 or D49613 pumps), Includes: Ref. 19

1шт.

18

D140524

FLEXIBLE COUPLING,13T

HUB - pump drive coupling (D31254 and D41390 pumps), Includes: Ref. 19

1шт.

19

G36905

BLOCK

AND BUSHING - G36217 and A35558 hubs

4шт.

20

13-724

BOLT,Hex, 7/16" - 14 x 1-1/2", Gr 5

Hex, 7/16"-14 x 1 1/2, G5

4шт.

21

92-7

LOCK WASHER,7/16"

med. sect. 7/16"

4шт.

22

A30013

WASHER,11.51mm ID x 19.05mm OD x 1.59mm Thk

- special

4шт.

23

D29608

ELBOW - special (D25569, D25347 and D49613 pumps), Includes: Ref. 24

1шт.

24

218-5009

O-RING,0.116" Thk x 1.048" ID, -914, Cl 6, 90 Duro

SEAL - "O" ring

1шт.

23

218-5140

45 ELBOW,45 Degree Elbow, 1-5/16" - 12 Male JIC x 1-5/16" - 12 Male ORB

- 45 degree, adjustable (D31254 and D41390 pumps)

1шт.

24

218-5010

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

SEAL - "O" ring

1шт.

25

D29604

HOSE - pump to valve, 18-1/2" long (D25569, D25347 or D49613 pumps)

1шт.

25

D36900

HOSE - pump to valve 18-1/2" long (D31254 and D41390 pumps)

1шт.

26

D33284

TUBE - pump to control valve

1шт.

27

D27673

BRACKET - tube clamp

1шт.

28

13-1020

BOLT,Hex, 5/8" - 11 x 1-1/4", Gr 5, Full Thd

1шт.

29

92-10

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

1шт.

30

25-1010

NUT,5/8"-11, G5

1шт.

31

D25157

CLAMP - tube

1шт.

32

13-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

1шт.

33

92-5

LOCK WASHER,5/16"

med sect. 5/16"

1шт.

34

9635082

NUT,5/16" - 18, Gr 5

- hex. (5/16" - 18 NC)

1шт.

35

R15257

CLAMP

- tube

2шт.

36

13-536

BOLT,Hex, 5/16" - 18 x 2-1/4", Gr 5

1шт.

37

D35217

BUSHING

SPACER - tube clamp

1шт.

38

92-5

LOCK WASHER,5/16"

med sect. 5/16"

1шт.

39

9635082

NUT,5/16" - 18, Gr 5

- hex. (5/16" - 18 NC)

1шт.

40

D33289

HOSE ASSY.

HOSE - pump to control valve (Rear) 36" long

1шт.

41

D40471

CLAMP

- hose

2шт.

42

13-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5, Full Thd

1шт.

43

92-6

LOCK WASHER,3/8"

med. sect. 3/8"

1шт.

44

25-106

NUT,3/8"-16, G5

- hex. (3/8" - 16 NC)

1шт.

45

218-5124

ELBOW,90 Degree Elbow, 1-5/16" - 12 Male JIC x 1-1/16" - 12 Male ORB

Adjustable, Includes: Ref. 46 90º, 1 5/16"-12, 37º x 1 1/16"-12, O-Ring

1шт.

46

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

SEAL - "O" ring

1шт.

47

REF

INSTRUCTION

VALVE - hydraulic control Parker series VDP12 (See figures 172 thru 178 for proper valves)

1шт.

48

D28890

CONNECTOR, ELEC

CONNECTOR - straight, male, Includes: Ref. 49

1шт.

49

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

SEAL - "O" ring

1шт.

50

D25135

X

ELBOW - special (Dozer Models only)

1шт.

50

D25183

ELBOW

- special (Loader Models only)

1шт.

51

D33888

HOSE - control valve to reservoir (39" long)

1шт.

52

D36903

TUBE - to filter (D32254 and D43567 filter)

1шт.

52

D33886

TUBE - to filter (D25664 filter)

1шт.

53

218-488

ELBOW,90 Degree Elbow, 1-5/16" - 12 Male JIC x 1" - 11-1/2 Male NPTF

- 90 degree, male (D32254 and D43567 filter)

1шт.

53

218-496

ELBOW,90 Degree Elbow, 1-5/16" - 12 Male JIC x 3/4" - 14 Male NPTF

- 90 degree, male (D25664 filter)

1шт.

54

REF

INSTRUCTION

FILTER AND COVER ASSEMBLY - hydraulic oil (See figures 164 and 168 for proper filter and cover assembly)

1шт.

55

R15536

VALVE

- relief, 10 to 20 P.S.I.

1шт.

56

221-1084

REDUCER,Hex, 1/4" x 1/8" NPT

BUSHING - reducing

1шт.

57

221-431

TEE

- pipe

1шт.

58

R15538

VALVE

- breather, 2 to 5 P.S.I.

1шт.

59

221-1130

PIPE,Nipple, 1/4" NPT x 7/8"

NIPPLE - pipe (1/4" NPT x 7/8")

1шт.

60

13-664

BOLT,Hex, 3/8" - 16 x 4", Gr 5

3шт.

61

92-6

LOCK WASHER,3/8"

med. sect. 3/8"

3шт.

62

25-106

NUT,3/8"-16, G5

- hex. (3/8" - 16 NC)

3шт.

63

86512512

PLUG,7/8" - 14 ORB

Valve ports (Drawbar Models only), Incl. Ref. 64 Hex Hd, 7/8"-14 ORB

4шт.

64

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk

1шт.

65

D28087

TUBE - pump lubrication (D25347, D25569, or D49613 pumps)

1шт.

66

219-82

ELBOW,90 Degree, 1/8"-27

- 90 degrees

1шт.

67

219-60

LUBE NIPPLE,1/8" - 27 Female NPTF

FITTING - grease, straight (1/8" NPT)

1шт.
