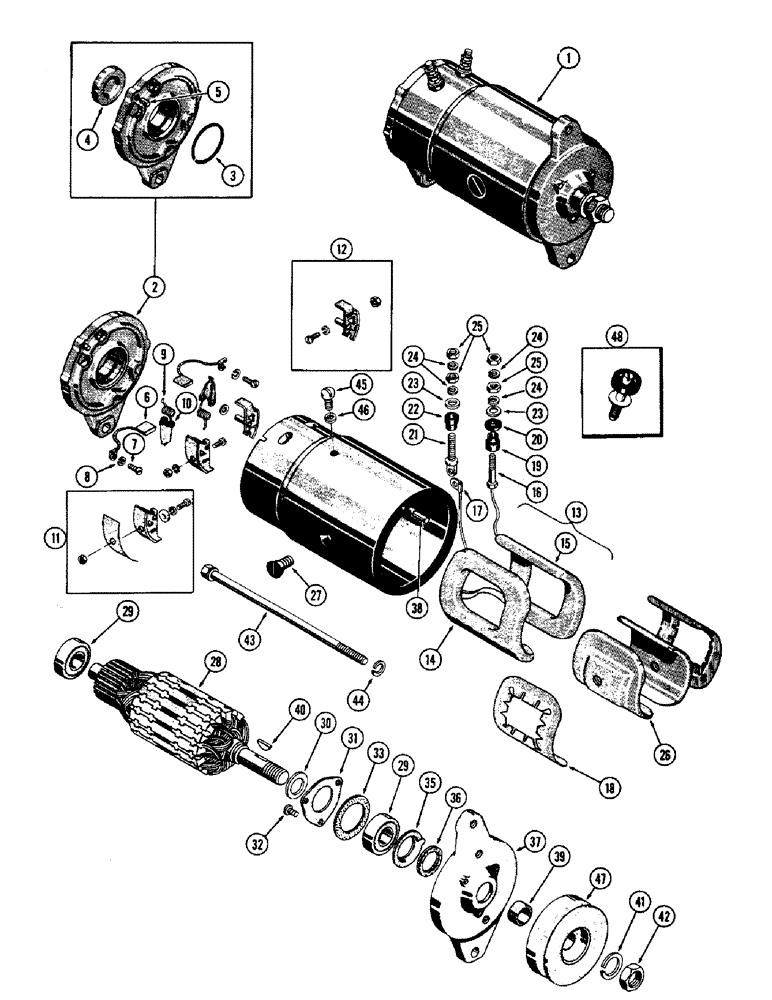

Запчасти Case 310G (112) - D34009 GENERATOR (ENCLOSED), OPTIONAL WITH GAS OR DIESEL (06) - ELECTRICAL SYSTEMS

1

D34009

GENERATOR

ASSY - (Delco #1102339), Includes: Ref. 2 - 46

1шт.

2

A25416

HOUSING ASSY - commutator end, Includes: Ref. 3 - 5

1шт.

3

R15087

CLAMP - bearing

1шт.

4

A42032

PLUG - end

1шт.

5

R15095

PIN - dowel

1шт.

6

R4286

BRUSH, COMMUTATOR

BRUSH KIT - (Set of 2)

2шт.

7

173-223

SCREW,Sl Rnd Hd, #6 - 32 x 1/4"

- brush lead, #6-24 x 1/4" rd. hd.

2шт.

8

192-15

LOCK WASHER,Helical Spring, #6, 0.145" ID, CST, ZND

WASHER - lock, #6

2шт.

9

R16161

VALVE SPRING

SPRING - brush tenison

2шт.

10

R15090

ARM

- brush

2шт.

11

A40704

NOZZLE HOLDER

HOLDER ASSY - insulated, brush

1шт.

12

A40703

NOZZLE HOLDER

HOLDER ASSY - grounded, brush

1шт.

13

A40698

COIL

ASSY - field, Includes: Ref. 14 - 18

1шт.

14

NSS

NOT SOLD SEPARAT

FIELD - R.H.

1шт.

15

NSS

NOT SOLD SEPARAT

FIELD - L.H.

1шт.

16

NSS

NOT SOLD SEPARAT

STUD - field terminal (Order ref. 48)

1шт.

17

R16151

CLIP - armature terminal

1шт.

18

A25447

ISOLATOR

INSULATOR - coil

2шт.

19

R15077

X

BUSHING - field terminal stud (See ref. 48)

1шт.

20

R16148

WASHER

- insulation, term. stud

1шт.

21

A40701

STUD

- armature terminal

1шт.

22

R16147

BUSHING

- insulating, armature term.

1шт.

23

A41927

WASHER

- plain, terminal stud

2шт.

24

192-17

LOCK WASHER,#12

WASHER - lock, #12

4шт.

25

129-18

NUT,#12-24

- term. stud, hex. #12-24

4шт.

26

A40736

SHOE - pole

2шт.

27

74-610

SCREW,3/8" - 24 x 5/8"

- shoe pole, 3/8 x 5/8" N.C. flat hd.

2шт.

28

A25545

ARMATURE

1шт.

29

R15094

BALL BEARING,0.6693" ID x 1.5748" OD x 0.4724"

BEARING - armature shaft

2шт.

30

R15100

WASHER - spacer, drive end

1шт.

31

R15101

PLATE

- bearing retainer

1шт.

32

A41959

SCREW,#10 - 32 x 3/8"

- bearing plate

3шт.

33

R16170

GASKET

- bearing plate

1шт.

35

R16169

LARGE PLATE

PLATE - felt washer retainer

1шт.

36

R16168

WASHER

- felt

1шт.

37

A25444

HOUSING - drive end

1шт.

38

R15041

PIN - dowel

1шт.

39

R15099

COLLAR - drive end

1шт.

40

126-111

WOODRUFF KEY,#5, 1/8" x 5/8", HT

Armature shaft #5, 1/8" x 5/8", HT

1шт.

41

R16171

SPRING WASHER

- lock, armature shaft

1шт.

42

A25546

NUT

- drive shaft

1шт.

43

R15106

BOLT

- thru

2шт.

44

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, 5/16"

2шт.

45

174-217

SCREW - coil, 1/4 x 5/16" N.F. rd. hd.

1шт.

46

192-19

LOCK WASHER,Helical Spring, 0.256" ID, CST, ZND

WASHER, LOCK, 1/4"

1шт.

47

A25454

PULLEY

- drive (Not part of D34009. Order separate)

1шт.

48

A40702

STUD

ASSY - field term. (Includes ref. 19)

1шт.
