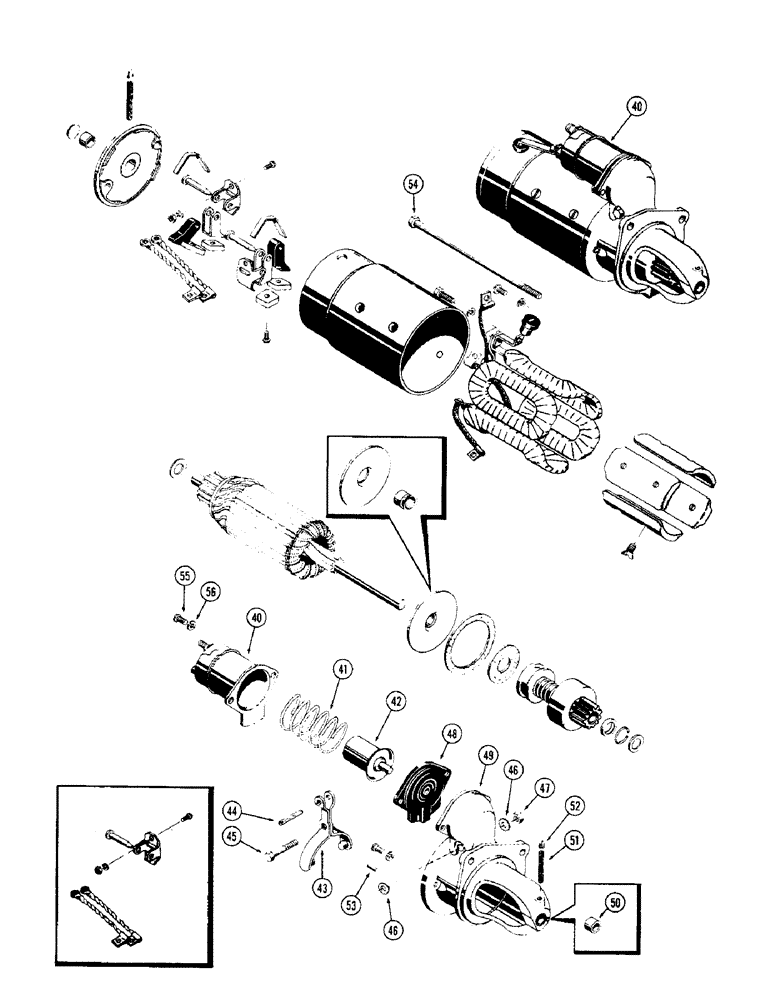

Запчасти Case 310G (110) - D32189 STARTER, (188D) ENGINE (06) - ELECTRICAL SYSTEMS

D32189

STARTER ASSY - (Delco #1107574) (Order D45731), Includes: Ref. 40 - 56 and 2 - 39 on figure 108

1шт.

D39988

X

STARTER ASSY - (Delco #1107598) (Order D45731), Includes: Ref. 40 - 56 and 2 - 39 on figure 108

1шт.

D45731

X

STARTER ASSY - (Delco #1108688), Includes: Ref. 40 - 56 and 2 - 39 on figure 108

1шт.

40

G44891

SOLENOID

ASSY - (Repairs figure 111A)

1шт.

41

A40221

SPRING

- plunger return

1шт.

42

A40218

PLUNGER

- solenoid

1шт.

43

A40220

LEVER

- shift

1шт.

44

138-93

LOCK PIN,3/16" x 13/16", Slotted

Pin, 3/16" x 13/16", Slotted

1шт.

45

A40520

BOLT

- pivot, shift lever

1шт.

46

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, 5/16"

2шт.

47

425-145

JAM NUT,Jam, 5/16"-18, G5

1шт.

48

A25410

BOOT

- solenoid assy

1шт.

49

A25550

HOUSING ASSY - drive (For D32189 only), Includes: Ref. 50 - 52

1шт.

49

A40226

FRAME

HOUSING ASSY - drive (For D39988 & D45731), Includes: Ref. 50 - 52

1шт.

50

A25387

BEARING

BUSHING

1шт.

51

R15023

WICK

- oil

1шт.

52

221-1041

PLUG

- pipe, 1/8" slotted headless

1шт.

53

R15041

PIN - dowel, drive housing

1шт.

54

A25552

BOLT

BOLT - thru

2шт.

55

173-201

SCREW,Rnd Hd, 1/4" - 20 x 1/2"

- solenoid to hsg., 1/4 x 1/2" N.C. rd. hd.

2шт.

56

192-19

LOCK WASHER,Helical Spring, 0.256" ID, CST, ZND

WASHER, LOCK, 1/4"

2шт.
