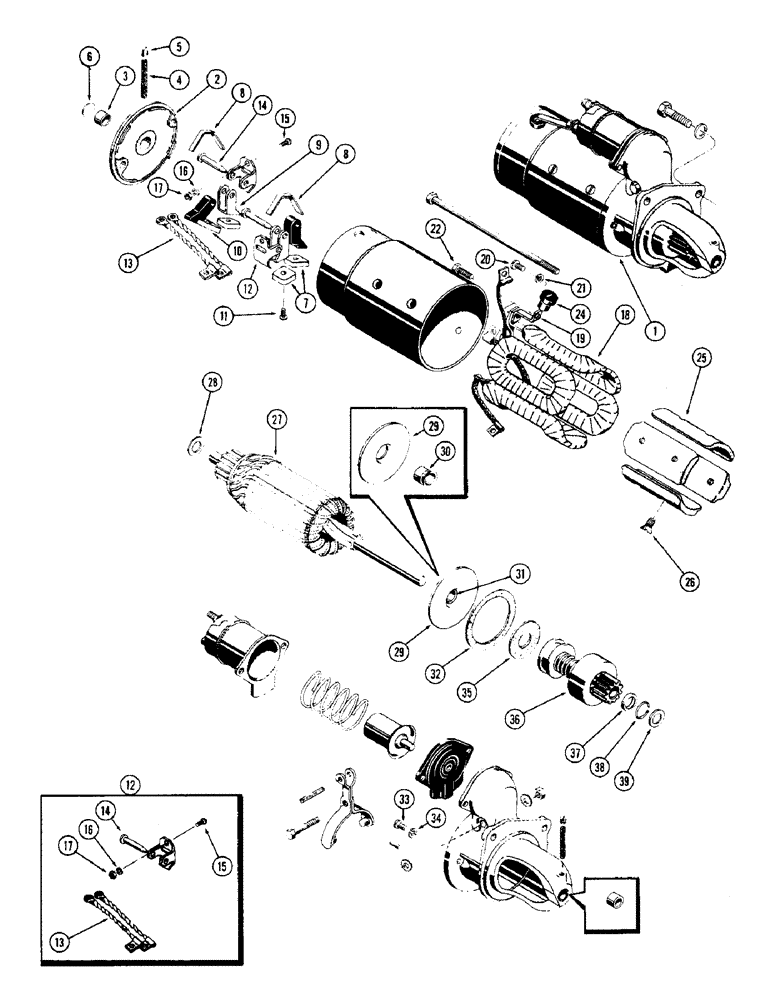

Запчасти Case 310G (108) - D32189 STARTER, (188D) ENGINE (06) - ELECTRICAL SYSTEMS

1

D32189

SPARE PART STARTER ASSY - (Delco #1107574) (Order D45731), Includes: Ref. 2 - 39 and 40 - 56 on figure 110

1шт.

1

D39988

X

STARTER ASSY - (Delco #1107598) (Order D45731), Includes: Ref. 2 - 39 and 40 - 56 on figure 110

1шт.

1

D45731

X

STARTER ASSY - (Delco #1108688), Includes: Ref. 2 - 39 and 40 - 56 on figure 110

1шт.

1

104202A2R

REMAN-STARTER

Remanufactured Starter

1шт.

1

104202A1C

CORE-STARTER

Return Part Number

1шт.

2

A25304

FRAME

HEAD ASSY - commutator end, Includes: Ref. 3 - 6

1шт.

3

R15020

BUSHING

BUSHING - armature shaft

1шт.

4

A41979

WICK

WICK - oil

1шт.

5

221-1041

PLUG

PLUG - pipe, 1/8" slotted headless

1шт.

6

R15021

PLUG

PLUG - expansion

1шт.

7

A25356

BRUSH, COMMUTATOR

BRUSH BRUSH - armature

4шт.

8

A25359

SPRING

SPRING - brush

2шт.

9

A40217

HOLDER

HOLDER - grounded, brush

2шт.

10

R15027

HOLDER

HOLDER - insulated, brush

2шт.

11

D32481

SELF-TAP SCREW,Sltd Pan Hd, #8-32 x 13/16", w/LW

SCREW - brush (Includes lockwasher)

4шт.

12

A25379

KIT

SUPPORT KIT - brush holder replacement, Includes: Ref. 13 - 17

2шт.

13

A42494

ELECTRICAL WIRE

WIRE LEAD - brush ground

1шт.

14

A41983

PIN

PIN - brush holder

1шт.

15

173-212

SCREW,Sl Rnd Hd, #10 - 24 x 1/2"

SCREW - #10-24 x 1/2" rd. hd.

2шт.

16

192-18

LOCK WASHER,Helical Spring, #10, 0.196" ID, CST, ZND

WASHER, LOCK, #10

2шт.

17

R15032

X

NUT - support screw (#10-24 hex.)

2шт.

18

A25548

COIL

COIL ASSY - field

1шт.

19

A40225

CONNECTOR, ELEC

CONNECTOR CONNECTOR -, Serial Range: field-solenoid

1шт.

20

173-221

SCREW,Sl Rnd Hd, #10 - 32 x 7/16"

SCREW - conn. to field, #10-32 x 7/16" rd. hd.

1шт.

21

192-18

LOCK WASHER,Helical Spring, #10, 0.196" ID, CST, ZND

WASHER, LOCK, #10

1шт.

22

A42023

SCREW,#10 - 32 x 1/2"

SCREW -, Serial Range: connector-solenoid

1шт.

24

A41980

GROMMET

GROMMET - connector

1шт.

25

A25391

SHOE

SHOE - pole

4шт.

36

74-610

SCREW,3/8" - 24 x 5/8"

SCREW - shoe, 3/8 x 5/8" N.F. flat hd.

8шт.

27

A25547

ARMATURE

ARMATURE

1шт.

28

A41917

WASHER,14.25mm ID x 24.89mm OD x 1.57mm Thk

WASHER - brake

1шт.

29

A25549

PLATE

PLATE ASSY - center bearing (For D32189 only), Includes: Ref. 30 and 31

1шт.

29

A40215

PLATE ASSY.

PLATE ASSY - center bearing (For D39988 & D45731), Includes: Ref. 30 and 31

1шт.

30

A42125

BUSHING

BUSHING - center (For D39988 & D45731)

1шт.

31

A25409

SEAL

SEAL - oil (For D32189 only)

1шт.

32

A42879

GASKET

GASKET - bearing plate (For D32189 only)

1шт.

33

A41959

SCREW,#10 - 32 x 3/8"

SCREW - bearing plate

2шт.

34

192-18

LOCK WASHER,Helical Spring, #10, 0.196" ID, CST, ZND

WASHER, LOCK, #10

2шт.

35

R15043

WASHER

WASHER - thrust, drive

1шт.

36

A25337

X

DRIVE ASSY - (For D32189 & D39988)

1шт.

36

A41871

DRIVE

DRIVE ASSY - (For D45731)

1шт.

37

R15049

COLLAR

COLLAR - pinion stop

1шт.

38

R15048

RING

RING - snap, stop collar

1шт.

39

A25385

WASHER

WASHER - thrust, starter drive

1шт.
