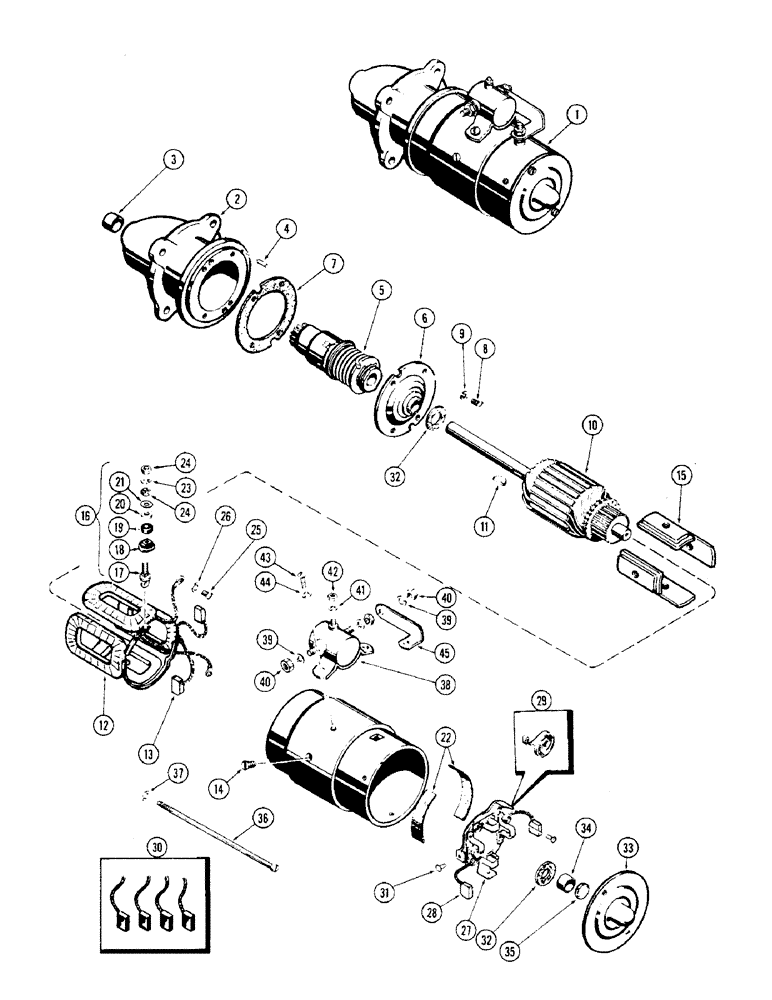

Запчасти Case 310G (094) - A36584 STARTER, (148B) ENGINE - NEGATIVE GROUND (06) - ELECTRICAL SYSTEMS

1

A36584

STARTING MOTOR

STARTER ASSY - (Prestolite #MDU-7104), Includes: Ref. 2 - 45

1шт.

1

104223A1R

REMAN-STARTER

Remanufactured Stater, 12 volt Presto Inertia

1шт.

1

104223A1C

CORE-STARTER

Return Part Number, Starter 12 volt Presto Inertia

1шт.

2

A25610

HOUSING

HOUSING ASSY - starter drive, Includes: Ref. 3 and 4

1шт.

3

A25611

BEARING

BEARING - bronze

1шт.

4

NSS

NOT SOLD SEPARAT

PIN - dowel

1шт.

5

A40272

DRIVE

DRIVE ASSY - starter

1шт.

5

87421537

REMAN-STARTER DRIVE

Remanufactured Stater

1шт.

5

87421538

CORE-STARTER

Return Part Number, Starter

1шт.

6

A43257

BUSHING

BEARING ASSY - intermediate (Replaces G45478)

1шт.

7

G46910

GASKET

GASKET - bearing plate

1шт.

8

173-221

SCREW,Sl Rnd Hd, #10 - 32 x 7/16"

SCREW - mach., #10-32 x 7/16" rd. hd.

4шт.

9

192-18

LOCK WASHER,Helical Spring, #10, 0.196" ID, CST, ZND

WASHER, LOCK, #10

4шт.

10

A25607

ARMATURE

SPARE PART ARMATURE

1шт.

11

126-12

WOODRUFF KEY,#6, 5/32" x 5/8"

WOODRUFF KEY, , Armature shaft #6, 5/32" x 5/8"

1шт.

12

A25604

PACKAGE

COIL ASSY - field, Includes: Ref. 13

1шт.

13

NSS

NOT SOLD SEPARAT

BRUSH - (Order A25603 ref. 30)

2шт.

14

NSS

NOT SOLD SEPARAT

SCREW - pole shoe

4шт.

15

NSS

NOT SOLD SEPARAT

SHOE - pole

4шт.

16

A40278

KIT

TERMAINAL KIT, Includes: Ref. 17 - 22

1шт.

17

NSS

NOT SOLD SEPARAT

STUD - field terminal

1шт.

18

NSS

NOT SOLD SEPARAT

WASHER - insulation, inner

1шт.

19

NSS

NOT SOLD SEPARAT

BUSHING - insulation

1шт.

20

NSS

NOT SOLD SEPARAT

WASHER - insulation, outer

1шт.

21

NSS

NOT SOLD SEPARAT

WASHER - plain

1шт.

22

NSS

NOT SOLD SEPARAT

INSULATION - field coil

1шт.

23

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, 5/16"

1шт.

24

9635082

NUT,5/16" - 18, Gr 5

NUT, 5/16"-18, G5

2шт.

25

173-74

SCREW,Sl Rnd Hd, #8 - 32 x 5/16"

SCREW - term. lead, #8-32 x 5/16" rd. hd.

1шт.

26

192-16

LOCK WASHER,Helical Spring, #8, 0.17" ID, CST, ZND

WASHER - lock, #8

1шт.

27

A25612

PLATE

PLATE ASSY - brush holder, Includes: Ref. 28

1шт.

28

NSS

NOT SOLD SEPARAT

BRUSH - (Order A24503 ref. 30)

2шт.

29

A40275

SPRING

SPRING SET - brush tension (Set of 4)

1шт.

30

A25603

BRUSH SET

BRUSH SET - (Set of 4)

1шт.

31

NSS

NOT SOLD SEPARAT

RIVET - brush plate

3шт.

A40277

KIT

THRUST WASHER KIT - armature, Includes: Ref. 32

1шт.

32

NSS

NOT SOLD SEPARAT

WASHER - thrust (3/64" thick)

1шт.

32

NSS

NOT SOLD SEPARAT

WASHER - thrust (1/16" thick)

1шт.

32

NSS

NOT SOLD SEPARAT

WASHER - thrust (5/64" thick)

1шт.

33

A40274

HEAD

HEAD ASSY - commutator end, Includes: Ref. 34 and 35

1шт.

34

NSS

NOT SOLD SEPARAT

BUSHING - armature shaft

1шт.

35

NSS

NOT SOLD SEPARAT

OILER - felt washer

1шт.

36

A25601

SCREW

BOLT - thru

2шт.

37

192-19

LOCK WASHER,Helical Spring, 0.256" ID, CST, ZND

WASHER, LOCK, 1/4"

2шт.

38

A40795

SOLENOID

SOLENOID ASSY

1шт.

39

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, 5/16"

3шт.

40

129-122

NUT,5/16"-24, G5

NUT, 5/16"-24, G5

3шт.

41

192-18

LOCK WASHER,Helical Spring, #10, 0.196" ID, CST, ZND

WASHER, LOCK, #10

1шт.

42

129-37

NUT,#10-32

NUT, #10-32

1шт.

43

174-93

SCREW,Sl Rnd Hd, #10 - 32 x 1/4"

SCREW - #10-32 x 1/4" rd. hd.

2шт.

44

193-26

LOCK WASHER,Int Tooth, #10

WASHER, LOCK, Int Tooth, #10

2шт.

45

G46297

CONNECTOR, ELEC

CONNECTOR CONNECTOR - solenoid

1шт.
