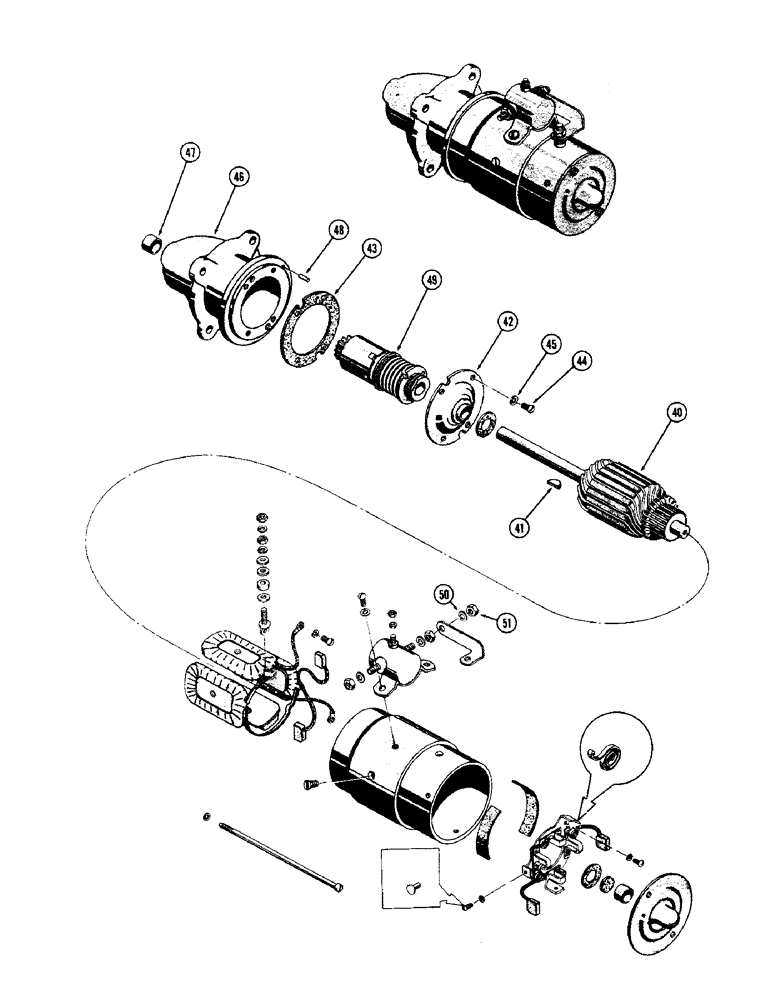

Запчасти Case 310G (092) - G44888 STARTER, (148B) ENGINE - POSITIVE GROUND (06) - ELECTRICAL SYSTEMS

G44888

X

STARTER ASSY - (Continued) (Order A36584), Includes: Ref. 40 - 51 and 2 - 39 on figure 90

1шт.

104198A2R

REMAN-STARTER

Remanufactured Stater

1шт.

104198A1C

CORE-STARTER

Return Part Number, Starter

1шт.

40

A25607

ARMATURE

SPARE PART ARMATURE

1шт.

41

126-12

WOODRUFF KEY,#6, 5/32" x 5/8"

WOODRUFF KEY, , Armature shaft #6, 5/32" x 5/8"

1шт.

42

G45478

PLATE

BEARING ASSY - intermediate

1шт.

43

G46910

GASKET

GASKET - bearing plate

1шт.

44

173-221

SCREW,Sl Rnd Hd, #10 - 32 x 7/16"

SCREW - mach, #10-32 x 7/16" rd. hd.

4шт.

45

192-18

LOCK WASHER,Helical Spring, #10, 0.196" ID, CST, ZND

WASHER, LOCK, #10

4шт.

46

A25610

HOUSING

HOUSING ASSY - starter drive, Includes: Ref. 47 and 48

1шт.

47

A25611

BEARING

BEARING - bronze

1шт.

48

NSS

NOT SOLD SEPARAT

PIN - dowel

1шт.

49

A40272

DRIVE

DRIVE ASSY - starter

1шт.

49

87421537

REMAN-STARTER DRIVE

Remanufactured Stater

1шт.

49

87421538

CORE-STARTER

Return Part Number, Starter

1шт.

50

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, , Solenoid term. 5/16"

1шт.

51

129-122

NUT,5/16"-24, G5

NUT, 5/16"-24, G5

1шт.
