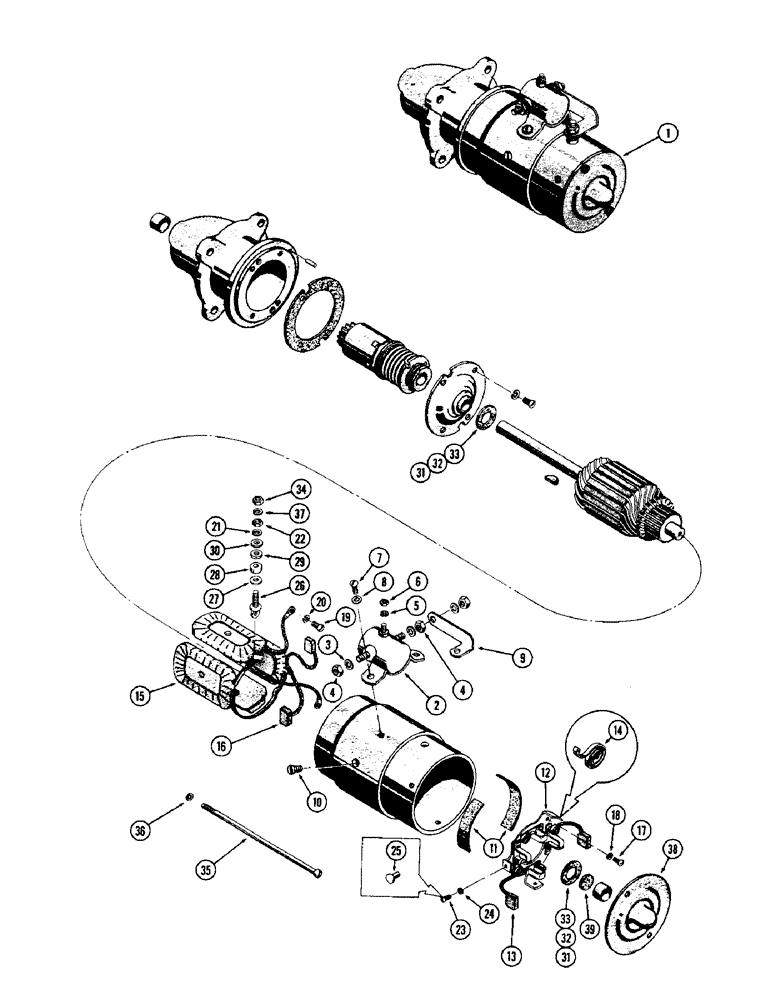

Запчасти Case 310G (090) - G44888 STARTER, (148B) ENGINE - POSITIVE GROUND (06) - ELECTRICAL SYSTEMS

1

G44888

X

STARTER ASSY - (Prestolite #MDU-7104) (Order A36584), Includes: Ref. 2 - 39 and 40 - 51 on figure 92

1шт.

1

104198A2R

REMAN-STARTER

Remanufactured Starter

1шт.

1

104198A1C

CORE-STARTER

Return Part Number

1шт.

2

A40795

SOLENOID

SOLENOID - starter, Includes: Ref. 3 - 6

1шт.

3

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, 5/16"

2шт.

4

129-122

NUT,5/16"-24, G5

NUT, 5/16"-24, G5

2шт.

5

192-18

LOCK WASHER,Helical Spring, #10, 0.196" ID, CST, ZND

WASHER, LOCK, #10

1шт.

6

129-37

NUT,#10-32

NUT, #10-32

1шт.

7

174-93

SCREW,Sl Rnd Hd, #10 - 32 x 1/4"

SCREW - #10-32 x 1/4" rd. hd.

2шт.

8

193-6

LOCK WASHER,Ext Tooth, #10

WASHER, LOCK, Ext Tooth, #10

2шт.

9

NSS

NOT SOLD SEPARAT

BAR - connecting, Serial Range: solenoid-starter

1шт.

10

NSS

NOT SOLD SEPARAT

SCREW - pole shoe

4шт.

11

NSS

NOT SOLD SEPARAT

INSULATION - field

2шт.

12

A25612

PLATE

PLATE ASSY - brush, Includes: Ref. 13 and 14

1шт.

13

NSS

NOT SOLD SEPARAT

BRUSH - grounded (Order A25603)

1шт.

14

A40275

SPRING

SPRING - brush (Set of 4)

1шт.

15

A25604

PACKAGE

COIL ASSY - field, Includes: Ref. 16

1шт.

16

A25603

BRUSH SET

BRUSH SET - service

1шт.

17

NSS

NOT SOLD SEPARAT

SCREW - coil ground lead

1шт.

18

NSS

NOT SOLD SEPARAT

WASHER - lock, lead screw

1шт.

19

173-74

SCREW,Sl Rnd Hd, #8 - 32 x 5/16"

SCREW - term. lead, #8-32 x 5/16" rd. hd.

1шт.

20

192-16

LOCK WASHER,Helical Spring, #8, 0.17" ID, CST, ZND

WASHER - lock, #8

1шт.

21

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, , Term. stud 5/16"

1шт.

22

9635082

NUT,5/16" - 18, Gr 5

NUT, , Term. stud (Inner) 5/16"-18, G5

1шт.

23

NSS

NOT SOLD SEPARAT

SCREW - brush plate mounting

3шт.

24

NSS

NOT SOLD SEPARAT

WASHER - lock, mounting screw

3шт.

25

NSS

NOT SOLD SEPARAT

RIVET - brush plate ground lead

1шт.

A40278

KIT

PACKAGE - terminal stud, Includes: Ref. 26 - 30

1шт.

26

NSS

NOT SOLD SEPARAT

STUD - terminal

1шт.

27

NSS

NOT SOLD SEPARAT

WASHER - insulating, inner

1шт.

28

NSS

NOT SOLD SEPARAT

BUSHING - insulating

1шт.

29

NSS

NOT SOLD SEPARAT

WASHER - insulating, outer

1шт.

30

NSS

NOT SOLD SEPARAT

WASHER - plain

1шт.

A40277

KIT

PACKAGE - armature thrust washers, Includes: Ref. 31 - 33

1шт.

31

NSS

NOT SOLD SEPARAT

WASHER - armature thrust (3/64" thick)

1шт.

32

NSS

NOT SOLD SEPARAT

WASHER - armature thrust (1/16" thick)

1шт.

33

NSS

NOT SOLD SEPARAT

WASHER - armature thrust (5/64" thick)

1шт.

34

129-275

X

NUT - term. end, 5/16" N.C.

1шт.

35

A25601

SCREW

BOLT - thru

2шт.

36

192-19

LOCK WASHER,Helical Spring, 0.256" ID, CST, ZND

WASHER, LOCK, 1/4"

2шт.

37

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, , Term. nut 5/16"

1шт.

38

A25605

HEAD

HEAD ASSY - commutator end, Includes: Ref. 39

1шт.

39

NSS

NOT SOLD SEPARAT

FELT

1шт.
