Запчасти Case 310G (088) - A36279 GENERATOR, (148B) ENGINE - NEGATIVE GROUND (06) - ELECTRICAL SYSTEMS

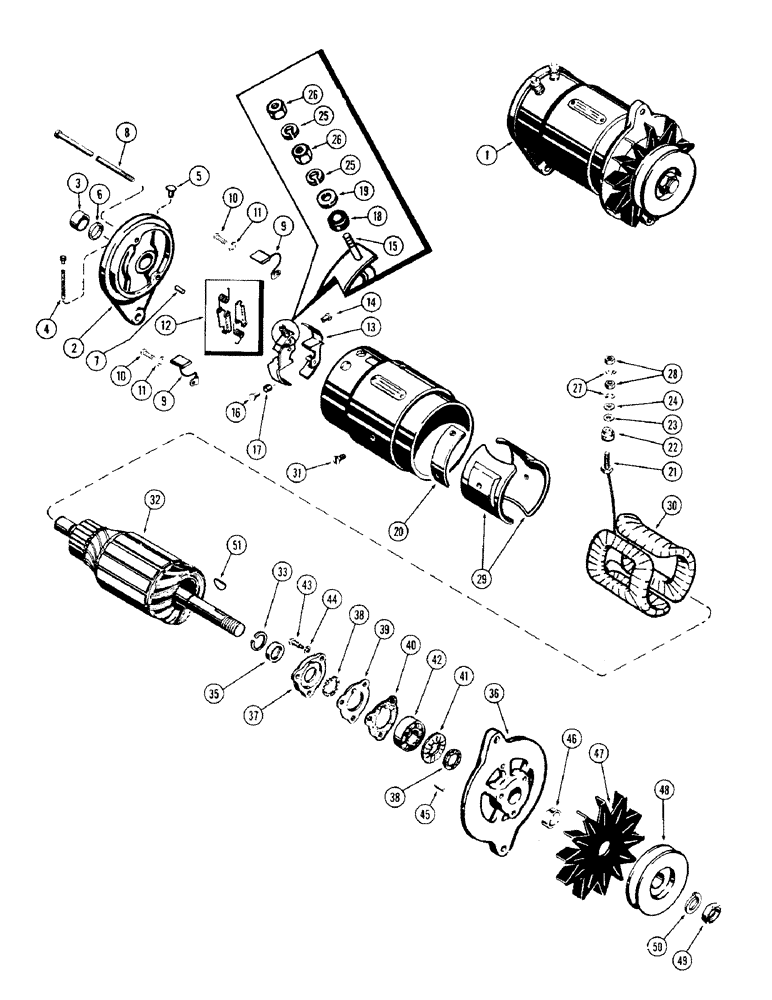

Схема запчастей Case 310G - (088) - A36279 GENERATOR, (148B) ENGINE - NEGATIVE GROUND (06) - ELECTRICAL SYSTEMS

Артикул

Название

Примечание

Количество

1

A36279

X

GENERATOR ASSY - (Prestolite #GJC-7404A) (Used for production) (Order F21239), Includes: Ref. 2 - 51

1шт.

1

F21239

GENERATOR ASSY - (Prestolite #GJT-7404S), Includes: Ref. 2 - 51

1шт.

2

A25620

HEAD ASSY - commutator end, Includes: Ref. 3 - 7

1шт.

3

A25623

BUSHING

BEARING - bronze

1шт.

4

NSS

NOT SOLD SEPARAT

WICK - oiler

1шт.

5

A25624

OILER

1шт.

6

NSS

NOT SOLD SEPARAT

RETAINER - oil

1шт.

7

NSS

NOT SOLD SEPARAT

PIN - dowel

1шт.

8

A25629

BOLT - thru

2шт.

9

F83422

BRUSH ASSY.

BRUSH SET

1шт.

10

173-224

SCREW,Sl Rnd Hd, #8 - 32 x 1/4"

- brush lead, #8-32 x 1/4" rd. hd.

2шт.

11

192-16

LOCK WASHER,Helical Spring, #8, 0.17" ID, CST, ZND

WASHER - lock, #8

2шт.

12

A40276

SPRING

ARM KIT - brush

1шт.

13

NSS

NOT SOLD SEPARAT

HOLDER - brush ground

1шт.

14

NSS

NOT SOLD SEPARAT

RIVET - ground brush holder

1шт.

A40279

STUD

TERMINAL KIT, Includes: Ref. 15 - 24

1шт.

15

NSS

NOT SOLD SEPARAT

HOLDER - insulated brush (Includes terminal)

1шт.

16

NSS

NOT SOLD SEPARAT

RIVET - insulated brush holder

1шт.

17

NSS

NOT SOLD SEPARAT

BUSHING - rivet

1шт.

18

NSS

NOT SOLD SEPARAT

BUSHING - armature terminal

1шт.

19

NSS

NOT SOLD SEPARAT

WASHER - plain, armature terminal

1шт.

20

NSS

NOT SOLD SEPARAT

INSULATION - brush holder

1шт.

21

NSS

NOT SOLD SEPARAT

STUD - field terminal

1шт.

22

NSS

NOT SOLD SEPARAT

BUSHING - field terminal

1шт.

23

NSS

NOT SOLD SEPARAT

WASHER - insulation, field terminal

1шт.

24

NSS

NOT SOLD SEPARAT

WASHER - plain, field terminal

1шт.

25

192-19

LOCK WASHER,Helical Spring, 0.256" ID, CST, ZND

WASHER, LOCK, 1/4"

2шт.

26

129-21

NUT,#2-64

- terminal, 1/4" N.F. hex.

2шт.

27

192-18

LOCK WASHER,Helical Spring, #10, 0.196" ID, CST, ZND

WASHER, LOCK, #10

2шт.

28

129-37

NUT,#10-32

2шт.

29

NSS

NOT SOLD SEPARAT

SHOE - pole

2шт.

30

A40273

COIL ASSY - field (Includes term. stud)

1шт.

31

NSS

NOT SOLD SEPARAT

SCREW - pole shoe

1шт.

32

A25625

ARMATURE

ASSY, Includes: Ref. 33

1шт.

33

A25626

RING

- snap

1шт.

35

NSS

NOT SOLD SEPARAT

SLEEVE - bearing retainer

1шт.

36

A25616

HEAD ASSY - drive end, Includes: Ref. 37 - 43

1шт.

37

A25631

RETAINER - bearing

1шт.

38

A25617

WASHER - felt

2шт.

39

A25632

RETAINER - felt washer inner

1шт.

40

A25634

GASKET - bearing retainer

1шт.

41

A25633

RETAINER - felt washer outer

1шт.

42

A25618

BALL BEARING,0.6693" ID x 1.5748" OD x 0.4724"

BEARING - ball

1шт.

43

173-237

SCREW,Sl Rnd Hd, #10 - 32 x 1/2"

- #10-32 x 1/2" rd. hd.

2шт.

44

192-18

LOCK WASHER,Helical Spring, #10, 0.196" ID, CST, ZND

WASHER, LOCK, , Includes: Ref. 45 #10

2шт.

45

NSS

NOT SOLD SEPARAT

PIN - dowel

1шт.

46

14504

SPACER - armature shaft

1шт.

47

14503

FAN - ventilating

1шт.

48

G4521

PULLEY

- drive

1шт.

49

A25619

NUT - armature shaft

1шт.

50

A25630

WASHER - lock

1шт.

51

126-11

WOODRUFF KEY,#5, 1/8" x 5/8"

1шт.

Выбрано товаров: 52
