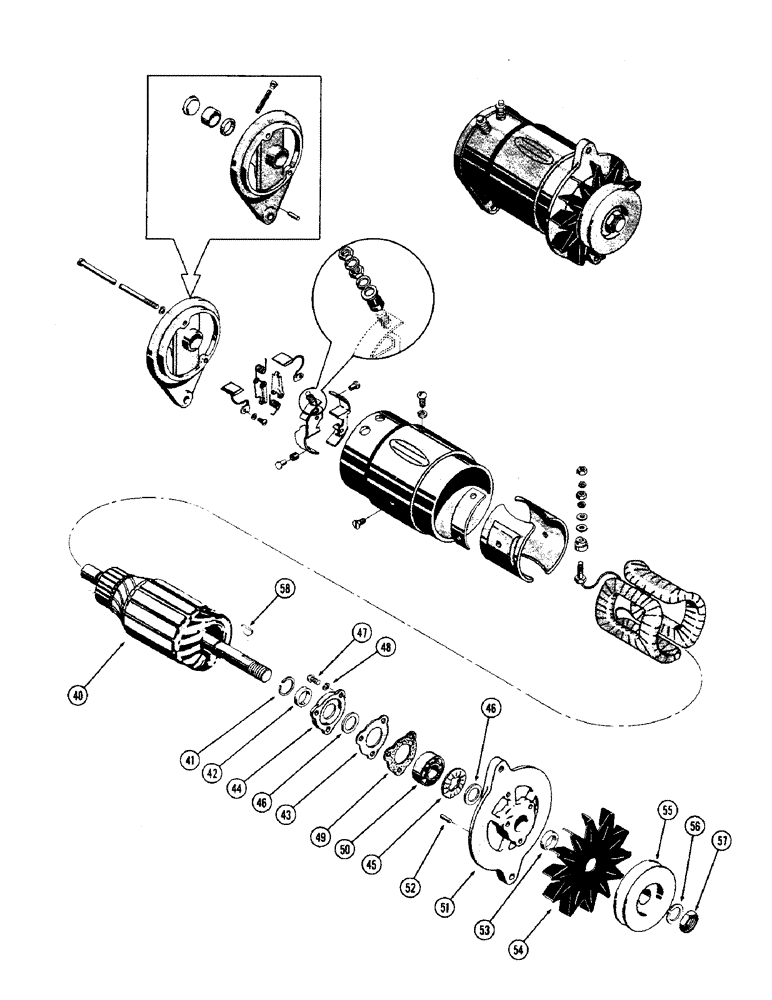

Запчасти Case 310G (086) - F83421 GENERATOR, (148B) ENGINE - POSITIVE GROUND (06) - ELECTRICAL SYSTEMS

40

A25886

ARMATURE

ASSY., Includes: Ref. 41

1шт.

41

A25626

RING

- snap

1шт.

42

NSS

NOT SOLD SEPARAT

RETAINER - armature shaft

1шт.

A25616

HEAD ASSY - drive end, Includes: Ref. 43 - 52

1шт.

43

A25632

RETAINER - felt washer, inner

1шт.

44

A25631

RETAINER - bearing

1шт.

45

A25633

RETAINER - felt washer, outer

1шт.

46

A25617

WASHER - felt

2шт.

47

173-237

SCREW,Sl Rnd Hd, #10 - 32 x 1/2"

- #10-32 x 1/2" rd. hd.

2шт.

48

192-18

LOCK WASHER,Helical Spring, #10, 0.196" ID, CST, ZND

WASHER, LOCK, #10

2шт.

49

A25634

GASKET - bearing retainer

1шт.

50

A25618

BALL BEARING,0.6693" ID x 1.5748" OD x 0.4724"

BEARING - ball

1шт.

51

NSS

NOT SOLD SEPARAT

HEAD - (Order A25616)

1шт.

52

NSS

NOT SOLD SEPARAT

PIN - dowel

1шт.

53

14504

SPACER - armature shaft

1шт.

54

14503

FAN - ventilation

1шт.

55

G4521

PULLEY

- drive

1шт.

56

A25630

WASHER - lock

1шт.

57

A25619

NUT - armature shaft

1шт.

58

126-11

WOODRUFF KEY,#5, 1/8" x 5/8"

1шт.
