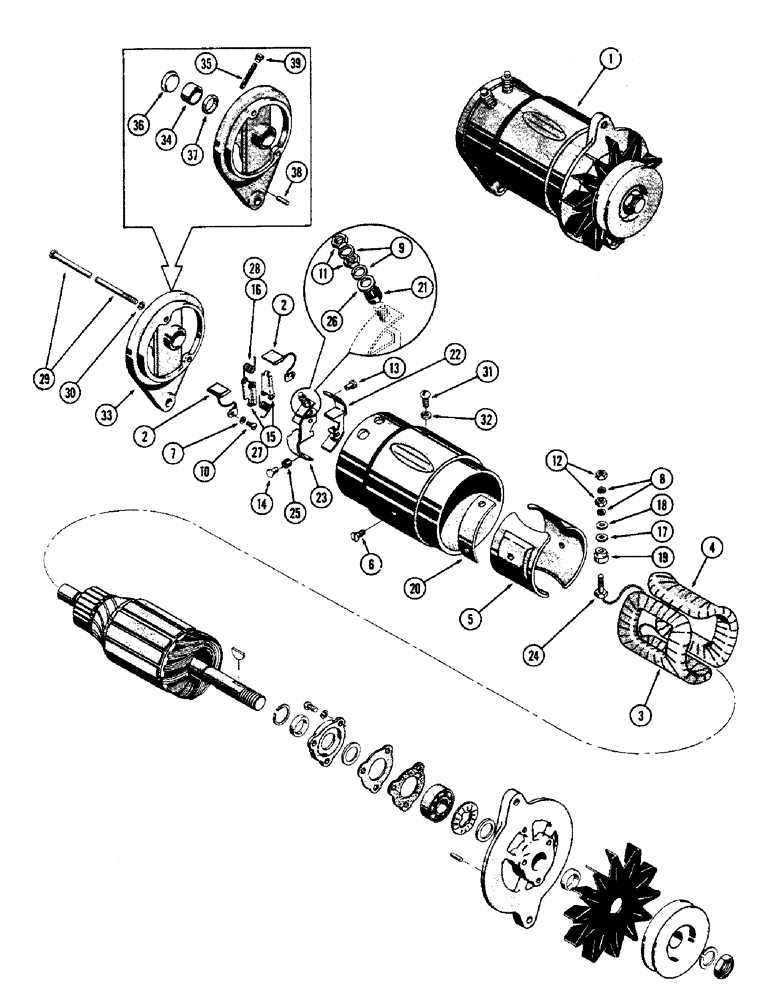

Запчасти Case 310G (084) - F83421 GENERATOR, (148B) ENGINE - POSITIVE GROUND (06) - ELECTRICAL SYSTEMS

1

F83421

SPARE PART GENERATOR - (Eltra GJT-7106-S) (Replaces D22878), Includes: Ref. 2 - 39

1шт.

1

104450A1R

REMAN-GENERATOR

Remanufactured Generator 12 volt, 20 ampere

1шт.

1

104450A1C

CORE-GENERATOR

Return Number, 12 volt 20 ampere

1шт.

2

F83422

BRUSH ASSY.

BRUSH SET

1шт.

A40150

SPARE PART COIL ASSY - field, Includes: Ref. 3 and 4

1шт.

3

NSS

NOT SOLD SEPARAT

COIL - field, R.H.

1шт.

4

NSS

NOT SOLD SEPARAT

COIL - field, L.H.

1шт.

5

NSS

NOT SOLD SEPARAT

SHOE - pole

2шт.

6

NSS

NOT SOLD SEPARAT

SCREW - pole shoe

2шт.

7

192-16

LOCK WASHER,Helical Spring, #8, 0.17" ID, CST, ZND

WASHER - lock, , Brush lead screw #8

2шт.

8

192-18

LOCK WASHER,Helical Spring, #10, 0.196" ID, CST, ZND

WASHER, LOCK, , Field terminal #10

2шт.

9

192-19

LOCK WASHER,Helical Spring, 0.256" ID, CST, ZND

WASHER, LOCK, (Armature terminal) 1/4"

2шт.

10

173-224

SCREW,Sl Rnd Hd, #8 - 32 x 1/4"

SCREW - brush lead, #8-32 x 1/4" rd. hd.

2шт.

11

129-121

NUT,1/4"-28, G5

NUT, , Armature terminal 1/4"-28, G5

2шт.

12

129-36

NUT,#8-36

NUT - field term., #10-32 hex.

2шт.

13

NSS

NOT SOLD SEPARAT

RIVET - ground brush holder

2шт.

14

NSS

NOT SOLD SEPARAT

RIVET - insulated brush holder

1шт.

15

NSS

NOT SOLD SEPARAT

ARM - brush (Order A40276)

2шт.

16

NSS

NOT SOLD SEPARAT

SPRING - brush (Order A40276)

2шт.

A40279

STUD

TERMINAL KIT, Includes: Ref. 17 - 26

1шт.

17

NSS

NOT SOLD SEPARAT

WASHER - insulated

1шт.

18

NSS

NOT SOLD SEPARAT

WASHER - plain

1шт.

19

NSS

NOT SOLD SEPARAT

BUSHING - insulation

1шт.

20

NSS

NOT SOLD SEPARAT

INSULATION - brush holder

1шт.

21

NSS

NOT SOLD SEPARAT

BUSHING - insulation, armature term.

1шт.

22

NSS

NOT SOLD SEPARAT

HOLDER - brush ground

1шт.

23

NSS

NOT SOLD SEPARAT

HOLDER & TERMINAL - insulation brush

1шт.

24

NSS

NOT SOLD SEPARAT

STUD - field terminal

1шт.

25

NSS

NOT SOLD SEPARAT

BUSHING - insulation, brush holder rivet

1шт.

26

NSS

NOT SOLD SEPARAT

WASHER - plain, armature terminal

1шт.

A40276

SPRING

BRUSH ARM & SPRING KIT, Includes: Ref. 27 and 28

1шт.

27

NSS

NOT SOLD SEPARAT

ARM - brush

2шт.

28

NSS

NOT SOLD SEPARAT

SPRING - brush

2шт.

29

A25629

BOLT - thru

2шт.

30

192-19

LOCK WASHER,Helical Spring, 0.256" ID, CST, ZND

WASHER, LOCK, 1/4"

2шт.

31

76-45

SCREW - ground, 1/4 x 5/16" N.F. rd. hd.

1шт.

32

192-19

LOCK WASHER,Helical Spring, 0.256" ID, CST, ZND

WASHER, LOCK, 1/4"

1шт.

33

A25620

SPARE PART HEAD ASSY - commutator end, Includes: Ref. 34 - 39

1шт.

34

A25623

BUSHING

BEARING - bronze

1шт.

35

NSS

NOT SOLD SEPARAT

WICK - oil

1шт.

36

NSS

NOT SOLD SEPARAT

COVER - bearing

1шт.

37

NSS

NOT SOLD SEPARAT

RETAINER - oil

1шт.

38

NSS

NOT SOLD SEPARAT

PIN - dowel

1шт.

39

A25624

OILER

1шт.
