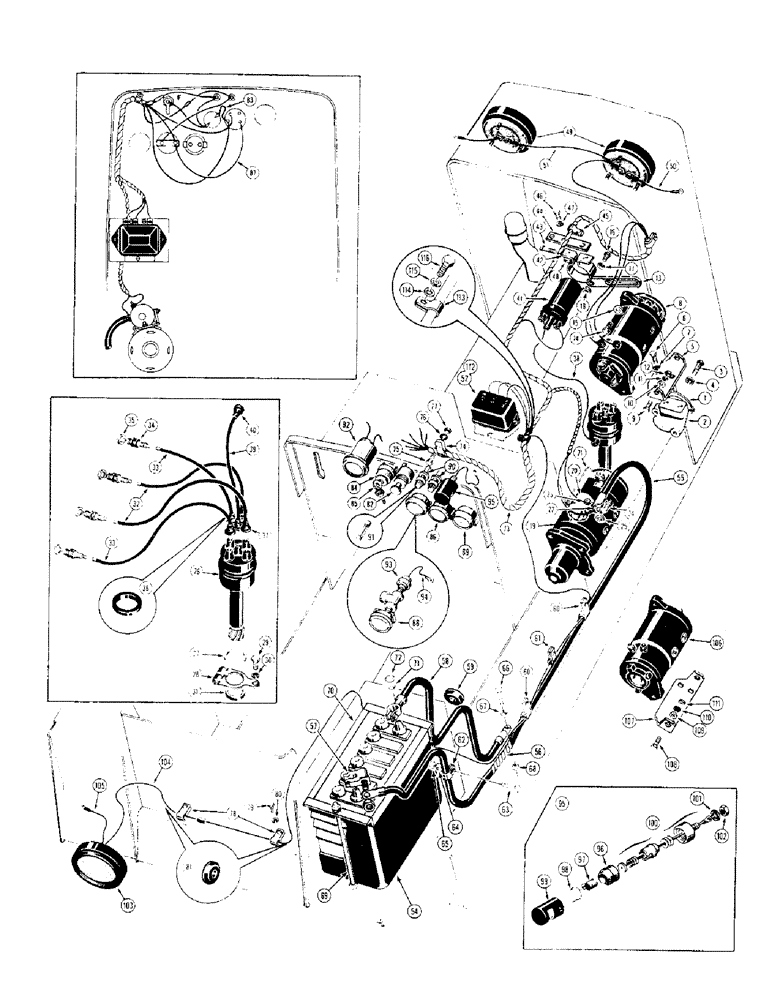

Запчасти Case 310G (078) - STARTER, GENERATOR, BATTERY AND WIRING - GAS (NEGATIVE BATTERY GROUND) (06) - ELECTRICAL SYSTEMS

1

A30042

GASKET

GASKET - generator bracket support

1шт.

2

G2098

SPARE PART SUPPORT - generator bracket

1шт.

3

13-652

BOLT,Hex, 3/8" - 16 x 3-1/4", Gr 5

HHCS - 3/8" - 16 NC x 3-1/4"

3шт.

4

92-6

LOCK WASHER,3/8"

LOCK WASHER, , med. sect. 3/8"

3шт.

5

D26162

SPARE PART BRACKET - generator

1шт.

6

113-125

X

HHCS - 5/16" - 18 NC x 3/4"

2шт.

7

92-5

LOCK WASHER,5/16"

LOCK WASHER, , med sect. 5/16"

2шт.

8

A36279

X

GENERATOR - 12 volt (Prestolite no. GJC-7404A) parts list figure 88

1шт.

9

13-520

BOLT,Hex, 5/16" - 18 x 1-1/4", Gr 5

HHCS - 5/16" - 18 NC x 1-1/4"

2шт.

10

95-5

WASHER,3/8" x 7/8" x .083"

WASHER - std. wrot (3/8" I.D. x 7/8" O.D. x 5/64" thick)

1шт.

11

92-5

LOCK WASHER,5/16"

LOCK WASHER, , med sect. 5/16"

2шт.

12

9635082

NUT,5/16" - 18, Gr 5

NUT - hex. (5/16" - 18 NC)

2шт.

13

G11344

SPARE PART STRAP - generator adjusting

1шт.

14

13-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

BOLT, Hex, 5/16"-18 x 3/4", G5, Full Thd

1шт.

15

95-5

WASHER,3/8" x 7/8" x .083"

WASHER - std. wrot (3/8" I.D. x 7/8" O.D. x 5/64" thick)

1шт.

16

13-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5, Full Thd

BOLT, Hex, 3/8"-16 x 1 1/4", G5, Full Thd

1шт.

17

92-6

LOCK WASHER,3/8"

LOCK WASHER, , med. sect. 3/8"

1шт.

18

25-106

NUT,3/8"-16, G5

NUT - hex. (3/8" - 16 NC)

1шт.

19

A36584

STARTING MOTOR

MOTOR - starting (Parts list figure 94), Includes: Ref. 20 and 21

1шт.

19

104223A1R

REMAN-STARTER

Remanufactured STARTER 12 volt Presto Inertia

1шт.

19

104223A1C

CORE-STARTER

Return Part Number, STARTER 12 volt Presto Inertia

1шт.

20

A40795

SOLENOID

SOLENOID - starting motor

1шт.

21

G46297

CONNECTOR, ELEC

CONNECTOR BAR - connecting, Serial Range: solenoid-starter

1шт.

22

129-122

NUT,5/16"-24, G5

NUT, (Battery solenoid terminal) outer 5/16"-24, G5

1шт.

23

193-1000

NUT,Keps, w/LW,#10-32

NUT - Keps, zinc plated (Ignition switch solenoid termaial, outer) #10-32 NF

1шт.

24

413-632

BOLT,Hex, 3/8" - 16 x 2", Gr 5

BOLT, Hex, 3/8"-16 x 2", G5

3шт.

25

92-6

LOCK WASHER,3/8"

LOCK WASHER, , med. sect. 3/8"

3шт.

26

G11051

DISTRIBUTOR

DISTRIBUTOR - Prestolite no. IAD - 6003 - 2J (Parts list figure 96)

1шт.

27

CASA30080

WASHER - thrust, distributor advance arm

1шт.

28

A29989

ARM

ARM - distributor advanve (Prestolite no. IG - 1860 - A1)

1шт.

29

113-1

BOLT,Hex, 1/4" - 20 x 1/2", Gr 5

BOLT, Hex, 1/4"-20 x 1/2", G5, Full Thd

1шт.

30

92-4

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

1шт.

31

A29456

O-RING,0.139" Thk x 1.046" ID, -215, Cl 5, 75 Duro

SEAL - distributor to block

1шт.

32

A30018

CABLE

WIRE - no. 2 and no. 3 spark plugs to distbibutor (8-1/2")

2шт.

33

A29994

CABLE

WIRE - no. 1 and no. 4 spark plugs to distbibutor (10-1/2")

2шт.

34

G44840

SPARK PLUG

SPARK PLUG - 18 MM (Prestolite no. 18 8), Includes: Ref. 35

4шт.

35

G46839

GASKET

GASKET - spark plugs

1шт.

36

A30109

WASHER

WASHER - rubber, spark plug wire retaining

1шт.

37

A29338

COVER

NIPPLE - rubber, spark plug wire and coil cable

5шт.

38

G13085

ELECTRICAL WIRE

WIRE WIRE - coil to distributor (12")

1шт.

39

NLS

NO LONGER SERVICED

- coil to distributor (11")

1шт.

40

G46803

BOOT

NIPPLE - rubber, coil to distributor cable at coil

1шт.

41

A41820

COIL

COIL - ignition (Prestolite no. 200578)

1шт.

42

G46106

BRACKET

BAND - coil mounting

1шт.

43

173-219

SPARE PART RHMS - #10 - 20 NC x 1-1/2" (Zinc plated)

1шт.

44

G11705

BRACKET

STRAP - mounting, coil to valve cover stud

1шт.

45

49838

CLAMP

CLAMP - wire

2шт.

46

13-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

BOLT, Hex, 5/16"-18 x 3/4", G5, Full Thd

2шт.

47

92-5

LOCK WASHER,5/16"

LOCK WASHER, , med sect. 5/16"

2шт.

48

9635082

NUT,5/16" - 18, Gr 5

NUT - hex. (5/16" - 18 NC)

2шт.

49

D30243

LAMP

LIGHT - head (Parts list figure 124)

2шт.

50

A11768

ELECTRICAL WIRE

WIRE WIRE - ground, headlight

2шт.

51

D22271

ELECTRICAL WIRE

WIRE JUMPER - headlight

1шт.

52

A36194

REGULATOR

REGULATOR - voltage

1шт.

53

D35018

SPARE PART KIT - shock mounting (A36194 regulator only) Not shown

1шт.

54

D44176

BATTERY

BATTERY - 12 volt

1шт.

55

D32192

CABLE

CABLE - battery, hot (75") Positive

1шт.

56

R12586

TAPE

WRAP - hot battery cable

1шт.

57

D38456

TERMINAL CONNECTOR

TERMINAL - battery, special

1шт.

58

D38127

SPARE PART CABLE - battery, ground (27") Negative

1шт.

59

49564

GROMMET,1 1/2" ID x 1 3/4" Groove Dia

GROMMET - rubber, battery cable hole in R.H. tool box

1шт.

60

49836

CLAMP

CLAMP - wire, positive battery cable

2шт.

61

A26649

SPARE PART CLAMP - wire, taillight

1шт.

62

49838

CLAMP

CLAMP - wire, positive battery cable (Rear)

1шт.

63

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

BOLT, Hex, 3/8"-16 x 1", G5, Full Thd

1шт.

64

92-6

LOCK WASHER,3/8"

LOCK WASHER, , med. sect. 3/8"

1шт.

65

25-106

NUT,3/8"-16, G5

NUT - hex. (3/8" - 16 NC)

1шт.

66

413-632

BOLT,Hex, 3/8" - 16 x 2", Gr 5

BOLT, Hex, 3/8"-16 x 2", G5

1шт.

67

92-6

LOCK WASHER,3/8"

LOCK WASHER, , med. sect. 3/8"

1шт.

68

25-106

NUT,3/8"-16, G5

NUT - hex. (3/8" - 16 NC)

1шт.

69

15-5148

BOLT

HHCS - 5/16" - 18 NC x 9-1/4"

2шт.

70

D22841

SPARE PART BRACKET - battery hold down

1шт.

71

195-21

WASHER,5/16"

WASHER - plain () 5/16"

2шт.

72

131-351

LOCK NUT,5/16"-18, GA

NUT - lock (5/16" - 18 NC)

2шт.

73

D24941

SPARE PART HARNESS - main wiring

1шт.

74

49838

CLAMP

CLAMP - wire

1шт.

75

13-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5, Full Thd

BOLT, Hex, 1/4"-20 x 3/4", G5, Full Thd

1шт.

76

92-4

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

1шт.

77

25-104

NUT,1/4"-20, G5

NUT, 1/4"-20, G5

1шт.

78

515-2348

CLAMP,4.8mm ID, 10.3mm Bolt Hole, P Type

CLAMP - wire, taillight (Rear)

2шт.

79

13-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

BOLT, Hex, 3/8"-16 x 3/4", G5, Full Thd

2шт.

80

92-6

LOCK WASHER,3/8"

LOCK WASHER, , med. sect. 3/8"

2шт.

81

49562

GROMMET,11/16" ID x 1" Groove Dia

GROMMET - rubber, taillight wire hole in tool box

2шт.

82

D35065

SWITCH

SWITCH - light

1шт.

82a

A56120

WASHER

WASHER - special (Not shown)

1шт.

83

NLS

NO LONGER SERVICED

WIRE JUMPER - light switch to ignition switch

1шт.

84

A11373

SWITCH

SWITCH - ignition & starter, Includes Ref 85

1шт.

85

A20346

KEY

KEY - ignition switch

1шт.

86

R18748

AMMETER

GAUGE - ammeter

1шт.

87

71280

JUMPER -, Serial Range: ammeter-ignition

1шт.

88

A30326

GAUGE

GAUGE - oil pressure

1шт.

89

11284

ELECTRICAL GAUGE

GAUGE - temperature

1шт.

90

D23834

HOLDER

HOLDER - fuse (Includes 1 - 25 amp fuse), Includes: Ref. 91

2шт.

91

223-25

FUSE,25 Amp, Type 3AG

FUSE - AGC, 25 amp. (1/4" dia. x 1-1/4" long)

1шт.

92

33481

X

METER - engine hour (When stock is exhausted, use D39286 engine hour meter kit) see figure 126

1шт.

D28798

SWITCH

OIL PRESSURE SWITCH ASSEMBLY, Includes: Ref. 93 and 94

1шт.

93

NSS

NOT SOLD SEPARAT

SWITCH - oil pressure

1шт.

94

D28797

ELECTRICAL WIRE

WIRE WIRE - oil pressure switch

1шт.

95

D33212

INTERIOR LIGHT

LIGHT - dash, Includes: Ref. 96 - 102

1шт.

96

NSS

NOT SOLD SEPARAT

MOUNT - rubber

1шт.

97

71421

BULB,R5W, 12V, 5W

BULB - light

1шт.

98

R22232

SIGHTGLASS

LENS - dash light

1шт.

99

R22237

COVER

COVER - dash light

1шт.

100

NSS

NOT SOLD SEPARAT

BASE ASSEMBLY - dash light

1шт.

101

92-10

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

1шт.

102

86637932

JAM NUT,Jam, 5/8"-18, G5

NUT - jam

1шт.

103

D30243

LAMP

LIGHT - tail (Parts list figure 114)

1шт.

104

D33670

SPARE PART JUMPER - wire, taillight to wiring harness

1шт.

105

A11768

ELECTRICAL WIRE

WIRE JUMPER - wire, Serial Range: taillight-ground

1шт.

106

D34009

GENERATOR

GENERATOR - enclosed (Optional) Parts list figure 112

1шт.

106

87297306

REMAN-GENERATOR

Remanufactured GENERATOR

1шт.

106

87297307

CORE-GENERATOR

Return Part Number GENERATOR

1шт.

107

D34012

BRACKET

BRACKET - mounting, generator (D34009 generator only)

1шт.

108

13-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5, Full Thd

BOLT, (D34009 generator only) Hex, 3/8"-16 x 1 1/4", G5, Full Thd

2шт.

109

95-6

WASHER,3/8"

WASHER - plain () D34009 generator only 3/8"

1шт.

195-2031

WASHER

WASHER - plain (13/32") Not shown

1шт.

D46947

SPARE PART WASHER - special, not shown

1шт.

110

92-6

LOCK WASHER,3/8"

LOCK WASHER, , med. sect., D34009 generator only 3/8"

2шт.

111

25-106

NUT,3/8"-16, G5

NUT - hex. (3/8" - 16 NC) D34009 generator only

2шт.

112

A23193

REGULATOR

REGULATOR - voltage (D34009 generator only)

1шт.

113

49838

CLAMP

CLAMP - harness, wire

1шт.

114

195-21

WASHER,5/16"

WASHER - flat () 5/16"

1шт.

115

92-5

LOCK WASHER,5/16"

LOCK WASHER, , med sect. 5/16"

1шт.

116

13-58

BOLT,Hex, 5/16" - 18 x 1/2", Gr 5

BOLT, Hex, 5/16"-18 x 1/2", G5, Full Thd

1шт.

117

A25454

PULLEY

PULLEY - generator (Not shown)

1шт.
