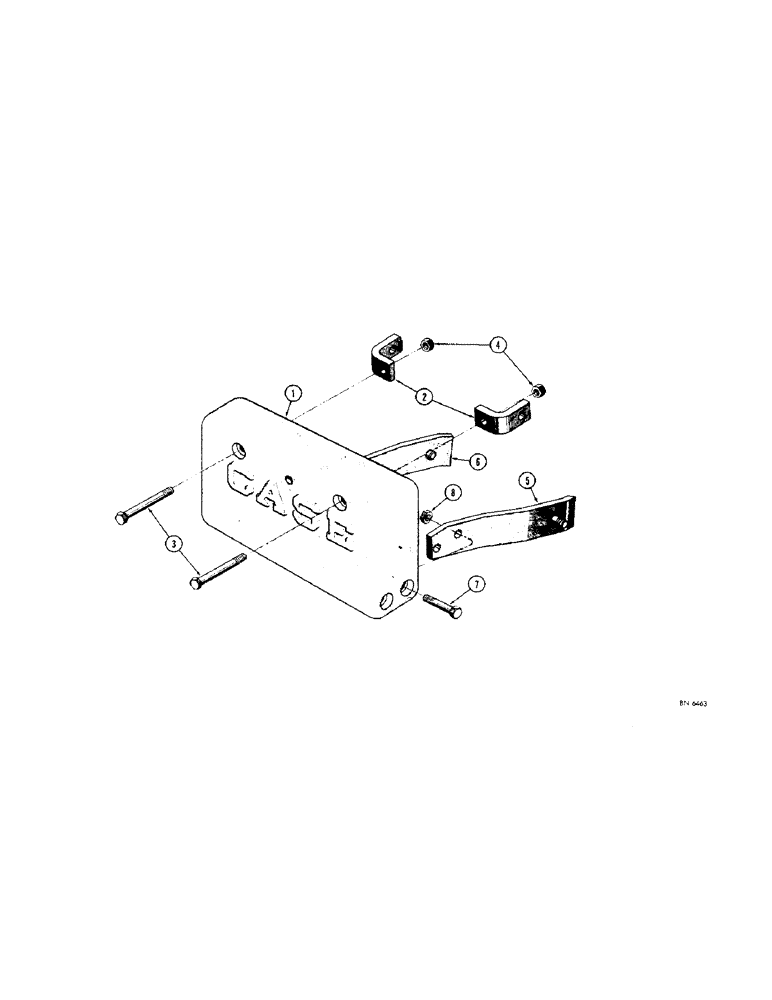

Запчасти Case 310G (280) - 1400 LB. COUNTERWEIGHT WITH BACKHOE REMOVED (05) - UPPERSTRUCTURE CHASSIS

1

D31204

BALANCER

COUNTERWEIGHT - rear, 1400 lb.

1шт.

2

D31530

BRACKET

- mounting, Serial Range: counterweight-brace

2шт.

3

13-16168

BOLT,Hex, 1" - 8 x 10-1/2", Gr 5

2шт.

4

230-41116

NUT,1"-8, GA

NUT - lock (1" - 8 NC)

2шт.

5

D31528

SUPPORT

- counterweight, R.H.

1шт.

6

D31529

SUPPORT

- counterweight, L.H.

1шт.

7

13-16104

BOLT,Hex, 1" - 8 x 6-1/2", Gr 5

4шт.

8

230-41116

NUT,1"-8, GA

NUT - lock (1" - 8 NC)

4шт.
