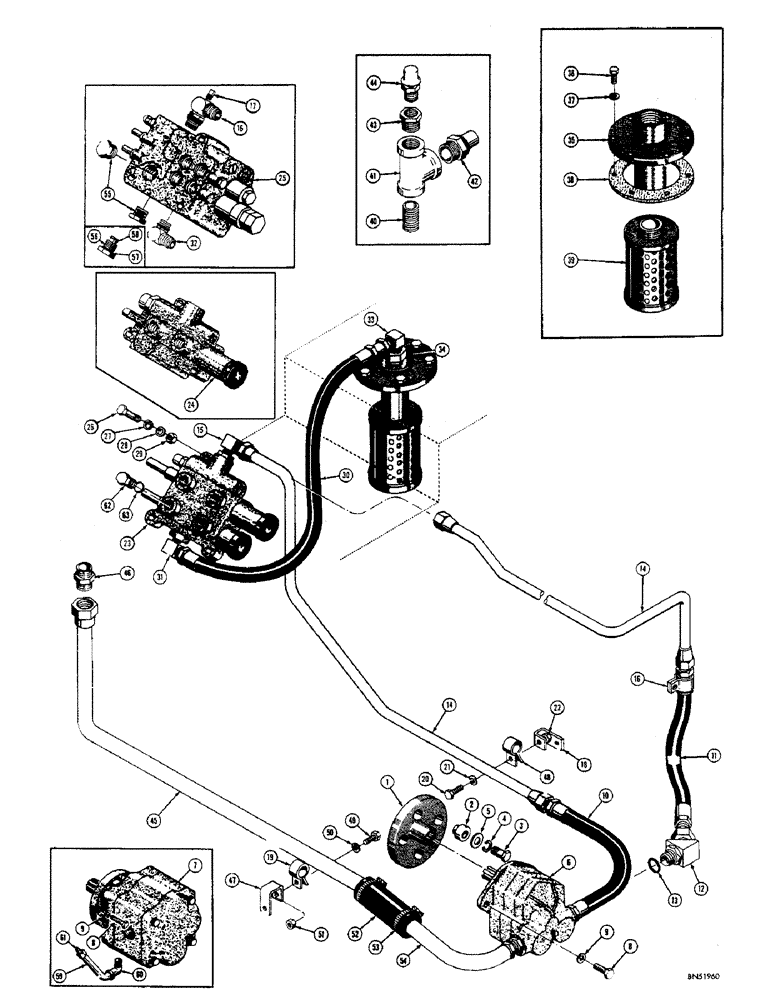

Запчасти Case 310F (140) - BASIC TRACTOR HYDRAULICS, ALL MODELS EXCEPT DOZER-BACKHOE MODELS (07) - HYDRAULIC SYSTEM

1

G36217

HUB ASSY.

HUB - flexible pump drive coupling

1шт.

2

G36905

BLOCK

AND BUSHING - G36217 hub

4шт.

3

13-724

BOLT,Hex, 7/16" - 14 x 1-1/2", Gr 5

Hex, 7/16"-14 x 1 1/2, G5

4шт.

4

92-7

LOCK WASHER,7/16"

4шт.

5

VT3340

X

WASHER - flat (7/16")

4шт.

6

D25569

PUMP, HYDRAULIC

PUMP - hydraulic (13-1/2 G.P.M. at 1850 pump R.P.M.) Used on all models except loader models (See Figure146 for breakdown) See D25347

1шт.

7

D25347

PUMP, HYDRAULIC

PUMP - hydraulic, 18-1/2 G.P.M. at 1850 pump R.P.M. (1850 engine R.P.M.) Used on all loader models (See Figure 144 for breakdown) See D25569

1шт.

8

13-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5, Full Thd

(4 used on D25347 pump; 2 used on D25569 pump) Hex, 3/8"-16 x 1 1/4", G5, Full Thd

2-4шт.

9

92-6

LOCK WASHER,3/8"

4 used on D25347 pump; 2 used on D25569 pump 3/8"

2-4шт.

10

D25130

HOSE - pump to valve inlet, front section (3/4" I.D. x 1-5/32" O.D. x 14") Gas models only (See D29604)

1шт.

218-5009

O-RING,0.116" Thk x 1.048" ID, -914, Cl 6, 90 Duro

SEAL - "O" ring, D25130 hose (Not shown)

1шт.

11

D29604

HOSE - pump to valve inlet, front section (3/4" I.D. x 1-5/32" O.D. x 18-1/2") Used on diesel models only (See D25130)

1шт.

12

D29608

ELBOW - female swivel, 45 degrees (1" JIC female x 7/8" JIC male) Used on diesel models only

1шт.

13

218-5009

O-RING,0.116" Thk x 1.048" ID, -914, Cl 6, 90 Duro

SEAL - "O" ring, D29608 elbow

1шт.

14

D26688

TUBE - pump to valve inlet, rear section (Gas models only) See D29606

1шт.

D29606

TUBE - pump to valve inlet, rear section (Used on diesel models only) See D26688

1шт.

15

D25098

ELBOW - male, 90 degrees (7/8" JIC x 1" JIC) Used on all models except loader models (See D26683)

1шт.

218-5009

O-RING,0.116" Thk x 1.048" ID, -914, Cl 6, 90 Duro

SEAL - "O" ring, D25098 elbow (Not shown)

1шт.

16

D26683

TEE - service (3/4" JIC male x 1" JIC male x 1/4" NPT female) Used on all loder models (Not shown)

1шт.

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

SEAL - "O" ring, D26683 service tee (Not shown)

1шт.

17

221-2

DRAIN PLUG,Sq Hd, 1/4"-18 NPTF

PLUG - pipe, square head (1/4" NPT) D26683 service tee

1шт.

18

D27673

BRACKET - tube clamp (Mounts to cylinder mounting bracket bolts on dozer models) Gas models only

1шт.

13-1020

BOLT,Hex, 5/8" - 11 x 1-1/4", Gr 5, Full Thd

(Not shown) Hex, 5/8"-11 x 1 1/4", G5, Full Thd

1шт.

92-10

LOCK WASHER,5/8"

WASHER, LOCK, , Not shown 5/8"

1шт.

25-1010

NUT,5/8"-11, G5

Not shown 5/8"-11, G5

1шт.

19

D25156

CLAMP

- tube (1 used on gas loader models; 2 used on all diesel models other than loaders) See D25157 (Ref. No. 48)

1-2шт.

20

13-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

(Gas models only) Use timing gear cover bolt on diesel models Hex, 5/16"-18 x 3/4", G5, Full Thd

1шт.

21

92-5

LOCK WASHER,5/16"

1шт.

22

9635082

NUT,5/16" - 18, Gr 5

- hex. (5/16" - 18 NC)

1шт.

23

D25450

VALVE - control, dozer models only (See Figure 152 for breakdown)

1шт.

24

D27049

VALVE - control, single pool (Mechanical dozer models only) See Figure 150 for breakdown

1шт.

25

D29615

VALVE - control, loader models only (See Figure 154 for breakdown) Used on loader SN 4068995 up to 4081822 (When stock is exhausted order D32768)

1шт.

D32768

VALVE - control, loader models only (See figure 162 for breakdown) Used on loader serial number 4081822 and after (See D29615)

1шт.

D29111

VALVE - control, auxiliary equipment (See Figure 160 for breakdown) Not shown

1шт.

26

13-636

BOLT,Hex, 3/8" - 16 x 2-1/4", Gr 5

(D25450 and D27049 control valves) See 13-664 Hex, 3/8"-16 x 2 1/4", G5

3шт.

13-664

BOLT,Hex, 3/8" - 16 x 4", Gr 5

(D29615, D32768 and D29111 control valves) See 13-636 Hex, 3/8"-16 x 4", G5

3шт.

27

92-6

LOCK WASHER,3/8"

3шт.

28

95-6

WASHER,3/8"

- standard wrot ( I.D. x 7/8" O.D. x 5/64" thick) 3/8"

3шт.

29

25-106

NUT,3/8"-16, G5

- hex. (3/8" - 16 NC) Use 25-146

3шт.

25-146

JAM NUT,Jam, 3/8"-16, G5

- jam (3/8" - 16 NC)

3шт.

30

D27159

HOSE - control valve outlet to filter (3/4" I.D. x 1-1/4" O.D. x 20-3/8") See D29141

1шт.

D29141

HOSE - control valve outlet to reservoir (3/4" I.D. x 1-1/4" O.D. x 31") Three spool valve only (See D27159)

1шт.

31

D25353

ELBOW - female, 90 degrees (3/4" NPT female x 7/8" JIC male) Used on all models except loader models (See D25354)

1шт.

218-5009

O-RING,0.116" Thk x 1.048" ID, -914, Cl 6, 90 Duro

SEAL - "O" ring, D25353 elbow (Not shown)

1шт.

32

D25354

ELBOW

- female, 90 degrees (3/4" NPT female x 3/4" JIC male) Used on all loader models (See D25353)

1шт.

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

SEAL - "O" ring, D25354 elbow (Not shown)

1шт.

33

218-486

ELBOW,90 Degree Elbow, 1-1/16" - 12 Male JIC x 3/4" - 14 Male NPTF

- male, 90 degrees (3/4" NPT x 3/4" JIC)

1шт.

34

221-69

BUSHING

- hex. pipe, filter inlet (1-1/4" NPT x 3/4" NPT)

1шт.

35

D26685

CAP - inlet, oil filter

1шт.

36

14-616

BOLT,Hex, 3/8" - 24 x 1", Gr 5

HHCS - 3/8" - 24 NF x 1"

6шт.

37

D29513

WASHER - sealing, nylon

6шт.

38

36321

GASKET

- oil filter inlet cap

1шт.

39

D25664

FILTER CARTRIDGE

FILTER - hydraulic oil

1шт.

40

221-130

PIPE,Nipple, 1/4" NPT x 7/8"

NIPPLE - close pipe (1/4" NPT x 7/8")

1шт.

41

221-431

TEE

- pipe (1/4" NPT x 1/4" NPT x 3/8" NPT)

1шт.

42

R15538

VALVE

- relief, vacuum (2 to 5 P.S.I.)

1шт.

43

221-51

SUN VISOR,Hex, 1/4" x 1/8" NPT

BUSHING - hex. pipe (1/4" NPT x 1/8" NPT)

1шт.

44

R15536

VALVE

- relief, pressure (10 to 20 P.S.I.)

1шт.

45

D26690

TUBE - reservoir to pump, rear section

1шт.

46

218-449

HYD CONNECTOR,1-5/8" - 12 Male JIC x 1-1/4" - 11-1/2 Male NPTF

ADAPTER - straight male (1-1/4" NPT x 1-1/4" JIC)

1шт.

47

37753

BUSHING

BRACKET - tube clamp

1шт.

13-1020

BOLT,Hex, 5/8" - 11 x 1-1/4", Gr 5, Full Thd

(Not shown) Hex, 5/8"-11 x 1 1/4", G5, Full Thd

1шт.

92-10

LOCK WASHER,5/8"

WASHER, LOCK, , Not shown 5/8"

1шт.

25-1010

NUT,5/8"-11, G5

Not shown 5/8"-11, G5

1шт.

48

D25157

CLAMP - tube (Gas loader models only)

1шт.

49

13-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

1шт.

50

92-5

LOCK WASHER,5/16"

1шт.

51

9635082

NUT,5/16" - 18, Gr 5

- hex. (5/16" - 18 NC)

1шт.

52

D23645

HOSE

- low pressure, reservoir to pump (1-1/4" I.D. x 2" O.D. x 5")

1шт.

53

214-258

HOSE CLAMP,#28, 1.31" - 2.25", Type F Worm

2шт.

54

D25716

STEM

- hose, reservoir to pump (Front section) Used on all models except loader models (See D25144)

1шт.

218-5009

O-RING,0.116" Thk x 1.048" ID, -914, Cl 6, 90 Duro

SEAL - "O" ring, D25716 hose stem (Not shown)

1шт.

D25144

STEM - hose, reservoir to pump (Front section) Used on all loader models (See D25716)

1шт.

218-5010

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

SEAL - "O" ring, D25144 hose stem (Not shown)

1шт.

55

218-5158

PLUG,Hex Hd, 1 1/16"-12 ORB

(3/4" JIC), 2 used on standard loader models only Hex Hd, 1 1/16"-12 ORB

2шт.

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

SEAL - "O" ring, 218-5158 plug (Not shown)

1шт.

56

D25783

PLUG - special, high pressure carry-over (Replaces 218-5158 plug in R.H. rear side valve port on backhoe models only) See 218-5158

1шт.

57

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

SEAL - "O" ring, D25783 plug (Large)

1шт.

58

D26435

O-RING,0.07" Thk x 0.801" ID, -19, Cl 6, 90 Duro

SEAL - "O" ring, D25783 plug (Small)

1шт.

59

D28087

TUBE - pump lubrication (Loader models only)

1шт.

60

219-82

ELBOW,90 Degree, 1/8"-27

- 90 degrees (1/8" NPT female x 1/8" NPT male)

1шт.

61

219-60

LUBE NIPPLE,1/8" - 27 Female NPTF

FITTING - grease, str. (Female) 1/8" NPT

1шт.

62

86512512

PLUG,7/8" - 14 ORB

(5/8" JIC) For port in D25450 valve not in use Hex Hd, 7/8"-14 ORB

2шт.

63

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk, 218-5157 plug

1шт.
