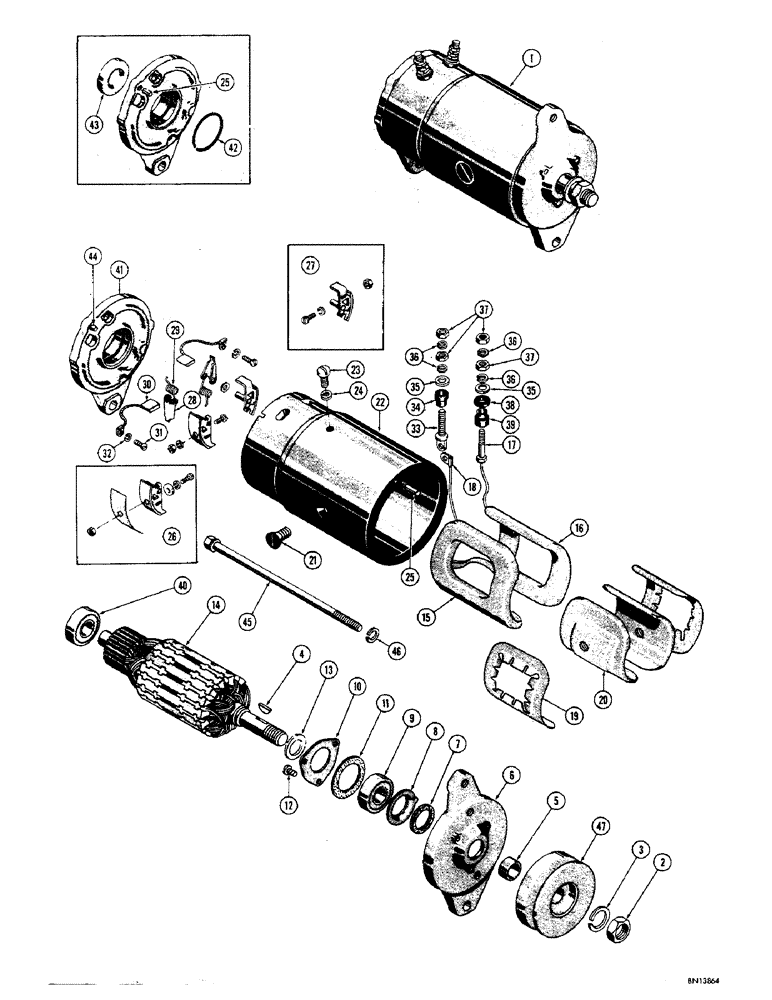

Запчасти Case 310F (080) - D34009 GENERATOR (06) - ELECTRICAL SYSTEMS

1

D34009

GENERATOR

- complete (Optional)

1шт.

2

A25546

NUT

- shaft, drive end

1шт.

3

R16171

SPRING WASHER

- shaft nut, drive end

1шт.

4

R15047

X

KEY - Woodruff, drive end

1шт.

5

R15099

COLLAR - space (Outside - drive end)

1шт.

6

A25444

FRAME - drive end

1шт.

7

NSS

NOT SOLD SEPARAT

WASHER - felt, drive end

1шт.

8

NSS

NOT SOLD SEPARAT

PLATE - retaining, felt washer

1шт.

9

R15094

BALL BEARING,0.6693" ID x 1.5748" OD x 0.4724"

BEARING - ball, drive end

1шт.

10

R15101

PLATE

- retainer, ball bearing (Drive end)

1шт.

11

R16170

GASKET

- retainer plate

1шт.

12

NSS

NOT SOLD SEPARAT

SCREW - attaching, retainer plate

3шт.

13

NSS

NOT SOLD SEPARAT

WASHER - space (Inside - drive end)

1шт.

14

A25545

ARMATURE - generator

1шт.

A25439

COIL - field, set of two

1шт.

15

NSS

NOT SOLD SEPARAT

COIL - field, R.H.

1шт.

16

NSS

NOT SOLD SEPARAT

COIL - field, L.H.

1шт.

17

R16150

X

STUD - field terminal

1шт.

18

NSS

NOT SOLD SEPARAT

CLIP - terminal (To brush)

1шт.

19

A25447

ISOLATOR

INSULATION - field coil

2шт.

20

A25440

SHOE - pole

2шт.

21

NSS

NOT SOLD SEPARAT

SCREW - pole shoe

2шт.

22

NSS

NOT SOLD SEPARAT

HOUSING - generator

1шт.

23

NSS

NOT SOLD SEPARAT

SCREW - condenser mounting

1шт.

24

NSS

NOT SOLD SEPARAT

WASHER - med. sect. lock

1шт.

25

NSS

NOT SOLD SEPARAT

PIN - dowel, drive end

1шт.

26

R16160

X

HOLDER - brush, insulated (Package)

1шт.

27

R16159

X

HOLDER - brush, ground (Package)

1шт.

28

R15090

ARM

- brush

2шт.

29

A25423

SPRING

- brush

2шт.

30

R4286

BRUSH, COMMUTATOR

BRUSH

2шт.

31

NSS

NOT SOLD SEPARAT

SCREW - attaching, brush lead

2шт.

32

NSS

NOT SOLD SEPARAT

WASHER - med. sect. lock

2шт.

33

R16146

X

STUD - armature terminal

1шт.

34

R16147

BUSHING

- armature terminal

1шт.

35

NSS

NOT SOLD SEPARAT

WASHER - plain, terminal studs

2шт.

36

NSS

NOT SOLD SEPARAT

WASHER - med. sect. lock

4шт.

37

NSS

NOT SOLD SEPARAT

NUT - terminal stud

4шт.

38

NSS

NOT SOLD SEPARAT

WASHER - insulation, field terminal stud

1шт.

39

R15077

X

BUSHING - field terminal stud

1шт.

40

R15094

BALL BEARING,0.6693" ID x 1.5748" OD x 0.4724"

BEARING - ball, commutator end

1шт.

41

A25416

FRAME - commutator end

1шт.

42

NSS

NOT SOLD SEPARAT

CLAMP - bearing, commutator end

1шт.

43

NSS

NOT SOLD SEPARAT

PLUG - bearing well, commutator end

1шт.

44

NSS

NOT SOLD SEPARAT

PIN - dowel, commutator end

1шт.

45

R15106

BOLT

- thru, generator

2шт.

46

R15106

BOLT

- thru, generator

2шт.

47

D34011

X

PULLEY - generator

1шт.
