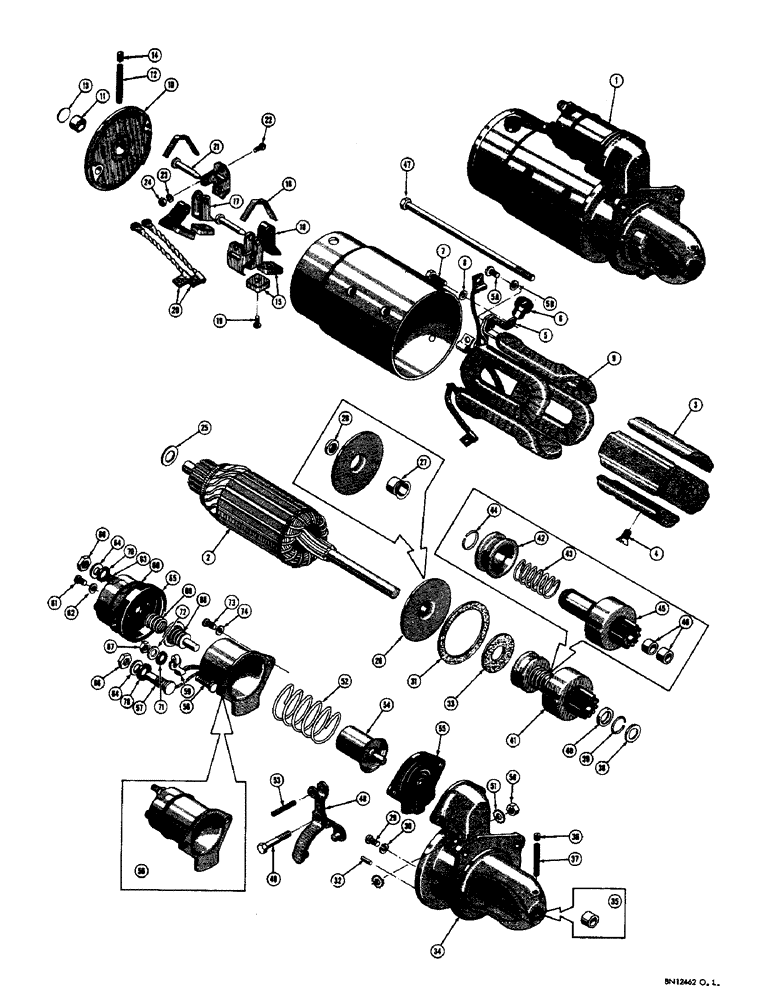

Запчасти Case 310F (076) - D32189 STARTER - DIESEL (06) - ELECTRICAL SYSTEMS

1

D32189

SPARE PART STARTER AND SOLENOID ASSEMBLY

1шт.

1

104198A2R

REMAN-STARTER

Remanufactured Starter

1шт.

1

104198A1C

CORE-STARTER

Return Part Number

1шт.

1

104202A2R

REMAN-STARTER

Remanufactured Starter

1шт.

1

104202A1C

CORE-STARTER

Return Part Number

1шт.

2

A25547

ARMATURE

ARMATURE

1шт.

3

A25391

SHOE

SHOE - pole

4шт.

4

NSS

NOT SOLD SEPARAT

SCREW - pole shoe

8шт.

5

NSS

NOT SOLD SEPARAT

CONNECTOR - field to solenoid switch

1шт.

5a

NSS

NOT SOLD SEPARAT

SCREW - switch, Serial Range: connector-field

1шт.

5b

NSS

NOT SOLD SEPARAT

WASHER - lock, switch to connector field screw

1шт.

6

NSS

NOT SOLD SEPARAT

GROMMET - connector (In field frame)

1шт.

7

NSS

NOT SOLD SEPARAT

SCREW - field, Serial Range: lead-switch

1шт.

8

NSS

NOT SOLD SEPARAT

WASHER - lock, field lead to switch

1шт.

9

A25548

COIL

COIL - field

1шт.

10

A25304

FRAME

FRAME ASSEMBLY - commutator end

1шт.

11

A25403

SPARE PART BUSHING - commutator end

1шт.

12

NSS

NOT SOLD SEPARAT

WICK - oil, commutator end

1шт.

13

NSS

NOT SOLD SEPARAT

PLUG - expansion, commutator end

1шт.

14

NSS

NOT SOLD SEPARAT

PLUG - pipe, commutator end

1шт.

15

A25356

BRUSH, COMMUTATOR

BRUSH BRUSH

4шт.

16

A25359

SPRING

SPRING - brush

2шт.

17

R15026

X

HOLDER - ground brush

2шт.

18

R15027

HOLDER

HOLDER - insulated brush

2шт.

19

NSS

NOT SOLD SEPARAT

SCREW AND LOCKWASHER - brush attaching

4шт.

A25379

KIT

KIT - service, brush holder support

2шт.

20

A25363

ELECTRICAL WIRE

WIRE LEAD - brush ground

2шт.

21

NSS

NOT SOLD SEPARAT

PIN - brush support

2шт.

22

NSS

NOT SOLD SEPARAT

SCREW - attaching, support

4шт.

23

NSS

NOT SOLD SEPARAT

WASHER - lock, support attaching screw

4шт.

24

NSS

NOT SOLD SEPARAT

NUT - support attaching screw

4шт.

25

NSS

NOT SOLD SEPARAT

WASHER - space, commutator end (9/16" I.D. x 63/64" O.D. x 1/16" thick)

1шт.

26

A25549

PLATE

CENTER BEARING PLATE

1шт.

27

NSS

NOT SOLD SEPARAT

BUSHING - center bearing

1шт.

28

A25409

SEAL

SEAL - oil, center bearing

1шт.

29

NSS

NOT SOLD SEPARAT

SCREW - attaching, center bearing

2шт.

30

NSS

NOT SOLD SEPARAT

WASHER - lock, center bearing attaching screw

2шт.

31

NSS

NOT SOLD SEPARAT

GASKET - between center bearing and housing

1шт.

32

NSS

NOT SOLD SEPARAT

PIN - dowel, drive end

1шт.

33

NSS

NOT SOLD SEPARAT

WASHER - brake (Between center bearing and motor drive)

1шт.

34

A25550

HOUSING - drive

1шт.

35

A25387

BEARING

BUSHING - drive end

1шт.

36

NSS

NOT SOLD SEPARAT

PLUG - pipe, drive end

1шт.

37

NSS

NOT SOLD SEPARAT

WICK - oil, drive end

1шт.

38

A25385

WASHER

WASHER - space, drive end

1шт.

39

R15048

RING

RING - retainer, pinion stop

1шт.

40

R15049

COLLAR

COLLAR - pinion stop

1шт.

41

A25337

X

DRIVE ASSEMBLY - motor

1шт.

42

NSS

NOT SOLD SEPARAT

COLLAR - pinion stop

1шт.

43

NSS

NOT SOLD SEPARAT

SPRING - drive assembly

1шт.

44

NSS

NOT SOLD SEPARAT

WIRE - lock, drive assembly

1шт.

45

NSS

NOT SOLD SEPARAT

PINION - motor drive

1шт.

46

NSS

NOT SOLD SEPARAT

BUSHING - oilless

2шт.

47

A25552

BOLT

BOLT - thru

2шт.

48

A25397

LEVER

LEVER - shift

1шт.

49

NSS

NOT SOLD SEPARAT

SCREW - shift lever

1шт.

50

NSS

NOT SOLD SEPARAT

NUT - shift lever screw

1шт.

51

NSS

NOT SOLD SEPARAT

WASHER - lock, shift lever screw

2шт.

52

A25553

X

SPRING - plunger return

1шт.

53

A25399

X

PIN - shift lever

1шт.

54

A25395

X

PLUNGER - solenoid switch

1шт.

55

A25410

BOOT

BOOT - solenoid switch

1шт.

56

A25551

SWITCH

SWITCH - solenoid, starter

1шт.

57

NSS

NOT SOLD SEPARAT

STUD - terminal, motor

1шт.

58

NSS

NOT SOLD SEPARAT

STUD - terminal, switch (No. 8 - 32 NC)

1шт.

59

NSS

NOT SOLD SEPARAT

CLIP - terminal

1шт.

60

NSS

NOT SOLD SEPARAT

COVER - solenoid switch

1шт.

61

NSS

NOT SOLD SEPARAT

SCREW - cover attaching

2шт.

62

NSS

NOT SOLD SEPARAT

WASHER - cover attaching screw

2шт.

63

NSS

NOT SOLD SEPARAT

STUD - terminal, battery (3/8" - 16 NC)

1шт.

64

NSS

NOT SOLD SEPARAT

WASHER - plain, bat. and motor term.

2шт.

65

NSS

NOT SOLD SEPARAT

GASKET - solenoid cover

1шт.

66

NSS

NOT SOLD SEPARAT

NUT - sealing, battery and motor (3/8" - 16 NC)

2шт.

67

NSS

NOT SOLD SEPARAT

NUT - hex., terminal stud

1шт.

68

NSS

NOT SOLD SEPARAT

CONTACT ASSEMBLY

1шт.

69

NSS

NOT SOLD SEPARAT

SPRING - return, contact

1шт.

70

NSS

NOT SOLD SEPARAT

WASHER - rubber, motor and bat. term

2шт.

71

NSS

NOT SOLD SEPARAT

WASHER - rubber, switch terminal

1шт.

72

NSS

NOT SOLD SEPARAT

WASHER - plain, switch terminal

1шт.

73

NSS

NOT SOLD SEPARAT

SCREW - attaching, solenoid switch

2шт.

74

NSS

NOT SOLD SEPARAT

WASHER - lock, solenoid switch attaching screw

2шт.
