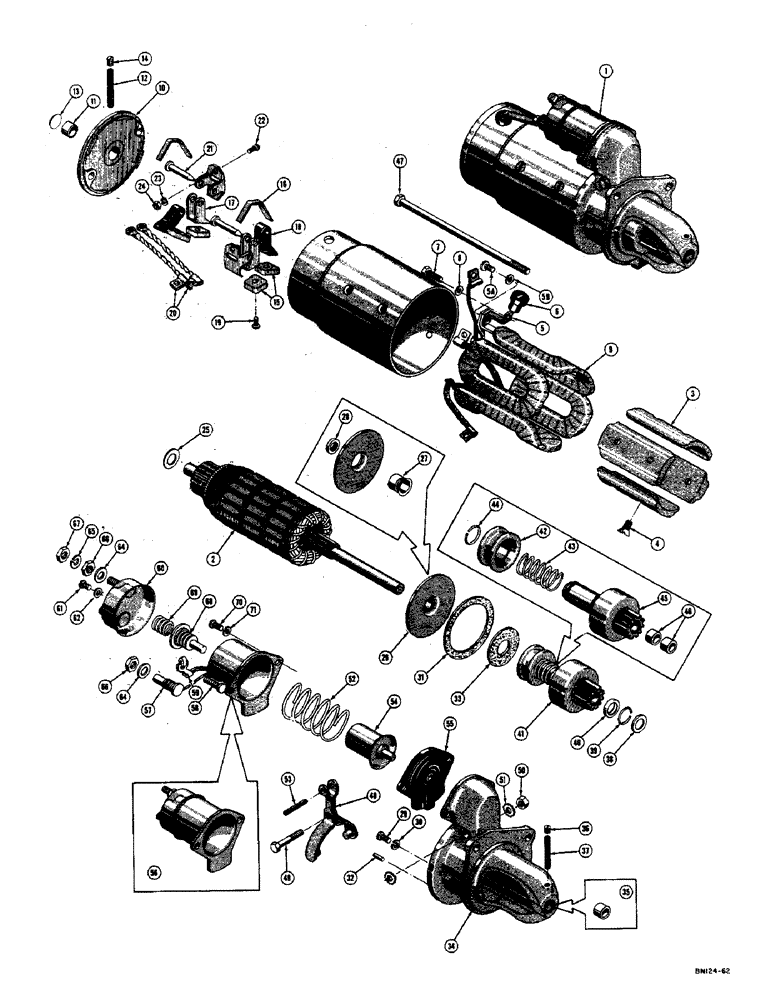

Запчасти Case 310F (072) - G44927 STARTER - DIESEL (06) - ELECTRICAL SYSTEMS
№
Артикул
Название
Примечание
Количество
1
NSS
NOT SOLD SEPARAT
STARTER AND SOLENOID ASSEMBLY
1шт.
2
A25313
X
ARMATURE
1шт.
3
A25391
SHOE
- pole
4шт.
4
NSS
NOT SOLD SEPARAT
SCREW - pole shoe
8шт.
5
NSS
NOT SOLD SEPARAT
CONNECTOR - field to solenoid switch
1шт.
5a
NSS
NOT SOLD SEPARAT
SCREW - switch, Serial Range: connector-field
1шт.
5b
NSS
NOT SOLD SEPARAT
WASHER - lock
1шт.
6
NSS
NOT SOLD SEPARAT
GROMMET - connector (In field frame)
1шт.
7
NSS
NOT SOLD SEPARAT
SCREW - field, Serial Range: lead-switch
1шт.
8
NSS
NOT SOLD SEPARAT
WASHER - lock, field lead to switch
1шт.
9
A25319
COIL
- field
1шт.
10
A25304
FRAME
ASSEMBLY - commutator end
1шт.
11
A25403
BUSHING - commutator end
1шт.
12
NSS
NOT SOLD SEPARAT
WICK - oil, commutator end
1шт.
13
NSS
NOT SOLD SEPARAT
PLUG - expansion, commutator end
1шт.
14
NSS
NOT SOLD SEPARAT
PLUG - pipe, commutator end
1шт.
15
A25356
BRUSH, COMMUTATOR
BRUSH
4шт.
16
A25359
SPRING
- brush
2шт.
17
R15026
X
HOLDER - ground brush
2шт.
18
R15027
HOLDER
- insulated brush
2шт.
19
NSS
NOT SOLD SEPARAT
SCREW - brush attaching
4шт.
A25379
KIT
- service, brush holder support
2шт.
20
A25363
ELECTRICAL WIRE
LEAD - brush ground
2шт.
21
NSS
NOT SOLD SEPARAT
PIN - brush support
2шт.
22
NSS
NOT SOLD SEPARAT
SCREW - attaching, support
4шт.
23
NSS
NOT SOLD SEPARAT
WASHER - lock, support attaching screw
4шт.
24
NSS
NOT SOLD SEPARAT
NUT - support attaching screw
4шт.
25
NSS
NOT SOLD SEPARAT
WASHER - space, commutator end
1шт.
26
A25331
X
CENTER BEARING PLATE
1шт.
27
NSS
NOT SOLD SEPARAT
BUSHING - center bearing
1шт.
28
NSS
NOT SOLD SEPARAT
SEAL - oil, center bearing
1шт.
29
NSS
NOT SOLD SEPARAT
SCREW - attaching, center bearing
2шт.
30
NSS
NOT SOLD SEPARAT
WASHER - lock, center bearing attaching screw
2шт.
31
NSS
NOT SOLD SEPARAT
GASKET - between center bearing and housing
1шт.
32
NSS
NOT SOLD SEPARAT
PIN - dowel, drive end
1шт.
33
NSS
NOT SOLD SEPARAT
WASHER - brake (Between center bearing and motor drive)
1шт.
34
A25351
HOUSING - drive
1шт.
35
NSS
NOT SOLD SEPARAT
BUSHING - drive end
1шт.
36
NSS
NOT SOLD SEPARAT
PLUG - pipe, drive end
1шт.
37
NSS
NOT SOLD SEPARAT
WICK - oil, drive end
1шт.
38
A25385
WASHER
- space, drive end
1шт.
39
R15048
RING
- retainer, pinion stop
1шт.
40
R15049
COLLAR
- pinion stop
1шт.
41
A25337
X
DRIVE ASSEMBLY - motor
1шт.
42
NSS
NOT SOLD SEPARAT
COLLAR - pinion stop
1шт.
43
NSS
NOT SOLD SEPARAT
SPRING - drive assembly
1шт.
44
NSS
NOT SOLD SEPARAT
WIRE - lock, drive assembly
1шт.
45
NSS
NOT SOLD SEPARAT
PINION - motor drive
1шт.
46
NSS
NOT SOLD SEPARAT
BUSHING - oilless
2шт.
47
A25376
X
BOLT - thru
2шт.
48
A25397
LEVER
- shift
1шт.
49
A25401
SCREW - shift lever
1шт.
50
NSS
NOT SOLD SEPARAT
NUT - shift lever stud
1шт.
51
NSS
NOT SOLD SEPARAT
WASHER - lock, shift lever stud
2шт.
52
A25396
X
SPRING - plunger return
1шт.
53
A25399
X
PIN - shift lever
1шт.
54
A25395
X
PLUNGER - solenoid switch
1шт.
55
A25410
BOOT
- solenoid switch
1шт.
56
A35350
X
SWITCH - solenoid
1шт.
57
NSS
NOT SOLD SEPARAT
STUD - terminal, motor
1шт.
53
NSS
NOT SOLD SEPARAT
STUD - terminal, switch
1шт.
59
NSS
NOT SOLD SEPARAT
CLIP - terminal
1шт.
60
NSS
NOT SOLD SEPARAT
COVER - solenoid switch
1шт.
61
NSS
NOT SOLD SEPARAT
SCREW - cover attaching
2шт.
62
NSS
NOT SOLD SEPARAT
WASHER - cover attaching screw
2шт.
63
NSS
NOT SOLD SEPARAT
STUD - terminal, battery (3/8" - 16 NC)
1шт.
64
NSS
NOT SOLD SEPARAT
WASHER - sealing, battery terminal
2шт.
65
NSS
NOT SOLD SEPARAT
WASHER - lock, battery terminal (3/8")
1шт.
66
NSS
NOT SOLD SEPARAT
NUT - sealing, terminal (3/8" - 16 NC)
2шт.
67
NSS
NOT SOLD SEPARAT
NUT - hex., terminal stud (3/8" - 16 NC)
1шт.
68
NSS
NOT SOLD SEPARAT
CONTACT ASSEMBLY
1шт.
69
NSS
NOT SOLD SEPARAT
SPRING - return, contact
1шт.
70
NSS
NOT SOLD SEPARAT
SCREW - attaching, solenoid switch
2шт.
71
NSS
NOT SOLD SEPARAT
WASHER - lock, solenoid switch attaching screw
2шт.
Выбрано товаров: 74
