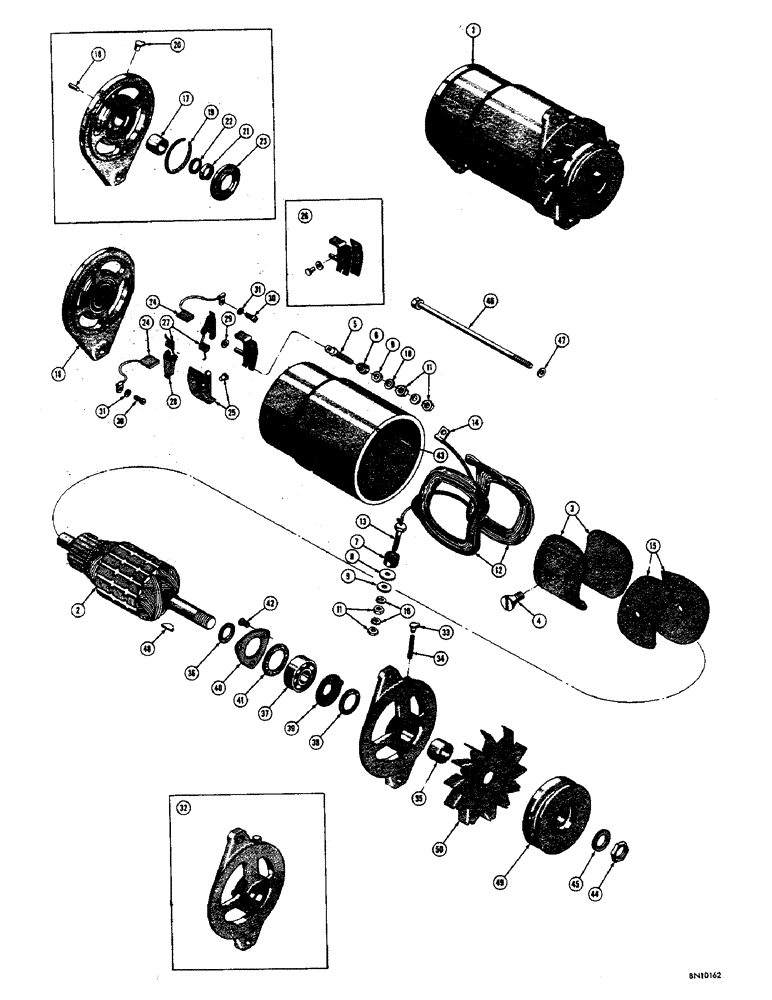

Запчасти Case 310F (070) - D27034 GENERATOR - DIESEL (06) - ELECTRICAL SYSTEMS

1

D27034

GENERATOR

GENERATOR ASS'Y

1шт.

1

104018A1R

REMAN-GENERATOR

2 Brush

1шт.

1

104018A1C

CORE-GENERATOR

Return Number

1шт.

2

A25428

ARM ASSY.

ARMATURE

1шт.

3

R16145

SPARE PART SHOE - pole

2шт.

4

NSS

NOT SOLD SEPARAT

SCREW - pole shoe

2шт.

5

R16146

X

STUD - armature terminal

1шт.

6

R16147

BUSHING

BUSHING - insulation, armature terminal stud

1шт.

7

R15077

X

BUSHING - insulation, field terminal stud

1шт.

8

NSS

NOT SOLD SEPARAT

WASHER - insulation, field terminal stud

1шт.

9

NSS

NOT SOLD SEPARAT

WASHER - plain, terminal stud

2шт.

10

NSS

NOT SOLD SEPARAT

WASHER - lock, terminal stud

4шт.

11

NSS

NOT SOLD SEPARAT

NUT - hex., terminal stud

4шт.

12

A25438

X

FIELD COIL SET

1шт.

13

R16150

X

STUD - field terminal

1шт.

14

NSS

NOT SOLD SEPARAT

CLIP -, Serial Range: terminal-brush

1шт.

15

R16152

INSULATOR

INSULATOR - field coil

2шт.

16

A25412

X

FRAME - commutator end

1шт.

17

A25459

BUSHING

BUSHING - commutator end

1шт.

18

NSS

NOT SOLD SEPARAT

PIN - dowel, commutator end

1шт.

19

NSS

NOT SOLD SEPARAT

WICK - oil, commutator end

1шт.

20

NSS

NOT SOLD SEPARAT

OILER - commutator end

1шт.

21

NSS

NOT SOLD SEPARAT

CUP - felt retainer, commutator end

1шт.

22

NSS

NOT SOLD SEPARAT

WASHER - felt, commutator end

1шт.

23

NSS

NOT SOLD SEPARAT

RETAINER - wick, commutator end

1шт.

24

R4286

BRUSH, COMMUTATOR

BRUSH BRUSH

2шт.

25

R16159

X

HOLDER - ground brush

1шт.

26

R16160

X

HOLDER - insulated brush

1шт.

27

R16161

VALVE SPRING

SPRING - brush

2шт.

28

R15090

ARM

ARM - brush

2шт.

29

NSS

NOT SOLD SEPARAT

WASHER - space, brush arm

2шт.

30

NSS

NOT SOLD SEPARAT

SCREW - attaching, brush lead

2шт.

31

NSS

NOT SOLD SEPARAT

WASHER - lock, brush lead attaching screw

2шт.

32

R16163

X

FRAME - drive end

1шт.

33

NSS

NOT SOLD SEPARAT

OILER - drive end

1шт.

34

NSS

NOT SOLD SEPARAT

WICK - oil, drive end

1шт.

35

R16166

BUSHING

COLLAR - space, drive end (Outer)

1шт.

36

NSS

NOT SOLD SEPARAT

WASHER - space, drive end (Inner)

1шт.

37

G10623

BALL BEARING

BEARING - ball, drive end

1шт.

38

NSS

NOT SOLD SEPARAT

WASHER - felt, drive end

1шт.

39

NSS

NOT SOLD SEPARAT

PLATE - retainer, felt washer (Drive end)

1шт.

40

R15101

PLATE

PLATE - retainer, ball bearing (Drive end)

1шт.

41

R16170

GASKET

GASKET - bearing retainer plate

1шт.

42

NSS

NOT SOLD SEPARAT

SCREW - attaching, bearing retainer plate

3шт.

43

NSS

NOT SOLD SEPARAT

PIN - dowel, drive end

1шт.

44

R15105

X

NUT - armature shaft, drive end

1шт.

45

R16171

SPRING WASHER

WASHER - lock, shaft nut

1шт.

46

R16172

BOLT

BOLT - thru

2шт.

47

NSS

NOT SOLD SEPARAT

WASHER - lock, thru bolt

2шт.

48

R15047

X

KEY - Woodruff, drive end

1шт.

49

A25454

PULLEY

PULLEY - drive end

1шт.

50

A25449

FAN

FAN - ventilating, drive end

1шт.
