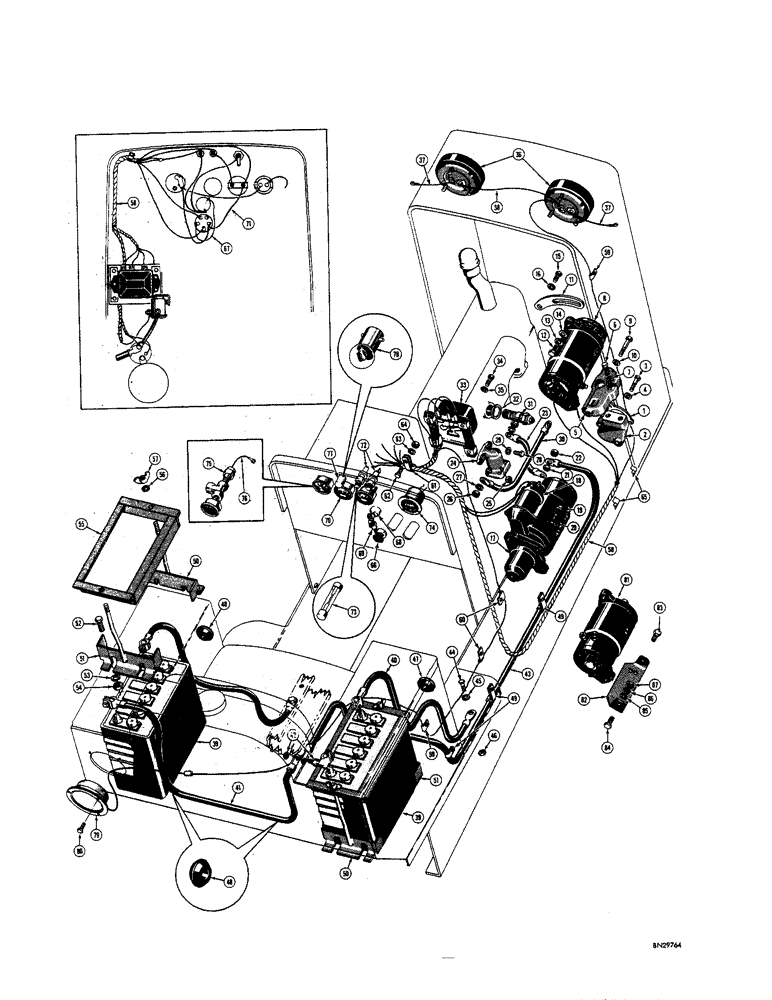

Запчасти Case 310F (066) - STARTER, GENERATOR, BATTERY, AND WIRING - DIESEL, USED ON TRAC. PRIOR TO SN 3019958 & AFTER (06) - ELECTRICAL SYSTEMS

1

VT3691

X

GASKET - generator support bracket

1шт.

2

G2098

SUPPORT - generator bracket

1шт.

3

15-652

X

HHCS - 3/8" - 16 NC x 3-1/8"

3шт.

4

92-6

LOCK WASHER,3/8"

3шт.

5

G2131

X

BRACKET - generator

1шт.

6

13-524

BOLT,Hex, 5/16" - 18 x 1-1/2", Gr 5

- hex, 5/16 NC x 1-1/2", inner

1шт.

13-518

BOLT,Hex, 5/16" - 18 x 1-1/8", Gr 5

Outer Hex, 5/16"-18 x 1 1/8", G5

1шт.

7

92-5

LOCK WASHER,5/16"

2шт.

8

D27034

GENERATOR

- Delco-Remy no. 1100404 (See Figure 070 for breakdown)

1шт.

9

13-518

BOLT,Hex, 5/16" - 18 x 1-1/8", Gr 5

2шт.

10

92-5

LOCK WASHER,5/16"

2шт.

11

G11345

STRAP

- generator adjusting

1шт.

12

13-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

1шт.

13

92-5

LOCK WASHER,5/16"

1шт.

14

95-5

WASHER,3/8" x 7/8" x .083"

- standard wrot (3/8" I.D. x 7/8" O.D. x 5/64" thick)

1шт.

15

13-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5, Full Thd

1шт.

16

92-6

LOCK WASHER,3/8"

1шт.

17

D32189

MOTOR - starting (Delco-Remy no. 1107574) See Figure 076 for breakdown

1шт.

18

A25551

SWITCH

SOLENOID - D32189 starting motor (See Figure 076 for breakdown)

1шт.

19

413-632

BOLT,Hex, 3/8" - 16 x 2", Gr 5

3шт.

20

92-6

LOCK WASHER,3/8"

3шт.

21

87016560

JAM NUT,Jam, 3/8"-16, G5

1шт.

22

193-1002

NUT,Keps, #8 - 32, w/ Ext Tooth LW

- keps, zinc plated (No. 8 - 32 NC)

1шт.

23

G44053

X

CABLE - starter solenoid to heater solenoid

1шт.

24

G44835

SOLENOID

- heater switch (Use A21481)

1шт.

A21481

SOLENOID

- heater switch

1шт.

25

193-1000

NUT,Keps, w/LW,#10-32

- keps, zinc plated (No. 10 - 32 NF)

1шт.

26

86637933

JAM NUT,5/16" - 24, Gr 5

2шт.

27

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, 5/16"

2шт.

28

113-1

BOLT,Hex, 1/4" - 20 x 1/2", Gr 5

Heater solenoid to block Hex, 1/4"-20 x 1/2", G5, Full Thd

2шт.

29

193-60

LOCK WASHER,Int Tooth, 1/4"

WASHER, LOCK, Int Tooth, 1/4"

2шт.

30

A21482

CABLE

- heater, Serial Range: solenoid-heater

1шт.

31

A24396

X

PLUG - heater, manifold

1шт.

32

A20916

MANIFOLD GASKET

GASKET - heater plug

1шт.

33

D27035

REGULATOR

- voltage (Delco-Remy no. 1119279)

1шт.

D34010

X

REGULATOR - voltage (D34009 generator only)

1шт.

34

13-516

BOLT,Hex, 5/16" - 18 x 1", Gr 5

4шт.

35

92-5

LOCK WASHER,5/16"

4шт.

36

D30243

LAMP

LIGHT - head (See Figure 092 for breakdown)

2шт.

37

G44030

WIRE - ground, headlight

2шт.

38

D25753

JUMPER - headlight

1шт.

39

D32194

X

BATTERY - 12 volt (Prestolite no. 12HA70)

2шт.

40

D32191

CABLE - battery, ground (Positive)

2шт.

41

D32193

CABLE - battery, jumper (Negative)

1шт.

42

D32190

SPARE PART

TERMINAL - battery (Special)

1шт.

43

D32192

CABLE

- battery, hot (Negative)

1шт.

44

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

1шт.

45

92-6

LOCK WASHER,3/8"

1шт.

46

25-106

NUT,3/8"-16, G5

- hex. (3/8" - 16 NC)

1шт.

47

49564

GROMMET,1 1/2" ID x 1 3/4" Groove Dia

- rubber (R.H. battery box - front)

1шт.

48

49562

GROMMET,11/16" ID x 1" Groove Dia

- rubber (R.H. battery box - rear, L.H. battery box - front and rear)

3шт.

49

49836

CLAMP

- wire, battery cable

3шт.

50

D27095

RETAINER - battery, rear bracket for R.H. battery and front battery for L.H. battery

2шт.

51

D28378

RETAINER - battery, front bracket for R.H. battery and rear bracket for L.H. battery

2шт.

52

113-207

BOLT,Hex, 3/8" - 16 x 1", Gr 5

8шт.

53

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

8шт.

54

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, 3/8"-16, G5

8шт.

55

D32227

BRACKET - battery hold down

2шт.

56

95-6

WASHER,3/8"

- standard wrot (7/16" I.D. x 1" O.D. x 5/64" thick)

4шт.

57

129-410

WING NUT,3/8"-16

NUT - wing (3/8" - 16 NC)

4шт.

58

D27492

HARNESS - main wiring

1шт.

59

O4599AB

CLAMP - wire, main wiring harness

2шт.

60

O2457AB

CLAMP - wire, main wiring harness

2шт.

61

49838

CLAMP

- wire, main wiring harness

1шт.

62

13-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5, Full Thd

1шт.

63

92-4

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

1шт.

64

25-104

NUT,1/4"-20, G5

1шт.

65

NLS

NO LONGER SERVICED

- wire, main wiring harness

2шт.

66

R22699

X

SWITCH - light

1шт.

67

NLS

NO LONGER SERVICED

JUMPER - light switch to ignition switch

1шт.

68

D29292

SWITCH - starter

1шт.

69

A20346

KEY

- switch

1шт.

70

R18748

AMMETER

1шт.

71

33709

JUMPER - ammeter to ignition switch

1шт.

72

D23834

HOLDER

- fuse

2шт.

73

223-25

FUSE,25 Amp, Type 3AG

- AGC, 25 amp (1/4" dia. x 1-1/4" long)

2шт.

74

33481

X

METER - engine hour

1шт.

75

D28798

SWITCH

- pressure, oil

1шт.

76

D28797

ELECTRICAL WIRE

WIRE - pressure switch

1шт.

77

D26513

LIGHT - dash

1шт.

78

D26704

X

BULB - dash light (Mfr's no. 57)

1шт.

79

30903

LIGHT - tail, 12 volt (See Figure 130 for breakdown)

1шт.

33685

BULB - taillight (Mfr's no. 1141) Not shown

1шт.

80

187-29

SCREW

- self tapping, taillight

3шт.

81

D34009

GENERATOR

- enclosed, optional (See Figure 080 for breakdown)

1шт.

82

D34012

BRACKET

- generator mounting (D34009 generator only)

1шт.

83

13-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

(D34009 generator only) Hex, 5/16"-18 x 3/4", G5, Full Thd

2шт.

84

13-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5, Full Thd

(D34009 generator only) Hex, 3/8"-16 x 1 1/4", G5, Full Thd

2шт.

85

95-6

WASHER,3/8"

- plain () D34009 generator only 3/8"

2шт.

86

92-6

LOCK WASHER,3/8"

D34009 generator only 3/8"

2шт.

87

25-106

NUT,3/8"-16, G5

- hex. (3/8" - 16 NC) D34009 generator only

2шт.
