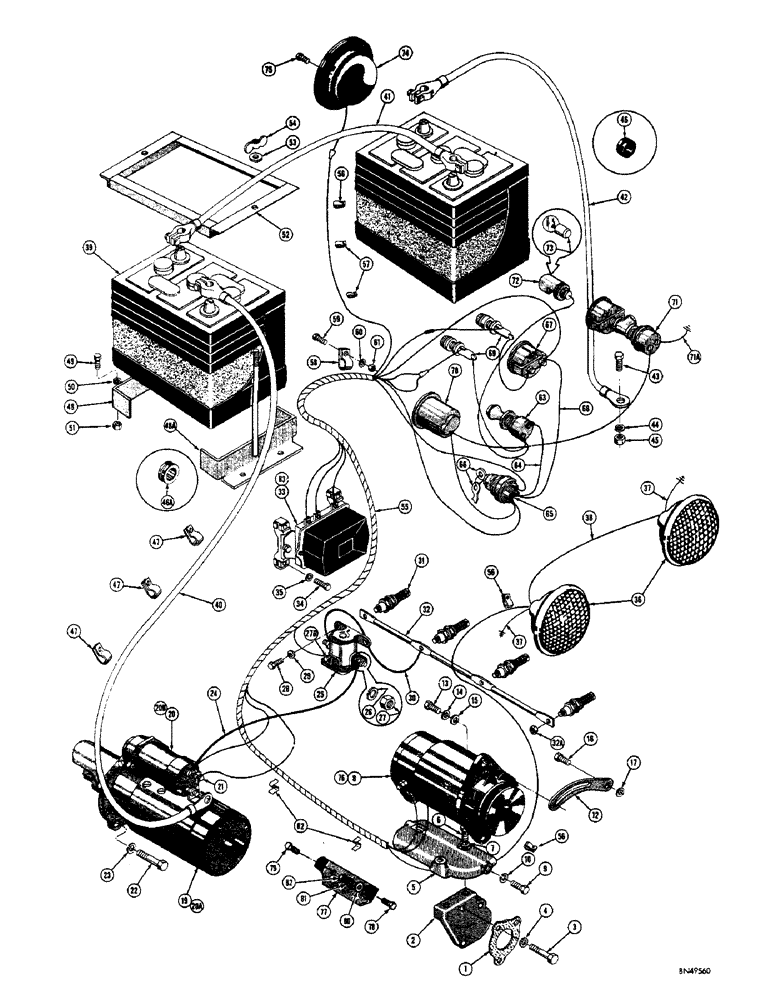

Запчасти Case 310F (062) - STARTER, GENERATOR, BATTERY, AND WIRING - DIESEL, USED ON TRACS. PRIOR TO SN 3019958 (06) - ELECTRICAL SYSTEMS

1

VT3691

X

GASKET - generator bracket support

1шт.

2

G2098

SPARE PART SUPPORT - generator bracket

1шт.

3

15-652

X

HHCS - 3/8" - 16 NC x 3-1/8"

3шт.

4

92-6

LOCK WASHER,3/8"

LOCK WASHER, 3/8"

3шт.

5

G2131

X

BRACKET - generator

1шт.

6

13-524

BOLT,Hex, 5/16" - 18 x 1-1/2", Gr 5

BOLT - hex, 5/16 NC x 1-1/2", inner

1шт.

13-518

BOLT,Hex, 5/16" - 18 x 1-1/8", Gr 5

BOLT, , Outer Hex, 5/16"-18 x 1 1/8", G5

1шт.

7

92-5

LOCK WASHER,5/16"

LOCK WASHER, 5/16"

2шт.

8

D27034

GENERATOR

GENERATOR - Delco-Remy #1100404 (See Figure 070 for breakdown)

1шт.

8

104450A1R

REMAN-GENERATOR

Remanufactured Generator, 12 volt 20 ampere

1шт.

8

104450A1C

CORE-GENERATOR

Return Number, 12 volt 20 ampere

1шт.

9

13-518

BOLT,Hex, 5/16" - 18 x 1-1/8", Gr 5

BOLT, Hex, 5/16"-18 x 1 1/8", G5

2шт.

10

92-5

LOCK WASHER,5/16"

LOCK WASHER, 5/16"

2шт.

11

RESERVED

1шт.

12

G11345

STRAP

STRAP - generator adjusting

1шт.

13

13-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

BOLT, Hex, 5/16"-18 x 3/4", G5, Full Thd

1шт.

14

92-5

LOCK WASHER,5/16"

LOCK WASHER, 5/16"

1шт.

15

95-5

WASHER,3/8" x 7/8" x .083"

WASHER - standard wrot (3/8" I.D. x 7/8" O.D. x 5/64" thick)

1шт.

16

13-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5, Full Thd

BOLT, Hex, 3/8"-16 x 1 1/4", G5, Full Thd

1шт.

17

92-6

LOCK WASHER,3/8"

LOCK WASHER, 3/8"

1шт.

18

RESERVED

1шт.

19

G44927

SPARE PART MOTOR - starting (Delco-Remy #1107516) See page 072 for breakdown

1шт.

20

A35350

X

SOLENOID - starting motor (Delco-Remy #1114289) See Figure 072 for breakdown

1шт.

192-21

LOCK WASHER,3/8"

WASHER, LOCK, (Solenoid battery terminal) (Not shown) 3/8"

1шт.

87016560

JAM NUT,Jam, 3/8"-16, G5

NUT, , Solenoid battery terminal, Not shown Jam, 3/8"-16, G5

1шт.

21

193-1002

NUT,Keps, #8 - 32, w/ Ext Tooth LW

NUT - keps, zinc plated (No. 8 - 32 NC)

1шт.

22

413-632

BOLT,Hex, 3/8" - 16 x 2", Gr 5

BOLT, Hex, 3/8"-16 x 2", G5

3шт.

23

92-6

LOCK WASHER,3/8"

LOCK WASHER, 3/8"

3шт.

24

G44053

X

CABLE - starter solenoid to heater solenoid

1шт.

25

G44835

SOLENOID

SOLENOID - heater switch

1шт.

26

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, 5/16"

2шт.

27

86637933

JAM NUT,5/16" - 24, Gr 5

NUT, Jam, 5/16"-24, G5

2шт.

27b

193-1000

NUT,Keps, w/LW,#10-32

NUT - keps, zinc plated (No. 10 - 32 NF)

1шт.

28

113-1

BOLT,Hex, 1/4" - 20 x 1/2", Gr 5

BOLT, , Heater solenoid to block Hex, 1/4"-20 x 1/2", G5, Full Thd

2шт.

29

193-60

LOCK WASHER,Int Tooth, 1/4"

WASHER, LOCK, Int Tooth, 1/4"

2шт.

30

G44067

SPARE PART CABLE - heater solenoid to heaters (Used on tractors prior to SN 3019773) See A21482

1шт.

A21482

CABLE

CABLE - heater solenoid to heaters (Used on tractors SN 3019773 and after) Not shown (See G44067)

1шт.

31

G45259

PLUG

PLUG - heater, manifold (Used on tractors prior to SN 3019773) See A24396

4шт.

A24396

X

PLUG - heater, manifold (Used on tractor SN 3019773 and after) Not shown (See G45259)

1шт.

A20916

MANIFOLD GASKET

GASKET - heater plug, A24396 heater (Not shown)

1шт.

32

G15955

BAR

BAR - connecting, heater plugs (Used with G44067 heaters only)

1шт.

32a

193-1000

NUT,Keps, w/LW,#10-32

NUT - keps, zinc plated (No. 10 - 32 NF) Used with G44067 heaters only)

4шт.

33

D27035

REGULATOR

SPARE PART REGULATOR - voltage (Delco-Remy #1119279)

1шт.

34

13-516

BOLT,Hex, 5/16" - 18 x 1", Gr 5

BOLT, Hex, 5/16"-18 x 1", G5, Full Thd

4шт.

35

92-5

LOCK WASHER,5/16"

LOCK WASHER, 5/16"

4шт.

36

REF

INSTRUCTION

LIGHT - head (See Figure 092, ref. no. 12)

2шт.

37

D29957

WIRE - ground, headlight (When stock is exhausted, order G44030)

2шт.

G44030

WIRE - ground, headlight (See D29957)

2шт.

38

D25753

JUMPER - headlight

1шт.

39

D27664

SPARE PART BATTERY - 6 volt (Original Equipment - Auto-Lite #1MA-105R; Standard Replacement - Auto-Lite #1HA-115R2)

2шт.

40

32375

CABLE

SPARE PART CABLE - battery, hot (75")

1шт.

41

38479

CABLE - battery, jumper (52")

1шт.

42

D27497

SPARE PART CABLE - battery, ground (35")

1шт.

43

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

BOLT, , Rear floor plate bolt Hex, 3/8"-16 x 1", G5, Full Thd

1шт.

44

92-6

LOCK WASHER,3/8"

LOCK WASHER, 3/8"

1шт.

45

25-106

NUT,3/8"-16, G5

NUT - hex. (3/8" - 16 NC)

1шт.

46

49562

GROMMET,11/16" ID x 1" Groove Dia

GROMMET - rubber, battery cable (L.H. tool box)

1шт.

46a

49564

GROMMET,1 1/2" ID x 1 3/4" Groove Dia

GROMMET - rubber, battery cable (R.H. tool box)

1шт.

47

49836

CLAMP

CLAMP - wire, battery cable

3шт.

48

D27095

RETAINER - battery, rear bracket for R.H. battery and front bracket for L.H. battery

2шт.

49

113-207

BOLT,Hex, 3/8" - 16 x 1", Gr 5

BOLT, Hex, 3/8"-16 x 1", G5, Full Thd

8шт.

50

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

8шт.

51

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, 3/8"-16, G5

8шт.

52

D22844

BRACKET

BRACKET - battery holddown

2шт.

53

95-6

WASHER,3/8"

WASHER - standard wrot (7/16" I.D. x 1" O.D. x 5/64" thick)

4шт.

54

129-410

WING NUT,3/8"-16

NUT - wing (3/8" - 16 NC)

4шт.

55

D27492

SPARE PART HARNESS - main wiring

1шт.

56

O4599AB

SPARE PART CLAMP - wire, main wiring harness

3шт.

57

O2457AB

SPARE PART CLAMP - wire, main wiring harness

2шт.

58

49838

CLAMP

CLAMP - wire, main wiring harness

1шт.

59

13-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5, Full Thd

BOLT, Hex, 1/4"-20 x 3/4", G5, Full Thd

1шт.

60

92-4

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

1шт.

61

25-104

NUT,1/4"-20, G5

NUT, 1/4"-20, G5

1шт.

62

49874

ROD

CLIP - wire, main wiring harness

2шт.

63

R22699

X

SWITCH - light

1шт.

64

33705

GLASS

WIRE JUMPER - light switch to ignition switch

1шт.

65

D29292

SPARE PART SWITCH - starter

1шт.

66

A20346

KEY

KEY - ignition switch

1шт.

67

10860

X

AMMETER AMMETER - when stock is exhausted, order R18748

1шт.

R18748

AMMETER

AMMETER - see 10860

1шт.

68

33709

JUMPER - ammeter to ignition switch

1шт.

69

D23834

HOLDER

HOLDER - fuse

2шт.

223-25

FUSE,25 Amp, Type 3AG

FUSE - AGC, 25 amp

1шт.

70

33481

X

METER - engine hour

1шт.

71

D28798

SWITCH

SWITCH - pressure, oil

1шт.

71a

D28797

ELECTRICAL WIRE

WIRE WIRE - pressure switch

1шт.

72

D26513

SPARE PART LIGHT - dash

1шт.

73

D26704

X

BULB - dash light (Mfr's #57)

1шт.

74

30903

SPARE PART LIGHT - tail, 12 volt (See Figure 130 for breakdown)

1шт.

33685

SPARE PART BULB - taillight (Mfr's #1141) Not shown

1шт.

75

187-29

SCREW

SCREW - self-tapping, taillight

3шт.

76

D34009

GENERATOR

GENERATOR - enclosed (Optional) See Figure 080 for breakdown

1шт.

77

D34012

BRACKET

BRACKET - generator mounting (D34009 generator only)

1шт.

78

13-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

BOLT, (D34009 generator only) Hex, 5/16"-18 x 3/4", G5, Full Thd

2шт.

79

13-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5, Full Thd

BOLT, (D34009 generator only) Hex, 3/8"-16 x 1 1/4", G5, Full Thd

2шт.

80

95-6

WASHER,3/8"

WASHER - plain () D34009 generator only 3/8"

2шт.

81

92-6

LOCK WASHER,3/8"

LOCK WASHER, , D34009 generator only 3/8"

2шт.

82

25-106

NUT,3/8"-16, G5

NUT - hex. (3/8" - 16 NC) D34009 generator only

2шт.

83

D34010

X

REGULATOR - voltage (D34009 generator only)

1шт.
