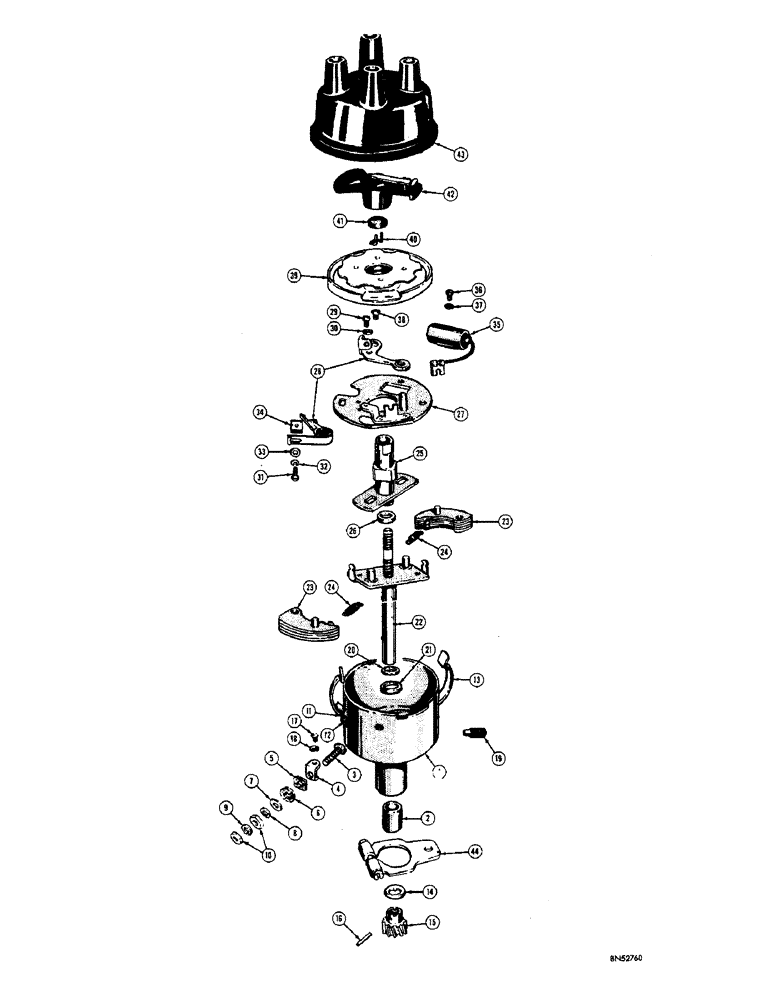

Запчасти Case 310F (034) - A49015 DISTRIBUTOR (06) - ELECTRICAL SYSTEMS

A49015

X

DISTRIBUTOR - complete

1шт.

1

A25172

BASE ASSEMBLY - distributor

1шт.

2

A24766

BUSHING

BEARING - absorbent bronze

2шт.

3

NSS

NOT SOLD SEPARAT

STUD - terminal, primary

1шт.

4

NSS

NOT SOLD SEPARAT

CONNECTOR - terminal stud

1шт.

5

NSS

NOT SOLD SEPARAT

INSULATION - terminal stud, inner

1шт.

NSS

NOT SOLD SEPARAT

BRACKET - mounting, braker plate (Not illustrated)

2шт.

6

NSS

NOT SOLD SEPARAT

BUSHING - insulation, terminal stud

1шт.

7

NSS

NOT SOLD SEPARAT

WASHER - insulation, terminal stud

1шт.

8

NSS

NOT SOLD SEPARAT

WASHER - plain, terminal stud (No. 10)

1шт.

9

NSS

NOT SOLD SEPARAT

WASHER - lock, terminal stud (No. 10)

1шт.

10

NSS

NOT SOLD SEPARAT

NUT - hex., term. stud (No. 10 - 32 NF)

2шт.

11

NSS

NOT SOLD SEPARAT

BRACKET - cap spring

2шт.

12

NSS

NOT SOLD SEPARAT

RIVET - tubular

4шт.

13

NSS

NOT SOLD SEPARAT

SPRING - clamp, cap

2шт.

14

A25200

WASHER

- thrust, driveshaft (Lower)

1шт.

NSS

NOT SOLD SEPARAT

TERMINAL - high tension wire (Not illustrated)

5шт.

15

G11714

GEAR

- distributor drive

1шт.

16

A25201

PIN

- drive gear

1шт.

17

NSS

NOT SOLD SEPARAT

SCREW - round head, connector (No. 6 - 32 NC x 3/16")

1шт.

18

NSS

NOT SOLD SEPARAT

WASHER - lock, terminal stud (No. 6)

1шт.

19

A24887

OILER - distributor shaft brg.

1шт.

20

A24752

WASHER

- thrust, driveshaft, inner (Upper)

1шт.

21

A24753

WASHER

- thrust, driveshaft, outer (Upper)

1шт.

22

A25177

SHAFT

- distributor drive

1шт.

23

A25198

WEIGHT

- governor

2шт.

24

A25208

SET

SPRING - governor weight (Set of two)

1шт.

25

A25193

CAM

AND STOP PLATE - four cylinder

1шт.

NSS

NOT SOLD SEPARAT

SPRING - anti-rattle (Not illustrated)

1шт.

26

A25197

SPACER

- cam

1шт.

NSS

NOT SOLD SEPARAT

WICK - felt (Not illulstrated)

1шт.

A25196

PLATE

ASSEMBLY - complete

1шт.

27

NSS

NOT SOLD SEPARAT

PLATE - breaker

1шт.

28

A25195

CONTACT

SET - breaker points

1шт.

29

NSS

NOT SOLD SEPARAT

SCREW - lock, fillister head (No. 8 - 32 NC x 3/16")

1шт.

30

NSS

NOT SOLD SEPARAT

WASHER - plain (No. 8)

1шт.

31

NSS

NOT SOLD SEPARAT

SCREW - spring clamp (No. 6 - 32 NC x 5/16")

1шт.

32

NSS

NOT SOLD SEPARAT

WASHER - lock (No. 6)

1шт.

33

NSS

NOT SOLD SEPARAT

WASHER - plain (No. 6)

1шт.

34

NSS

NOT SOLD SEPARAT

CLIP - contact arm spring

1шт.

35

A8370

PACKAGE

CONDENSER

1шт.

36

NSS

NOT SOLD SEPARAT

SCREW - condenser, fillister head (No. 6 - 32 NC x 5/32")

1шт.

37

NSS

NOT SOLD SEPARAT

WASHER - lock, condenser screw (No. 6)

1шт.

38

NSS

NOT SOLD SEPARAT

SCREW - fillister head, braker plate (No. 10 - 32 NF x 5/16")

2шт.

39

A25194

PLATE

SEAL - plate assembly

1шт.

NSS

NOT SOLD SEPARAT

WASHER - felt (Not illustrated)

1шт.

40

A25180

RING, SNAP

SNAP RING - cam retaining

1шт.

41

NSS

NOT SOLD SEPARAT

WICK - felt, cam sleeve

1шт.

NSS

NOT SOLD SEPARAT

PLUG - rubber, vent hole (Not illustrated)

1шт.

42

A8369

ROTOR

- distributor

1шт.

43

A8368

CAP

ASSEMBLY - distributor

1шт.

NSS

NOT SOLD SEPARAT

CONTACT - plunger (Not illustrated)

1шт.

NSS

NOT SOLD SEPARAT

SPRING - contact (Not illustrated)

1шт.

44

VTA2775

X

ARM - advance, distributor

1шт.
