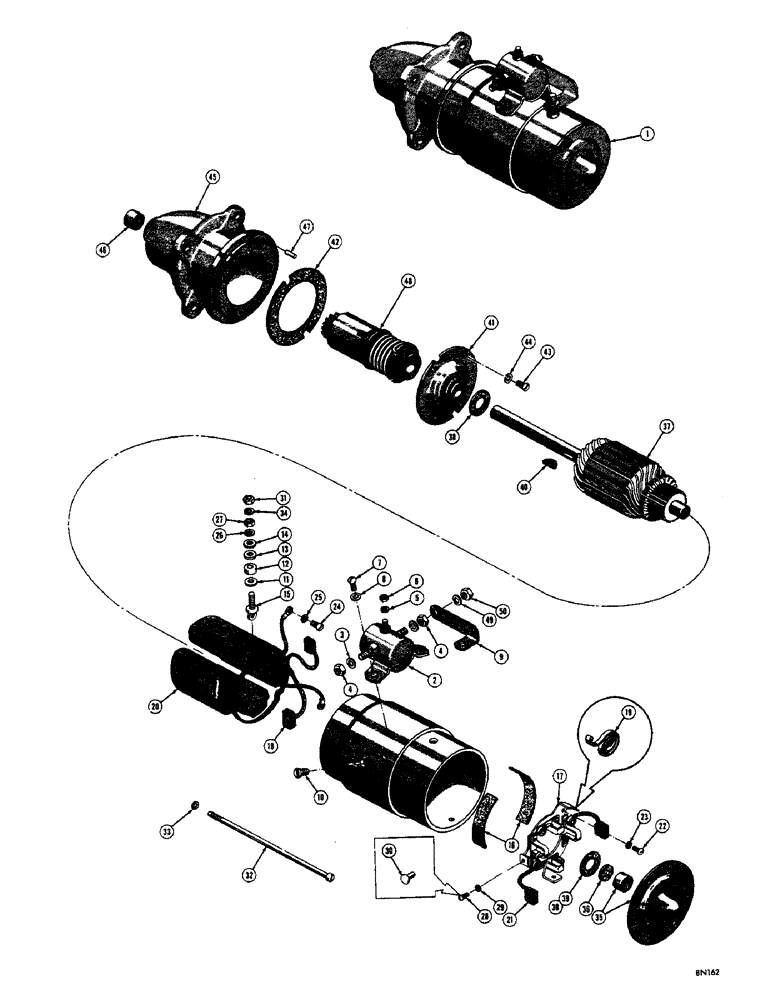

Запчасти Case 310F (032) - G44888 STARTER - GAS (06) - ELECTRICAL SYSTEMS

1

G44888

X

STARTER AND SOLENOID ASSEMBLY

1шт.

1

104223A1R

REMAN-STARTER

Remanufactured STARTER 12 volt Presto Inertia

1шт.

1

104223A1C

CORE-STARTER

Return Part Number, STARTER 12 volt Presto Inertia

1шт.

2

F19812

FLANGE BOLT

SOLENOID ASSEMBLY - (Use A20145)

1шт.

A20145

X

SOLENOID ASSEMBLY

1шт.

3

NSS

NOT SOLD SEPARAT

WASHER - lock (5/16")

2шт.

4

NSS

NOT SOLD SEPARAT

NUT - hex. (5/16" - 24 NF)

2шт.

5

NSS

NOT SOLD SEPARAT

WASHER - lock, (No. 10)

1шт.

6

NSS

NOT SOLD SEPARAT

NUT - hex. (No. 10 - 32 NF)

1шт.

7

NSS

NOT SOLD SEPARAT

SCREW - round head, solenoid mounting (No. 10 - 32 NF x 1/4")

2шт.

8

NSS

NOT SOLD SEPARAT

WASHER - Shakeproof lock, solenoid mounting screw (No. 10)

2шт.

9

NSS

NOT SOLD SEPARAT

BAR - connecting, solenoid to starter

1шт.

NSS

NOT SOLD SEPARAT

STARTER ASSEMBLY - use G44888

1шт.

A25602

FRAME AND FIELD ASSEMBLY - use G44888

1шт.

10

NSS

NOT SOLD SEPARAT

SCREW - pole shoe

4шт.

11

NSS

NOT SOLD SEPARAT

WASHER - insulation, terminal stud (Inner)

1шт.

12

NSS

NOT SOLD SEPARAT

BUSHING - insulation, terminal stud

1шт.

13

NSS

NOT SOLD SEPARAT

WASHER - insulation, terminal stud (Outer)

1шт.

14

NSS

NOT SOLD SEPARAT

WASHER - plain, terminal stud (5/16")

1шт.

15

NSS

NOT SOLD SEPARAT

STUD - terminal

1шт.

16

NSS

NOT SOLD SEPARAT

INSULATION - field connection

2шт.

17

A25612

PLATE

PLATE ASSEMBLY - brush

1шт.

18

NSS

NOT SOLD SEPARAT

BRUSH - grounded - (Use A25603)

2шт.

19

A25606

X

SPRING - brush

4шт.

20

A25604

PACKAGE

FIELD COIL PACKAGE

1шт.

21

NSS

NOT SOLD SEPARAT

BRUSH - (Use A25603)

1шт.

22

NSS

NOT SOLD SEPARAT

SCREW - round head, coil ground lead to brush plate

1шт.

23

NSS

NOT SOLD SEPARAT

WASHER - lock, coil ground lead mounting screw

1шт.

24

NSS

NOT SOLD SEPARAT

SCREW - round head, lead (Terminal stud) No. 8 - 32 NC x 5/16"

1шт.

25

NSS

NOT SOLD SEPARAT

WASHER - lock, terminal stud lead screw (No. 8)

1шт.

26

NSS

NOT SOLD SEPARAT

WASHER - lock, terminal stud (Inner) 5/16"

1шт.

27

NSS

NOT SOLD SEPARAT

NUT - hex., terminal stud (Inner) 5/16" - 18 NC

1шт.

28

NSS

NOT SOLD SEPARAT

SCREW - brush plate mounting

3шт.

29

NSS

NOT SOLD SEPARAT

WASHER - lock, brush plate mounting screw

3шт.

30

NSS

NOT SOLD SEPARAT

RIVET - brush plate and ground lead mounting

3шт.

31

NSS

NOT SOLD SEPARAT

NUT - hex., terminal stud (Outer) 5/16" - 18 NC

1шт.

32

A25601

SCREW

BOLT - thru

2шт.

33

NSS

NOT SOLD SEPARAT

WASHER - lock, thru bolt (1/4")

2шт.

34

NSS

NOT SOLD SEPARAT

WASHER - lock, terminal stud (5/16")

1шт.

35

A25605

HEAD

HEAD ASSEMBLY - commutator end

1шт.

36

NSS

NOT SOLD SEPARAT

FELT

1шт.

37

A25607

ARMATURE

SPARE PART ARMATURE

1шт.

38

A25615

WASHER - armature thrust, commutator end and intermediate bearing (1/32" thick)

2шт.

39

A25609

SPARE PART WASHER - armature thrust, commutator end (3/64" thick)

1шт.

A25613

WASHER - armature thrust, commutator end (.080" thick)

1шт.

A25614

WASHER - armature thrust, commutator end (1/16" thick)

1шт.

40

NSS

NOT SOLD SEPARAT

KEY - no. 6 Woodruff

1шт.

41

G45478

PLATE

BEARING ASSEMBLY - intermediate

1шт.

42

G49610

SPACER

GASKET - intermediate bearing

1шт.

43

NSS

NOT SOLD SEPARAT

SCREW - round head, intermediate bearing (No. 10 - 32 NF x 7/16")

4шт.

44

NSS

NOT SOLD SEPARAT

WASHER - lock, intermediate bearing screw (No. 10)

4шт.

45

A25610

HOUSING

HOUSING ASSEMBLY - pinion

1шт.

46

A25611

BEARING

BEARING - absorbent bronze

1шт.

47

NSS

NOT SOLD SEPARAT

PIN - dowel

1шт.

48

A25600

X

DRIVE - Bendix

1шт.

49

NSS

NOT SOLD SEPARAT

WASHER - lock, solenoid terminal (5/16")

1шт.

50

NSS

NOT SOLD SEPARAT

NUT - hex., solenoid terminal (5/16" - 24 NF)

1шт.

A25603

BRUSH SET

KIT - service, brush set (Not illustrated)

1шт.
