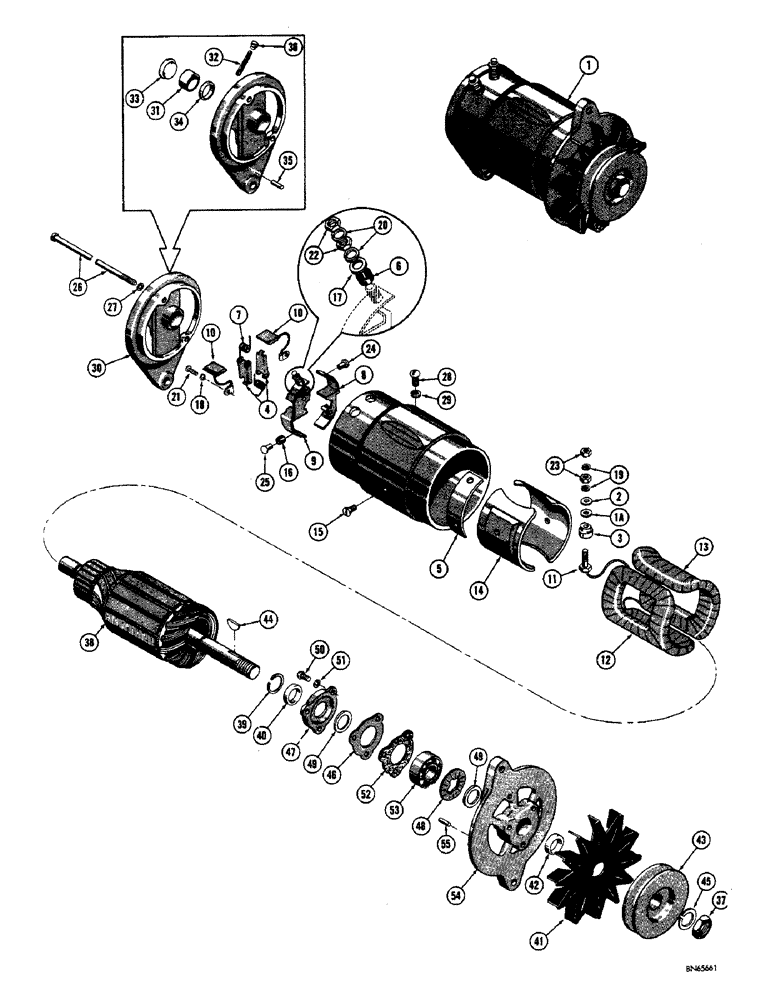

Запчасти Case 310F (030) - D22878 GENERATOR - GAS (06) - ELECTRICAL SYSTEMS

1

D22878

X

GENERATOR ASSEMBLY - complete

1шт.

1

104450A1R

REMAN-GENERATOR

Remanufactured Generator 12 volt 20 ampere

1шт.

1

104450A1C

CORE-GENERATOR

Return Number, 12 Volt 20 Amepere

1шт.

A25627

FRAME AND FIELD ASSEMBLY

1шт.

1a

NSS

NOT SOLD SEPARAT

WASHER - insulation, field terminal

1шт.

2

NSS

NOT SOLD SEPARAT

WASHER - plain, field terminal

1шт.

3

NSS

NOT SOLD SEPARAT

BUSHING - insulation, field terminal

1шт.

4

A25621

X

ARM - brush

2шт.

5

NSS

NOT SOLD SEPARAT

INSULATION - brush holder

1шт.

6

NSS

NOT SOLD SEPARAT

BUSHING - insulation, armature terminal

1шт.

7

A25622

X

SPRING - brush

2шт.

8

NSS

NOT SOLD SEPARAT

HOLDER - brush, ground

1шт.

9

NSS

NOT SOLD SEPARAT

HOLDER AND TERMINAL - insulation brush

1шт.

10

F83422

BRUSH ASSY.

BRUSH SET - service

1шт.

A25628

SPARE PART COIL ASSEMBLY - field, complete

1шт.

11

NSS

NOT SOLD SEPARAT

STUD - field terminal (No. 10 - 32 NF)

1шт.

12

NSS

NOT SOLD SEPARAT

COIL - field, right

1шт.

13

NSS

NOT SOLD SEPARAT

COIL - field, left

1шт.

14

NSS

NOT SOLD SEPARAT

SHOE - pole

2шт.

15

NSS

NOT SOLD SEPARAT

SCREW - pole shoe

2шт.

16

NSS

NOT SOLD SEPARAT

BUSHING - insulation, brush holder rivet

1шт.

17

NSS

NOT SOLD SEPARAT

WASHER - plain, armature terminal

1шт.

18

NSS

NOT SOLD SEPARAT

WASHER - lock, brush lead screw (No. 8)

2шт.

19

NSS

NOT SOLD SEPARAT

WASHER - lock, field terminal (No. 10)

2шт.

20

NSS

NOT SOLD SEPARAT

WASHER - lock, armature terminal (1/4")

2шт.

21

NSS

NOT SOLD SEPARAT

SCREW - round head, brush lead (No. 8 - 32 NC x 1/4")

2шт.

22

NSS

NOT SOLD SEPARAT

NUT - hex., armature terminal (1/4" - 28 NF)

2шт.

23

NSS

NOT SOLD SEPARAT

NUT - hex., field terminal (No. 10 - 32 NF)

2шт.

24

NSS

NOT SOLD SEPARAT

RIVET - ground brush holder

2шт.

25

NSS

NOT SOLD SEPARAT

RIVET - insulation brush holder

1шт.

26

A25629

BOLT - thru

2шт.

27

NSS

NOT SOLD SEPARAT

WASHER - lock, thru bolt (1/4")

2шт.

28

NSS

NOT SOLD SEPARAT

SCREW - round head, ground (1/4" - 28 NF x 5/16")

1шт.

29

NSS

NOT SOLD SEPARAT

WASHER - lock, ground screw (1/4")

1шт.

30

A25620

SPARE PART HEAD ASSEMBLY - commutator end

1шт.

31

A25623

BUSHING

BEARING - absorbent bronze

1шт.

32

NSS

NOT SOLD SEPARAT

WICK - felt

1шт.

33

NSS

NOT SOLD SEPARAT

COVER - bearing, commutator end

1шт.

34

NSS

NOT SOLD SEPARAT

RETAINER - oil

1шт.

35

NSS

NOT SOLD SEPARAT

PIN - dowel

1шт.

36

A25624

OILER

1шт.

37

A25619

SPARE PART NUT - armature shaft, drive end

1шт.

38

A25625

ARMATURE

ARMATURE ASSEMBLY

1шт.

39

A25626

RING

SNAP RING

1шт.

40

NSS

NOT SOLD SEPARAT

RETAINER - armature shaft, drive end

1шт.

41

NSS

NOT SOLD SEPARAT

FAN - ventilation

1шт.

42

14505

SPACER - armature shaft, drive end

1шт.

43

NSS

NOT SOLD SEPARAT

PULLEY - drive

1шт.

44

126-11

WOODRUFF KEY,#5, 1/8" x 5/8"

WOODRUFF KEY, #5, 1/8" x 5/8"

1шт.

45

A25630

WASHER - lock, shaft (Drive end)

1шт.

A25616

SPARE PART HEAD ASSEMBLY - drive end

1шт.

46

A25632

RETAINER - felt washer, inner

1шт.

47

A25631

RETAINER - bearing

1шт.

48

A25633

RETAINER - felt washer, outer

1шт.

49

A25617

SPARE PART WASHER - felt

2шт.

50

NSS

NOT SOLD SEPARAT

SCREW - round head, bearing retainer (No. 10 - 32 NF x 1/2")

3шт.

51

NSS

NOT SOLD SEPARAT

WASHER - lock, bearing retainer screw (No. 10)

3шт.

52

A25634

SPARE PART GASKET - bearing retainer

1шт.

53

A25618

BALL BEARING,0.6693" ID x 1.5748" OD x 0.4724"

BEARING - ball, sealed

1шт.

54

NSS

NOT SOLD SEPARAT

HEAD - drive end

1шт.

55

NSS

NOT SOLD SEPARAT

PIN - dowel

1шт.
