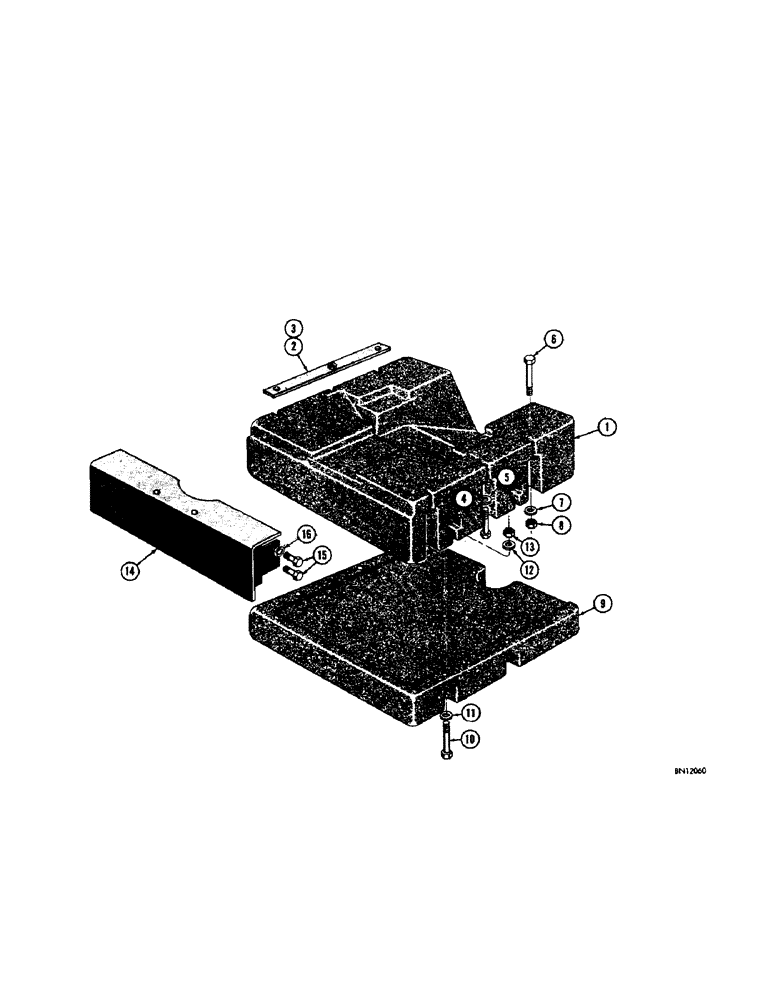

Запчасти Case 310F (232[1]) - FRONT COUNTERWEIGHTS FOR BACKHOE (05) - UPPERSTRUCTURE CHASSIS

1

D26394

COUNTERWEIGHT - front, upper

1шт.

2

D31614

STRIP - reinforcing, R.H.

1шт.

3

D31613

STRIP - reinforcing, L.H.

1шт.

4

13-848

BOLT,Hex, 1/2" - 13 x 3", Gr 5

HHCS - 1/2" - 13 NC x 3"

2шт.

5

D26752

WASHER

- special (17/32" I.D. x 1-3/8" O.D. x 1/4" thick)

2шт.

6

13-856

BOLT,Hex, 1/2" - 13 x 3-1/2", Gr 5

4шт.

7

D26752

WASHER

- special (17/32" I.D. x 1-3/8" O.D. x 1/4" thick)

4шт.

8

131-354

LOCK NUT,1/2"-13, GA

NUT - lock (1/2" - 13 NC)

4шт.

9

D26405

WEIGHT

COUNTERWEIGHT - front, lower

1шт.

10

13-856

BOLT,Hex, 1/2" - 13 x 3-1/2", Gr 5

4шт.

11

95-8

WASHER,1/2"

- standard wrot (9/16" I.D. x 1-3/8" O.D. x 7/64" thick) 1/2"

4шт.

12

D26752

WASHER

- special (17/32" I.D. x 1-3/8" O.D. x 1/4" thick)

4шт.

13

131-354

LOCK NUT,1/2"-13, GA

NUT - lock (1/2" - 13 NC)

4шт.

14

D26239

BUMPER - front

1шт.

15

13-828

BOLT,Hex, 1/2" - 13 x 1-3/4", Gr 5

HHCS - 1/2" - 13 NC x 1-3/4"

4шт.

16

92-8

LOCK WASHER,1/2"

4шт.
