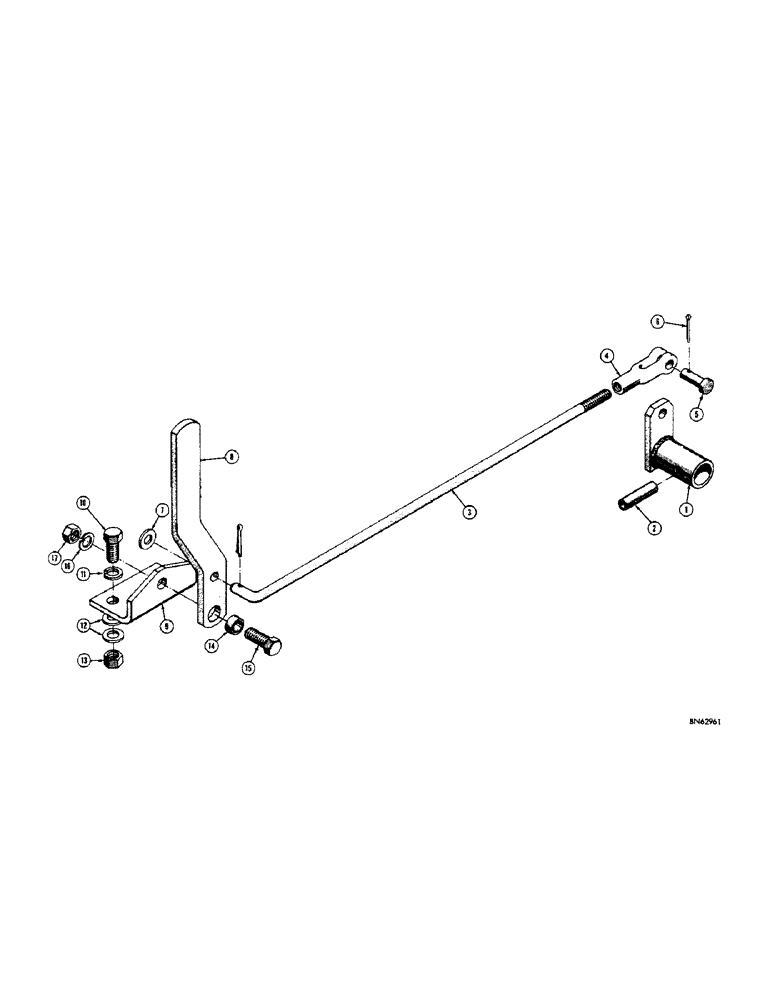

Запчасти Case 310F (230) - P.T.O. COCKPIT CONTROL (05) - UPPERSTRUCTURE CHASSIS

1

D29038

LEVER - throwout, P.T.O.

1шт.

2

138-171

LOCK PIN,3/8" x 1 1/8", Slotted

PIN, 3/8" x 1 1/8", Slotted

1шт.

3

D29042

ROD - throwout

1шт.

4

213-3

ADJUSTABLE CLEVIS,5/16"-24

YOKE - throwout rod

1шт.

5

141-3

CLEVIS PIN,5/16" x .940"

PIN, CLEVIS, , Yoke 5/16" x .940"

1шт.

6

132-25

COTTER PIN,3/32" x 5/8"

Pin, Split (Cotter), 3/32" x 5/8"

2шт.

7

195-21

WASHER,5/16"

plain (11/32" I.D. x 11/16" O.D. x 1/16" thk) 5/16"

1шт.

8

D29043

LEVER - control

1шт.

9

D29044

BRACKET - control lever

1шт.

10

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

2шт.

11

92-6

LOCK WASHER,3/8"

2шт.

12

195-25

WASHER,3/8"

- plain (13/32" I.D. x 13/16" O.D. x 1/16" thick)

2шт.

13

25-106

NUT,3/8"-16, G5

- hex. (3/8" - 16 NC)

2шт.

14

D29040

BUSHING

- control lever

1шт.

15

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

1шт.

16

92-6

LOCK WASHER,3/8"

1шт.

17

25-106

NUT,3/8"-16, G5

- hex. (3/8" - 16 NC)

1шт.
