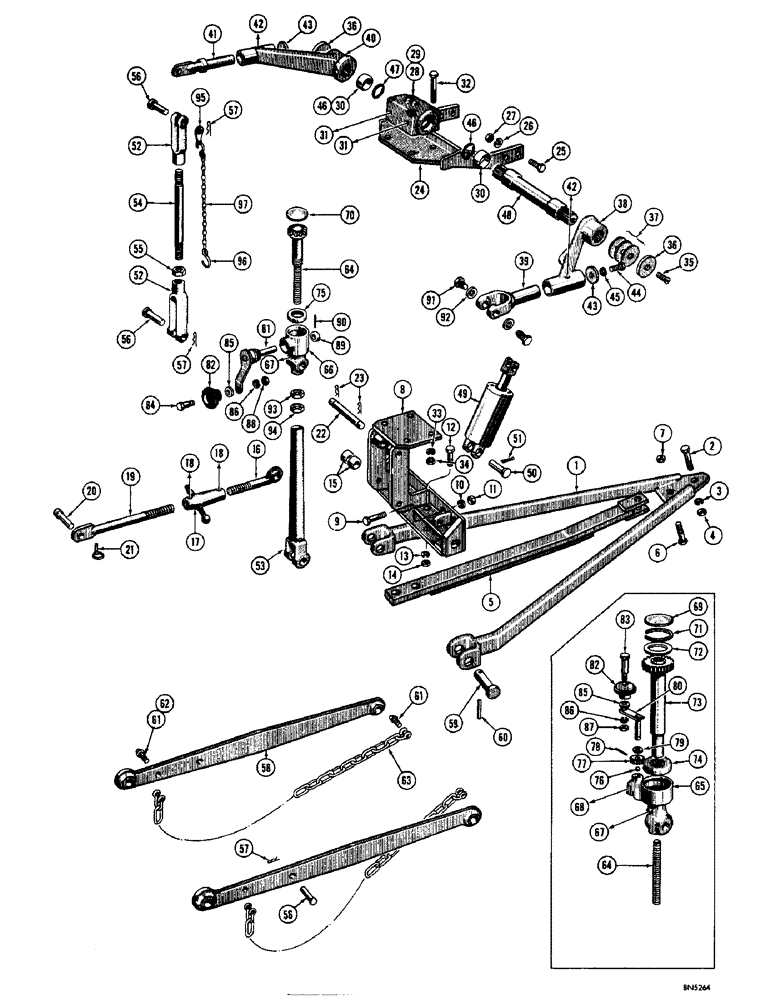

Запчасти Case 310F (212) - THREE POINT HITCH, DRAWBAR AND MOUNTING PARTS (05) - UPPERSTRUCTURE CHASSIS

1

D20635

ARM - mounting, drawbar

1шт.

2

14-1656

HHCS - 1" - 14 NF x 3-1/2"

1шт.

3

92-16

LOCK WASHER,1"

WASHER, LOCK, 1"

1шт.

4

25-1116

NUT,1"-14, G5

- hex. (1" - 14 NF)

1шт.

5

39778

SCREW

DRAWBAR - three point hitch

1шт.

6

14-1664

BOLT,Hex, 1" - 14 x 4", Gr 5

HHCS - 1" - 14 NF x 4"

1шт.

7

131-370

LOCK NUT

NUT - lock (1" - 14 NF)

1шт.

8

D20636

BRACKET - mounting, three point hitch

1шт.

9

14-1028

BOLT,Hex, 5/8" - 18 x 1-3/4", Gr 5

4шт.

10

92-10

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

4шт.

11

25-1110

NUT,5/8"-18, G5

- hex. (5/8" - 18 NF)

4шт.

12

13-872

BOLT,Hex, 1/2" - 13 x 4-1/2", Gr 5

2шт.

13

92-8

LOCK WASHER,1/2"

2шт.

14

25-108

NUT,1/2"-13, G5

- hex. (1/2" - 13 NC)

2шт.

15

D20483

SPACER - mounting, front depth adjusting screw

2шт.

16

A7240

SCREW - depth adjusting, front (L.H. thread), turnbuckle

1шт.

17

A7821

TURNBUCKLE - depth adjusting screw

1шт.

18

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - grease, str. (1/8" NPT), turnbuckle

2шт.

19

D20622

LINK - depth adjusting, rear (R.H. thread), turnbuckle

1шт.

20

V14209

X

PIN - mast, turnbuckle

1шт.

21

SV2433

X

PIN - keeper, mast pin, turnbuckle

1шт.

22

39798

BRACKET

PIN - depth adjusting link, turnbuckle

1шт.

23

VC1419

X

PIN - hair pin cotter, turnbuckle

2шт.

24

D29784

STRAP - hanger, rockshaft and housing

1шт.

25

14-1244

BOLT,Hex, 3/4" - 16 x 2-3/4", Gr 5

HHCS - 3/4" - 16 NF x 2-3/4", rockshaft and housing

4шт.

26

92-12

LOCK WASHER,3/4"

WASHER, LOCK, , Rockshaft and housing 3/4"

4шт.

27

25-1112

NUT,3/4"-16, G5

- hex. (3/4" - 16 NF), rockshaft and housing

4шт.

28

A20907

X

HOUSING - rockshaft (Used up to three point hitch SN 4085508)

1шт.

29

D33977

HOUSING

- rockshaft (Used on three point hitch SN 4085508 and after)

1шт.

30

A23422

BUSHING

- D33977 rockshaft housing only

2шт.

31

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - grease, str. (1/8" NPT), rockshaft and housing

2шт.

32

14-1080

BOLT,Hex, 5/8" - 18 x 5", Gr 5

HHCS - 5/8" - 18 NF x 5", rockshaft and housing

4шт.

33

92-10

LOCK WASHER,5/8"

WASHER, LOCK, , Rockshaft and housing 5/8"

4шт.

34

25-1110

NUT,5/8"-18, G5

- hex. (5/8" - 18 NF), rockshaft and housing

4шт.

35

73-616

SCREW,Slotted Flat Hd, 3/8"-16 x 1"

- machine, flat head (3/8" - 16 NF x 1"), rockshaft and housing

2шт.

36

O9239AB

PLATE - lock, lift arm, rockshaft and housing

2шт.

37

O9238AB

SHIM - rockshaft lock plate, L.H., housing

3шт.

38

D20612

ARM - rockshaft lift, R.H., housing

1шт.

39

G16754

SWIVEL - lift arm, R.H. (Used up to three point hitch SN 4085508) When stock is exhausted, order A35019, rockshaft and housing

1шт.

A35019

END

SWIVEL - lift arm, R.H. (Used on three point hitch SN 4085508 and after), rockshaft and housing

1шт.

40

D20614

ARM ASSY.

ARM - rockshaft lift, L.H., housing

1шт.

41

G16755

SWIVEL - L.H. lift arm, rockshaft and housing

1шт.

42

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - grease, str. (1/8" NPT), rockshaft and housing

2шт.

43

G16747

WASHER - retainer, lift arm swivel, rockshaft and housing

2шт.

44

13-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

Rockshaft and housing Hex, 3/8"-16 x 3/4", G5, Full Thd

2шт.

45

92-6

LOCK WASHER,3/8"

rockshaft and housing 3/8"

2шт.

46

O9237AB

X

SPACER - rockshaft (A20911 rockshaft only), housing

2шт.

47

A20908

SEAL - "O" ring, rockshaft (A29907 housing only)

2шт.

A23423

SEAL

- "O" ring, rockshaft (D33977 housing only)

2шт.

48

A20911

ROCKSHAFT - three point hitch (A29907 housing only)

1шт.

A23419

ROCKSHAFT - three point hitch (D33977 housing only)

1шт.

49

A8282

CYLINDER - hydraulic, three point hitch (See Figure 230 for breakdown), rockshaft and housing

1шт.

50

O8350AB

PIN - mounting, cylinder, rockshaft and housing

2шт.

51

132-150

COTTER PIN,1/4" x 1 1/2"

Pin, Split (Cotter), , Rockshaft and housing 1/4" x 1 1/2"

2шт.

52

213-8

CLEVIS,3/4"-16

- lift link rod, L.H. upper and lower, rockshaft and housing

2шт.

53

A35195

YOKE

CLEVIS - leveling, rockshaft and housing

1шт.

54

O9213AB

X

ROD - lift link, L.H., rockshaft and housing

1шт.

55

25-1112

NUT,3/4"-16, G5

- hex. (3/4" - 16 NF), rockshaft and housing

1шт.

56

141-8

CLEVIS PIN,3/4" x 1.910", HDN

PIN - 213-8 clevis, rockshaft and housing

2шт.

O9213AB

X

PIN - A35195 clevis, rockshaft and housing

1шт.

57

VC1419

X

PIN - hair pin, cotter, rockshaft and housing

3шт.

58

D20641

ARM - draft (Original equipment, use 1- D28996 and 1 - D28997), rockshaft and housing

2шт.

D28996

ARM - draft (Replacement), rockshaft and housing

2шт.

59

D20629

PIN - mounting, draft arm, rockshaft and housing

2шт.

60

138-141

LOCK PIN,1/4" x 1 7/8", Slotted

PIN, , Rockshaft and housing 1/4" x 1 7/8", Slotted

2шт.

61

D21858

SHACKLE - screw (4 used with original equipment draft arms; 2 used with replacement draft arms) See D28997, rockshaft and housing

2-4шт.

62

D28997

SHACKLE - screw (Used with replacement draft arms only) See D21858, rockshaft and housing

2шт.

63

D21389

CHAIN - mounting bracket to draft arm, rockshaft and housing

2шт.

64

D20648

ROD - leveling, R.H. (G1044 housing), rockshaft

1шт.

A35021

ARM

ROD - leveling, with gear (6163A housing), rockshaft

1шт.

65

G1044

HOUSING - gear, adjusting screw, rockshaft

1шт.

66

6163A

X

HOUSING - gear, adjusting screw, rockshaft

1шт.

67

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - grease, str. (1/8" NPT), rockshaft and housing

1шт.

68

219-30

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - grease, str. (Vented) 1/8" NPT, rockshaft and housing

1шт.

69

41-40

PLUG,Exp, 2 1/2"

- Welch, 2-1/2" dia. (G1044 housing), rockshaft

1шт.

70

41-30

PLUG

- Welch, 1-7/8" dia. (6163A housing), rockshaft

1шт.

71

O8582AB

X

SNAP RING - retaining, leveling screw gear, rockshaft and housing

1шт.

72

T25645

WASHER - leveling screw gear (1-15/16" I.D. x 2-1/2" O.D. x 14 gauge), rockshaft and housing

1шт.

73

G13390

TUBE

GEAR AND TUBE - leveling screw, rockshaft and housing

1шт.

74

G10489

THRUST BEARING

BEARING - thrust, leveling screw (G1044 housing), rockshaft

1шт.

75

O9211AB

X

BEARING - thrust, leveling screw (6163A housing), rockshaft

1шт.

76

211-7

BALL,1/4" Dia

- crank bearing, rockshaft and housing 1/4" Dia

1шт.

77

G10464

GEAR - crank, adjusting screw, rockshaft and housing

1шт.

78

138-75

LOCK PIN,5/32" x 7/8", Slotted

PIN, , Crank gear, rockshaft & housing 5/32" x 7/8", Slotted

1шт.

79

O5087A

X

WASHER - thrust, crank gear, rockshaft and housing

1шт.

80

G13119

CRANK - adjusting screw (G1044 housing), rockshaft

1шт.

81

A4212AA

CRANK - adjusting screw, with gear (6163A housing), rockshaft

1шт.

82

O4995AB

X

KNOB - adjusting screw crank (G1044 housing), rockshaft

1шт.

83

VT2964

BOLT - mounting, knob (G1044 housing), rockshaft

1шт.

84

O9208AB

X

BOLT - mounting, knob (6163A housing), rockshaft

1шт.

85

G10488

WASHER - thrust, adjusting crank, rockshaft and housing

1шт.

86

92-6

LOCK WASHER,3/8"

rockshaft and housing 3/8"

1шт.

87

25-106

NUT,3/8"-16, G5

- hex. (3/8" - 16 NC) G1044 housing, rockshaft

1шт.

88

25-116

NUT,Hex, 3/8"-24, G5

- hex. (3/8" - 24 NF) 6163A housing, rockshaft

1шт.

89

O9207AB

X

COLLAR - leveling screw crankshaft (6163A housing), rockshaft

1шт.

90

135-45

PIN - O9207AB collar (6163A housing), rockshaft

1шт.

91

O9214AB

X

PIN - pivot, adjusting screw, rockshaft and housing

2шт.

92

F20286

WASHER

- pivot pin (29/32" I.D. x 1-3/8" O.D.), rockshaft and housing

1шт.

93

O9212AB

X

NUT - brass (7/8" - 14 NF), rockshaft and housing

1шт.

94

25-1514

JAM NUT,Jam, 7/8"-14, G5

- jam (7/8" - 14 NF), rockshaft and housing

1шт.

95

O10953AB

RETAINER - chain, rockshaft and housing

1шт.

96

O9191AB

X

"S" HOOK - chain, rockshaft and housing

2шт.

97

D20505

CHAIN, rockshaft and housing

1шт.
