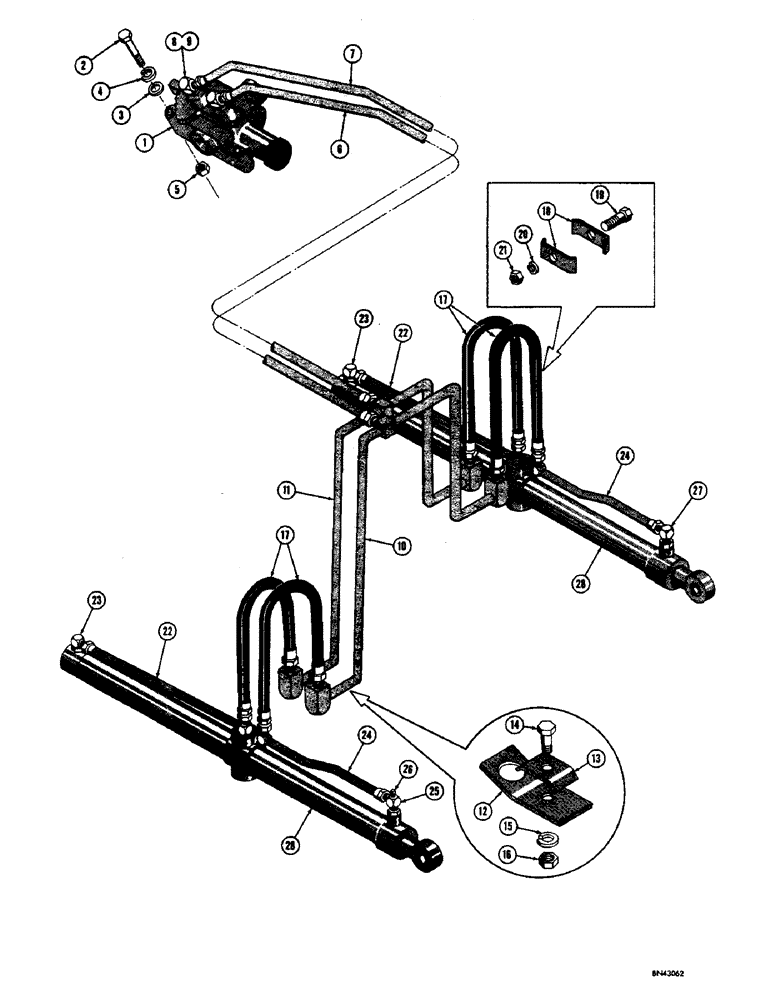

Запчасти Case 310F (186) - BULLDOZER AND MECHANICAL DOZER HYDRAULICS (05) - UPPERSTRUCTURE CHASSIS

1

D27049

VALVE - control (See Figure 150 for breakdown)

1шт.

2

13-636

BOLT,Hex, 3/8" - 16 x 2-1/4", Gr 5

3шт.

3

95-6

WASHER,3/8"

- standard wrot (7/16" I.D. x 1" O.D. x 5/64" thick)

3шт.

4

92-6

LOCK WASHER,3/8"

3шт.

5

25-106

NUT,3/8"-16, G5

- hex. (3/8" - 16 NC)

3шт.

6

D26741

TUBE - front control valve port to front manifold tube

1шт.

7

D26743

TUBE - rear control valve port to rear manifold tube

1шт.

8

218-5107

90 ELBOW,90 Degree Elbow, 7/8" - 14 Male JIC x 7/8" - 14 Male ORB

- male, 90 degrees (5/8" JIC x 5/8" JIC)

2шт.

9

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk, 218-5107 elbow

1шт.

10

D26745

TUBE - manifold, front

1шт.

11

D26748

TUBE - manifold, rear

1шт.

12

D26751

BRACKET - tube

2шт.

13

38331

PLATE

- clamp

2шт.

14

13-528

BOLT,Hex, 5/16" - 18 x 1-3/4", Gr 5

HHCS - 5/16" - 18 NC x 1-3/4"

2шт.

15

92-5

LOCK WASHER,5/16"

2шт.

16

9635082

NUT,5/16" - 18, Gr 5

- hex. (5/16" - 18 NC)

2шт.

17

D26792

HOSE - manifold tube to cylinder (1/2" I.D. x 7/8" O.D. x 26")

4шт.

18

31665

COLLAR CLAMP

PLATE - clamp

4шт.

19

13-528

BOLT,Hex, 5/16" - 18 x 1-3/4", Gr 5

HHCS - 5/16" - 18 NC x 1-3/4"

2шт.

20

92-5

LOCK WASHER,5/16"

2шт.

21

9635082

NUT,5/16" - 18, Gr 5

- hex. (5/16" - 18 NC)

2шт.

22

D27785

TUBE - hose to rear lift cylinder port

2шт.

23

218-5107

90 ELBOW,90 Degree Elbow, 7/8" - 14 Male JIC x 7/8" - 14 Male ORB

- male, 90 degrees (5/8" JIC x 5/8" JIC)

2шт.

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk, 218-5107 elbow (Not shown)

1шт.

24

D27783

TUBE - hose to front lift cylinder port

2шт.

25

D27782

X

ELBOW - special, R.H. front cylinder port (5/8" JIC male x 5/8" JIC male x 1/4" NPT female)

1шт.

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk, D27782 elbow (Not shown)

1шт.

26

221-2

DRAIN PLUG,Sq Hd, 1/4"-18 NPTF

PLUG - pipe, square head (1/4" NPT) D27782 elbow

1шт.

27

218-5107

90 ELBOW,90 Degree Elbow, 7/8" - 14 Male JIC x 7/8" - 14 Male ORB

- male, 90 degrees (Front port of L.H. lift cylinder) (5/8" JIC x 5/8" JIC)

1шт.

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk, 218-5107 elbow (Not shown)

1шт.

28

D27826

CYLINDER - dozer lift, hydraulic (See Figure 200 for breakdown)

2шт.
