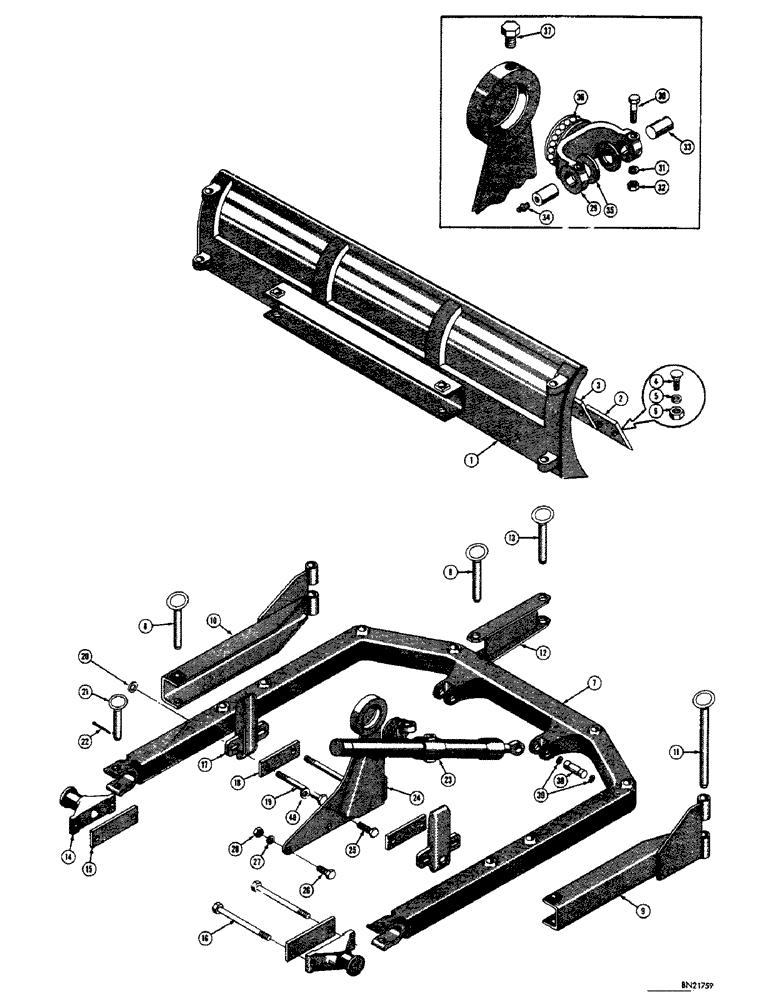

Запчасти Case 310F (184) - MECHANICAL ANGLING DOZER (05) - UPPERSTRUCTURE CHASSIS

1

16741

MOLDBOARD - mechanical angling dozer

1шт.

2

16187

GUARD

BLADE - cutting, end

2шт.

3

16792

EDGE, CUTTING

BLADE - cutting, center

1шт.

4

19-828

BOLT,1/2"-13 x 1 3/4", G5

- plow (1/2" - 13 NC x 1-3/4")

22шт.

5

92-8

LOCK WASHER,1/2"

22шт.

6

25-108

NUT,1/2"-13, G5

- hex. (1/2" - 13 NC)

22шт.

7

D27628

"C" FRAME - mechanical angling dozer

1шт.

8

16720

SHROUD

PIN - moldboard and stabilizer arms to "C" frame

4шт.

9

16757

FITTING

ARM - stabilizer, R.H.

1шт.

10

16758

ARM - stabilizer, L.H.

1шт.

11

16569

BACK PLATE

PIN - stabilizer, Serial Range: arm-moldboard

2шт.

12

16798

ARM - support, angling

1шт.

13

16720

SHROUD

PIN - mounting, support arm

1шт.

14

D30588

BRACKET - pivot, dozer attaching

2шт.

15

D30586

SPACER - pivot bracket

2шт.

16

16-12192

BOLT (MACHINE)

HHCS - 3/4" - 16 NF x 12"

4шт.

17

33961

CONNECTING LINK

PLATE - rub

2шт.

18

D30586

SPACER - rub plate

2шт.

19

16-12216

X

HHCS - 3/4" - 16 NF x 13-1/2"

4шт.

20

95-12

WASHER,3/4"

- flat () 3/4"

4шт.

21

38679

PIN - mounting, "C" frame to pivot bracket

2шт.

22

132-154

COTTER PIN,1/4" x 2"

Pin, Split (Cotter), 1/4" x 2"

2шт.

23

D27826

CYLINDER - dozer lift, hydraulic (Parts list, Figure 200)

2шт.

24

D24502

BRACKET - cylinder, R.H.

1шт.

24

D24501

BRACKET - cylinder, L.H.

1шт.

25

13-1036

BOLT,Hex, 5/8" - 11 x 2-1/4", Gr 5

2шт.

26

13-1024

BOLT,Hex, 5/8" - 11 x 1-1/2", Gr 5, Full Thd

8шт.

27

92-10

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

10шт.

28

25-1010

NUT,5/8"-11, G5

10шт.

29

D24497

TRUNNION

- inner race

2шт.

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - grease, straight (1/8" NPT) Not illustrated

2шт.

30

13-648

BOLT,Hex, 3/8" - 16 x 3", Gr 5

HHCS - 3/8" - 16 NC x 3"

4шт.

31

92-6

LOCK WASHER,3/8"

4шт.

32

25-106

NUT,3/8"-16, G5

- hex. (3/8" - 16 NC)

4шт.

33

D24508

PIN,31.74mm OD x 50.8mm L

- mounting, Serial Range: cylinder-trunnion

4шт.

34

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - grease, straight (1/8" NPT)

2шт.

35

D24516

WASHER

- thrust (1-9/32" I.D. x 2-1/4" O.D. x 3/16" thick)

4шт.

36

211-17

BALL,3/4" Dia

- steel (.) 3/4" Dia

38шт.

37

D24506

PLUG

- special (7/8" - 14 NF)

2шт.

38

D30609

PIN,25.4mm OD x 95.25mm L

- lift cylinder to "C" frame

2шт.

39

D25277

SNAP RING,23.5mm ID x 2.62mm Thk

RING - retaining, D30609 pin

4шт.

40

95-10

WASHER,5/8"

- standard wrot (11/16" I.D. x 1-3/4" x 9/64" thick) R.H. cylinder bracket upper mounting bolts (Diesel models only)

2шт.
