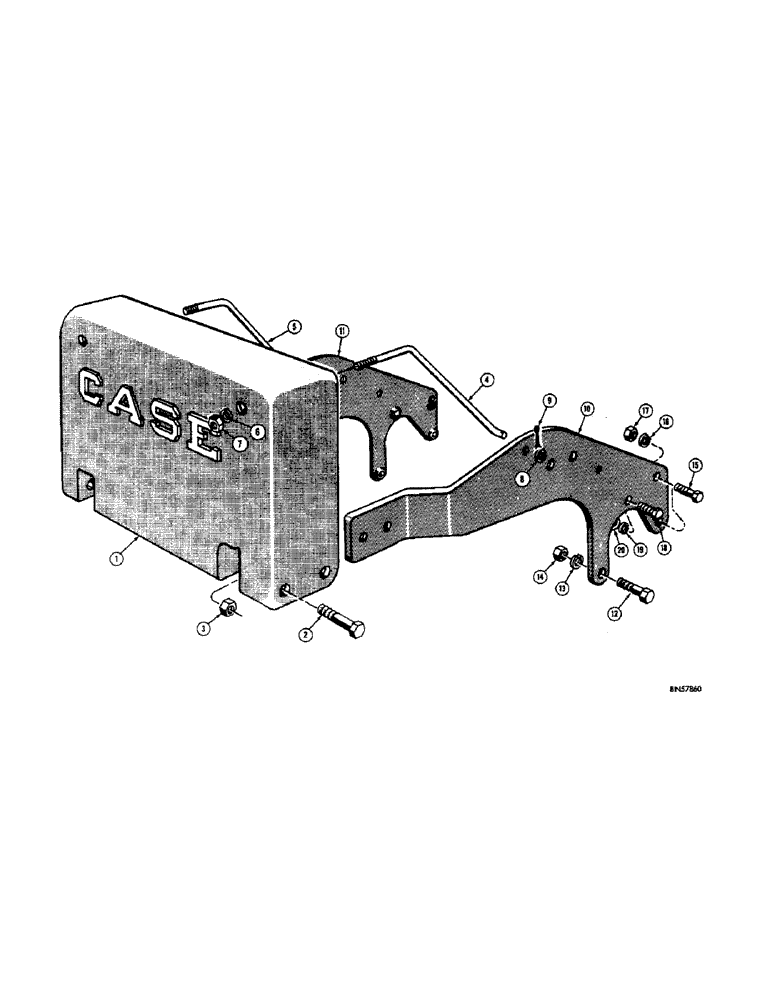

Запчасти Case 310F (180) - REAR COUNTERWEIGHT (WITH P.T.O. AND BELT PULLEY) (05) - UPPERSTRUCTURE CHASSIS

1

31112

O-RING

COUNTERWEIGHT - rear, 1400 lb.

1шт.

2

13-1688

BOLT,Hex, 1" - 8 x 5-1/2", Gr 5

4шт.

3

230-41116

NUT,1"-8, GA

NUT - lock (1" - 8 NC)

4шт.

4

D21392

ROD - stabilizer, R.H.

1шт.

5

D21393

ROD - stabilizer, L.H.

1шт.

6

195-41

WASHER,5/8"

2шт.

7

131-54

NUT - lock (5/8" - 18 NF)

2шт.

8

95-10

WASHER,5/8"

- standard wrot (11/16" I.D. x 1-3/4" O.D. x 9/64" thick)

2шт.

9

132-91

COTTER PIN,3/16" x 1"

Pin, Split (Cotter), 3/16" x 1"

2шт.

10

D29766

ARM - counterweight support, R.H.

1шт.

11

D29767

ARM - counterweight support, L.H.

1шт.

12

13-1248

BOLT,Hex, 3/4" - 10 x 3", Gr 5

2шт.

13

92-12

LOCK WASHER,3/4"

WASHER, LOCK, 3/4"

2шт.

14

25-1012

NUT,3/4"-10, G5

2шт.

15

13-1244

BOLT,Hex, 3/4" - 10 x 2-3/4", Gr 5

4шт.

16

92-12

LOCK WASHER,3/4"

WASHER, LOCK, 3/4"

4шт.

17

25-1012

NUT,3/4"-10, G5

4шт.

18

13-844

BOLT,Hex, 1/2" - 13 x 2-3/4", Gr 5

Hex, 1/2"-13 x 2 3/4", G5

2шт.

19

92-8

LOCK WASHER,1/2"

2шт.

20

25-108

NUT,1/2"-13, G5

- hex. (1/2" - 13 NC)

2шт.
