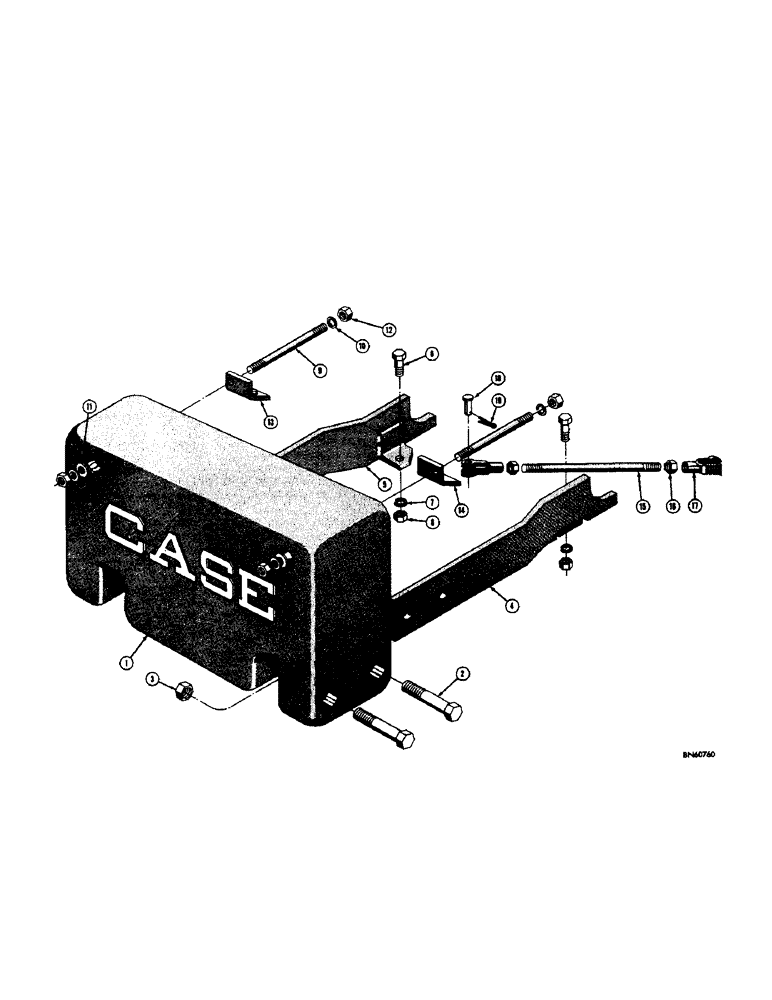

Запчасти Case 310F (178[1]) - REAR COUNTERWEIGHT (900 LB.) (05) - UPPERSTRUCTURE CHASSIS

1

32105

COUNTERWEIGHT - rear, 900 lb.

1шт.

2

14-1680

CAPSCREW,Hex, 1" - 14 x 5", Gr 5

HHCS - 1" - 14 NF x 5"

4шт.

3

131-370

LOCK NUT

NUT - lock (1" - 14 NF)

4шт.

4

33972

PISTON ROD

ARM - support, R.H. (42" gauge tractor)

1шт.

5

33973

ARM - support, L.H. (42" gauge tractor)

1шт.

6

14-1024

BOLT,Hex, 5/8" - 18 x 1-1/2", Gr 5

2шт.

7

92-10

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

2шт.

8

25-1110

NUT,5/8"-18, G5

- hex. (5/8" - 18 NF)

2шт.

9

32169

GEAR

ROD - holding (42" gauge tractor)

2шт.

10

92-8

LOCK WASHER,1/2"

4шт.

11

195-33

WASHER,1/2"

- plain (17/32" I.D. x 1-1/16" O.D. x 3/32" thick)

2шт.

12

25-118

NUT,1/2"-20, G5

- hex. (1/2" - 20 NF)

4шт.

13

34127

BEAM

STRAP - attaching, L.H. (42" gauge tractor)

1шт.

14

34126

KEY

STRAP - attaching, R.H. (42" gauge tractor)

1шт.

15

NLS

NO LONGER SERVICED

ROD - anchor (42" gauge tractor)

2шт.

16

25-118

NUT,1/2"-20, G5

- hex. (1/2" - 20 NF)

4шт.

17

213-6

ADJUSTABLE CLEVIS,1/2"-20 x 3"

END - yoke, adjustable

4шт.

18

141-6

CLEVIS PIN,1/2" x 1.360"

PIN - yoke

4шт.

19

132-48

COTTER PIN,1/8" x 1"

Pin, Split (Cotter), 1/8" x 1"

4шт.
