Запчасти Case 310F (176) - BULL DOZER BLADE (MOUNTS ON LOADER ARMS) (05) - UPPERSTRUCTURE CHASSIS

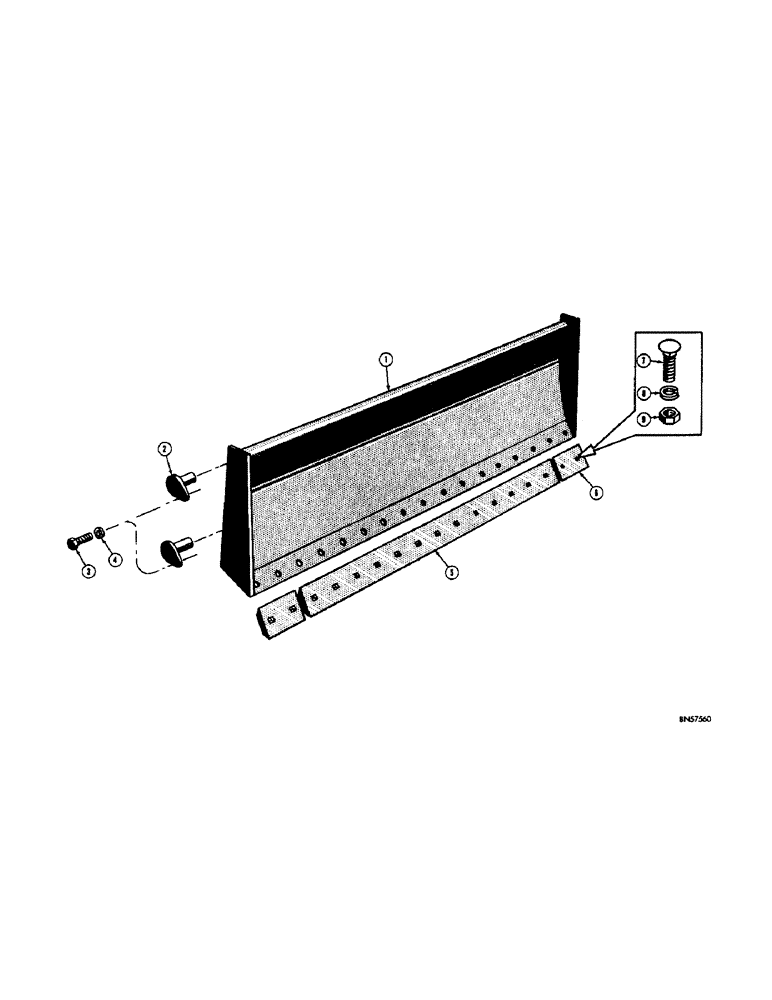

Схема запчастей Case 310F - (176) - BULL DOZER BLADE (MOUNTS ON LOADER ARMS) (05) - UPPERSTRUCTURE CHASSIS

Артикул

Название

Примечание

Количество

D10356

BLADE - bulldozer (Machinery item)

1шт.

1

NSS

NOT SOLD SEPARAT

MOLDBOARD - bulldozer

1шт.

2

31109

PIN ASSY.

PIN - mounting, moldboard to main arm and dump arm

4шт.

3

14-816

BOLT,Hex, 1/2" - 20 x 1", Gr 5

HHCS - 1/2" x 20 NF x 1"

4шт.

4

193-32

LOCK WASHER,Int Tooth, 1/2"

WASHER, LOCK, Int Tooth, 1/2"

4шт.

D23740

BUSHING

- lockhead pin (Not shown)

4шт.

5

NLS

NO LONGER SERVICED

BLADE - cutting, center

1шт.

6

38150

EDGE

BLADE - cutting, end

2шт.

7

19-828

BOLT,1/2"-13 x 1 3/4", G5

- plow, #3 head (1/2" - 13 NC x 1-3/4")

18шт.

8

92-8

LOCK WASHER,1/2"

18шт.

9

25-108

NUT,1/2"-13, G5

- hex. (1/2" - 13 NC)

18шт.

Выбрано товаров: 11
