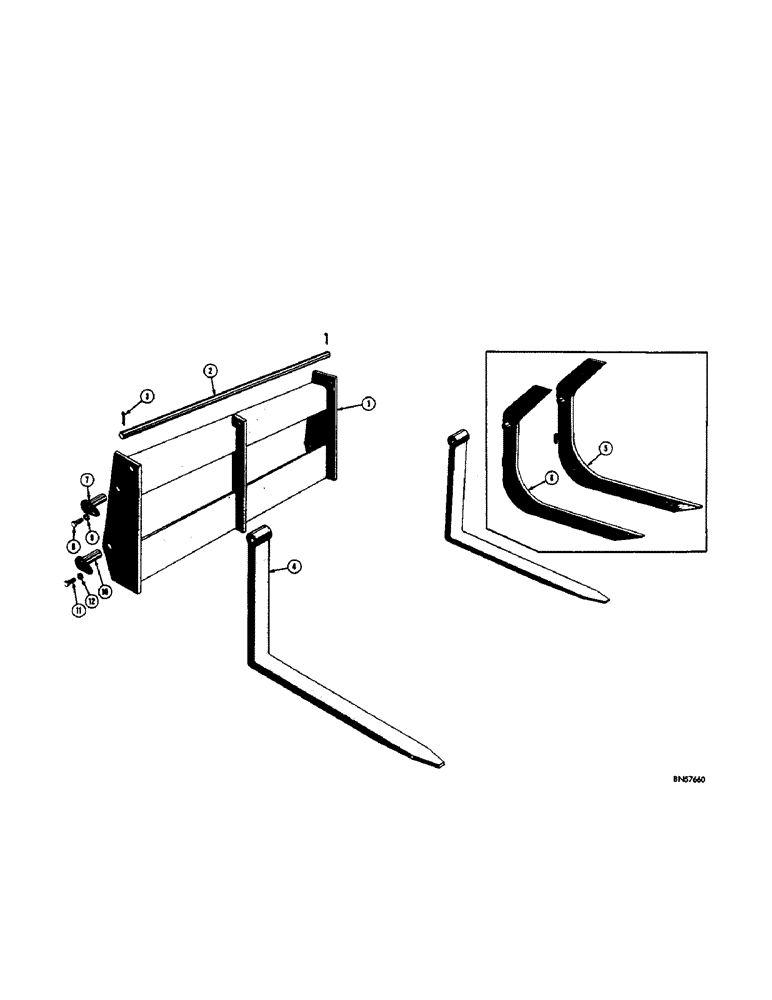

Запчасти Case 310F (176[1]) - LOGGING AND PALLET FORKS (05) - UPPERSTRUCTURE CHASSIS

1

D21800

SUPPORT - fork

1шт.

2

D21799

SHAFT - fork support

1шт.

3

132-154

COTTER PIN,1/4" x 2"

Pin, Split (Cotter), 1/4" x 2"

2шт.

4

D21646

FORK - pallet lift

2шт.

5

D21947

FORK - logging, L.H.

1шт.

6

D21948

FORK - logging, R.H.

1шт.

7

38549

SHIM

PIN - dump arm to fork support

2шт.

8

14-816

BOLT,Hex, 1/2" - 20 x 1", Gr 5

HHCS - 1/2" - 20 NF x 1"

2шт.

9

193-32

LOCK WASHER,Int Tooth, 1/2"

WASHER, LOCK, Int Tooth, 1/2"

2шт.

D23740

BUSHING

- lockhead pin (Not shown)

2шт.

10

31109

PIN ASSY.

PIN - main arm to fork support

2шт.

11

14-816

BOLT,Hex, 1/2" - 20 x 1", Gr 5

HHCS - 1/2" - 20 NF x 1"

2шт.

12

193-32

LOCK WASHER,Int Tooth, 1/2"

WASHER, LOCK, Int Tooth, 1/2"

2шт.

D23740

BUSHING

- lockhead pin (Not shown)

2шт.
